Description
10CBM TRANSIT MIXER TRUCK Function and Introduction:
10CBM TRANSIT MIXER TRUCK consists of a truck chassis and a special device for mixing and transporting concrete. During transportation, the mixing drum will always be kept rotating to ensure that the transported concrete will not solidify. After transporting the concrete, the inside of the mixing drum is usually rinsed with water to prevent the hardened concrete from taking up space and increasing the volume of the mixing drum. During use, it is not only convenient to adjust its position, but also its frame can be turned over during welding. At the same time, during the reverse process, it can prevent workers from operating it incorrectly, causing the flipping motor to start and drive the frame to flip, threatening the safety of the workers, thereby increasing safety. Its working principle is to take out the power of the car chassis through the power take-off device, and drive the variable pump of the hydraulic system to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then drives the reducer, and the reducer drives the mixing device to mix the concrete. Concrete mixer trucks are widely used in engineering construction.
10CBM TRANSIT MIXER TRUCK is output by the full-power power take-off of the second-class chassis and transmitted to the hydraulic pump through the transmission shaft. The hydraulic pump generates hydraulic energy and transmits it to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and transmits it to the mixing tank through the speed reducer to reduce the speed and increase the torque. By adjusting the servo handle angle of the hydraulic pump (double-acting variable), the forward and reverse rotation of the mixing tank and the speed can be achieved to realize the operations of concrete loading, mixing, stirring, and discharging.
10CBM TRANSIT MIXER TRUCK Specifications
|
10CBM TRANSIT MIXER TRUCK |
||
|
VEHICLE SPECIFICATION |
DESCRIPTION |
|
|
Truck Model 型号 |
ZZ1257N3847B1 ( Left Hand Driving Type) |
|
|
Type of Vehicle 方数 |
8-9m3 Concrete Mixer Truck |
|
|
Truck Brand 品牌 |
SINOTRUK—HOWO |
|
|
Fuel tanker capacity（L）油箱 |
400 |
|
|
The Total Mass 总重 |
25,000kg |
|
|
Dead Weight 净重 |
12500kg |
|
|
Max speed（km/h）最大时速 |
90 |
|
|
Color 颜色 |
Optional 可选 |
|
|
Chassis & Add Components |
||
|
Frame Details 罐体构造 |
parallel ladder with U-profiles and riveted cross members 平行梯U-型材和铆接的横梁 |
|
|
Dimension(Lx W xH)（unloaded）（mm）尺寸 |
8800*2550*3800 mm |
|
|
Approaching angle/Departure angle（°） 接近角/离去角 |
16/30 |
|
|
Overhang(front/rear) (mm)前悬/后悬 |
1500/1745 |
|
|
Wheel base (mm)轴距 |
3800+1350 |
|
|
Engine 发动机 |
||
|
Model 型号 |
WD615.87 |
|
|
Brand 品牌 |
SINOTRUK |
|
|
Power 马力 |
340HP |
|
|
Emission 排放 |
EURO II |
|
|
Displacement(L) 卸料 |
9.726 |
|
|
Type 类型 |
WP10.340E22 water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection 水冷、四冲程、6缸,涡轮增压,直接注入 |
|
|
Kind of Fuel 用油类型 |
Diesel 柴油 |
|
|
Fuel Consumption(L/100km) 油耗 |
25-30L/100km |
|
|
Clutch & Gear Box System |
||
|
Clutch 离合器 |
SINOTRUKΦ430mm diaphragm spring clutch |
|
|
Gear Box 变速箱 |
HW19710 10 forwards and 2 reverse. 10个前进挡，2个后退挡 |
|
|
Brand 品牌 |
SINOTRUK 重汽 |
|
|
Axles |
||
|
Front Axle Model 前轴 |
HF9 axle. Capacity: 9000kg |
|
|
Rear Axle 后轴 |
MCX16ZG axle. Capacity:2X 16000kg |
|
|
Ratio of rear axle 速比 |
3.93/4.42/4.80/5.73 |
|
|
Electrical System 电路系统 |
||
|
Battery 电池 |
2X12V/165Ah |
|
|
Alternator 电压 |
28V-1500kw |
|
|
Starter |
7.5Kw/24V |
|
|
Brake System 制动系统 |
||
|
Service brake 行车制动 |
Dual circuit compressed air brake 双回路气压制动 |
|
|
Parking brake 停车制动 |
spring energy, compressed air operating on rear wheels 弹簧储能，压缩空气后轮空气运行 |
|
|
Auxiliary brake 辅助刹车 |
Engine exhaust brake 发动机排气制动 |
|
|
Steering system 转向装置 |
||
|
Model 型号 |
ZF8118 |
|
|
Type |
hydraulic steering with power assistance 动力转向液压系统 |
|
|
Wheels & Tyres |
||
|
Type |
1200R20 |
|
|
Quantity |
10+1 spare |
|
|
Mixer Pump 搅拌泵 |
Eaton (USA Brand) 伊顿 |
|
|
Motor 马达 |
Eaton (USA Brand) 伊顿 |
|
|
Speed Reducer 减速机 |
Bonfiglioli (Italy Brand) 邦飞利 |
|
|
Cabin |
||
|
Type |
HW76 |
|
|
(single sleeping, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
（单卧铺，有空调），全钢前馈控制，55ºhydraulically倾斜到前面，2手臂雨刮系统，三种速度，夹层挡风玻璃与铸造的收音机天线，液压阻尼可调驾驶员座椅和可调刚性合作-driver座椅，带加热和通风系统，外遮阳板，可调节的屋顶皮瓣，立体声收音机/卡带录音机，安全带和可调式方向盘，气喇叭，采用4点支撑全浮式悬架和减震器
|
||
10CBM TRANSIT MIXER TRUCKhave both heavy duty and light duty, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

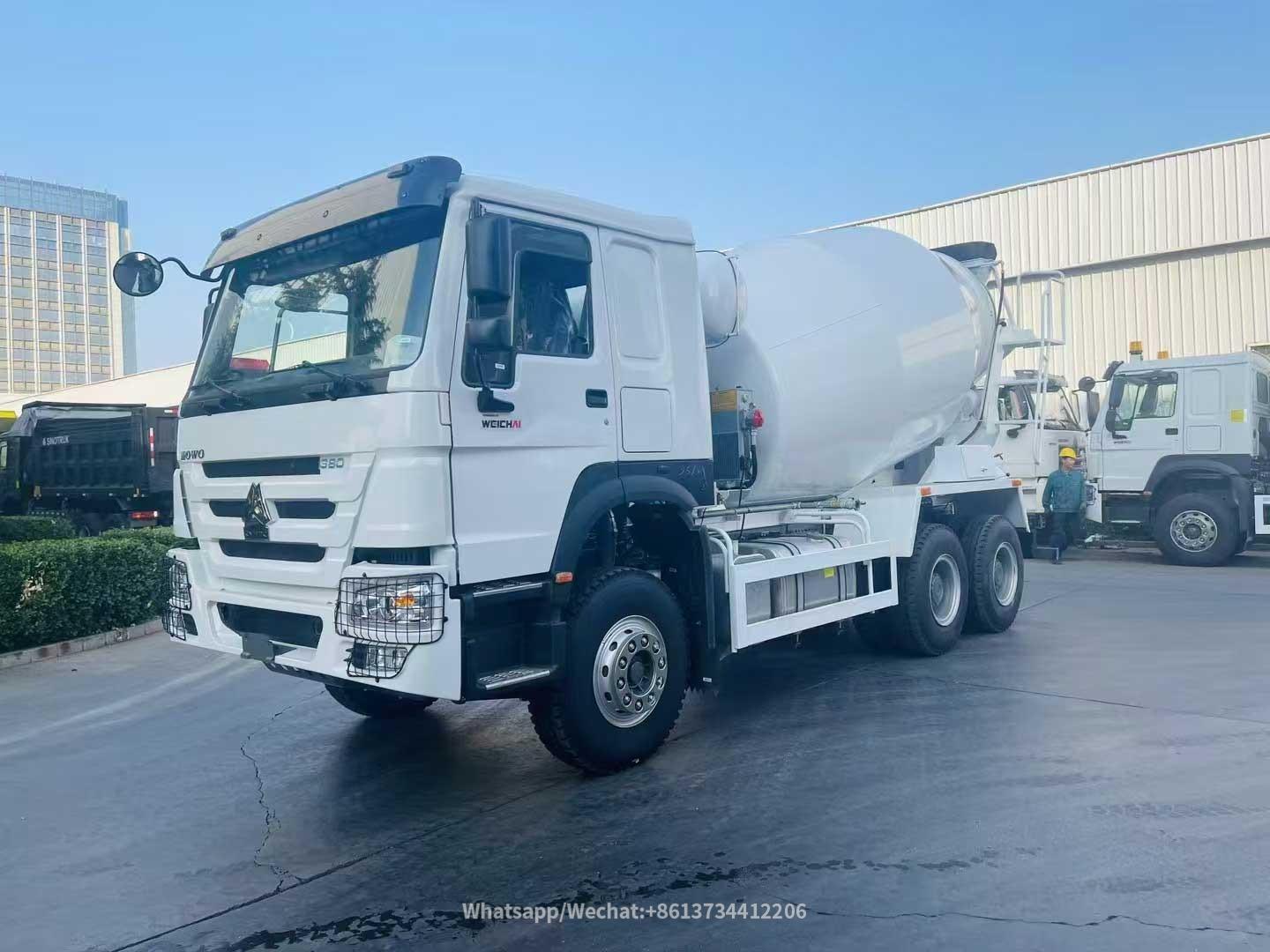

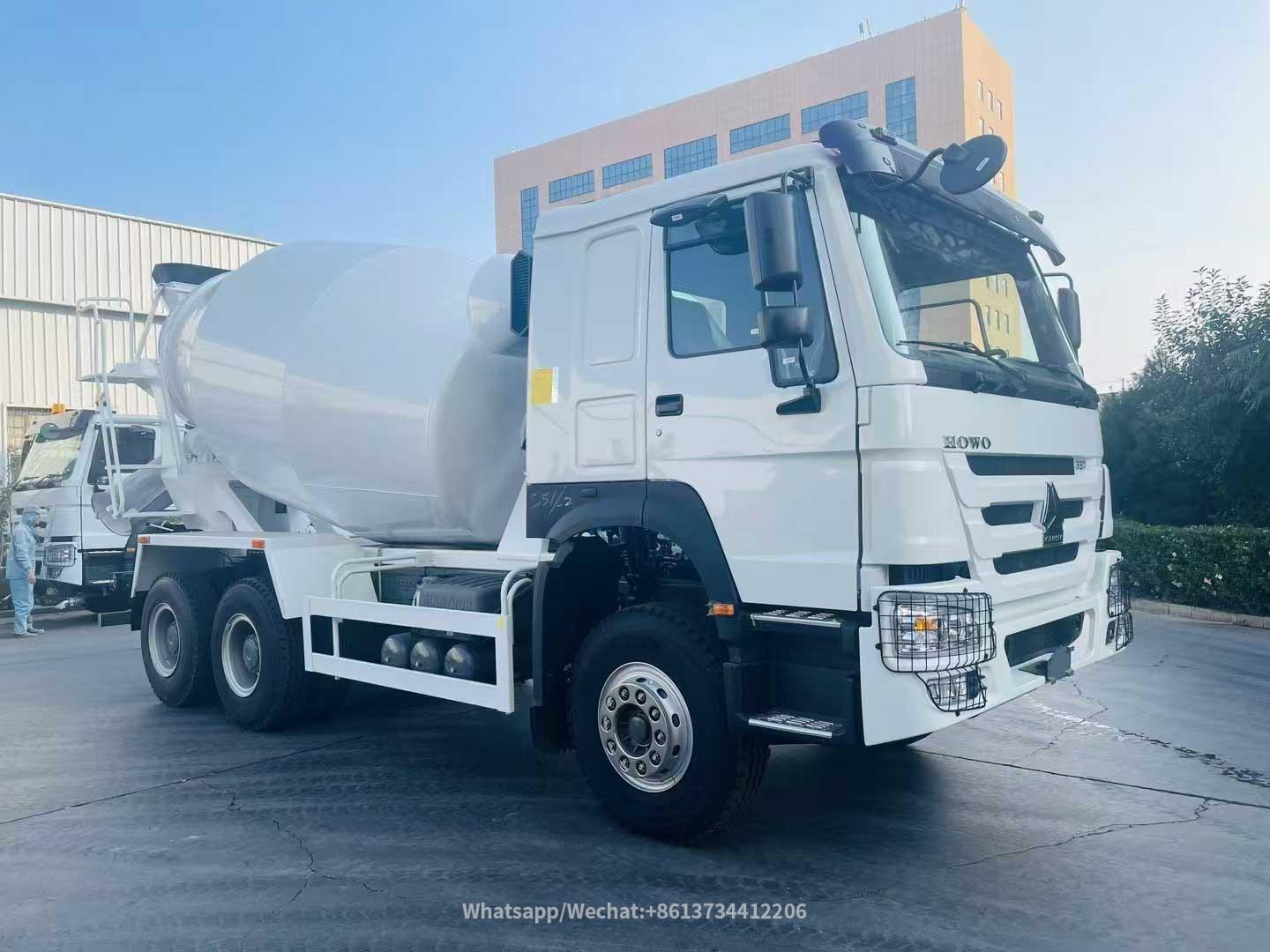

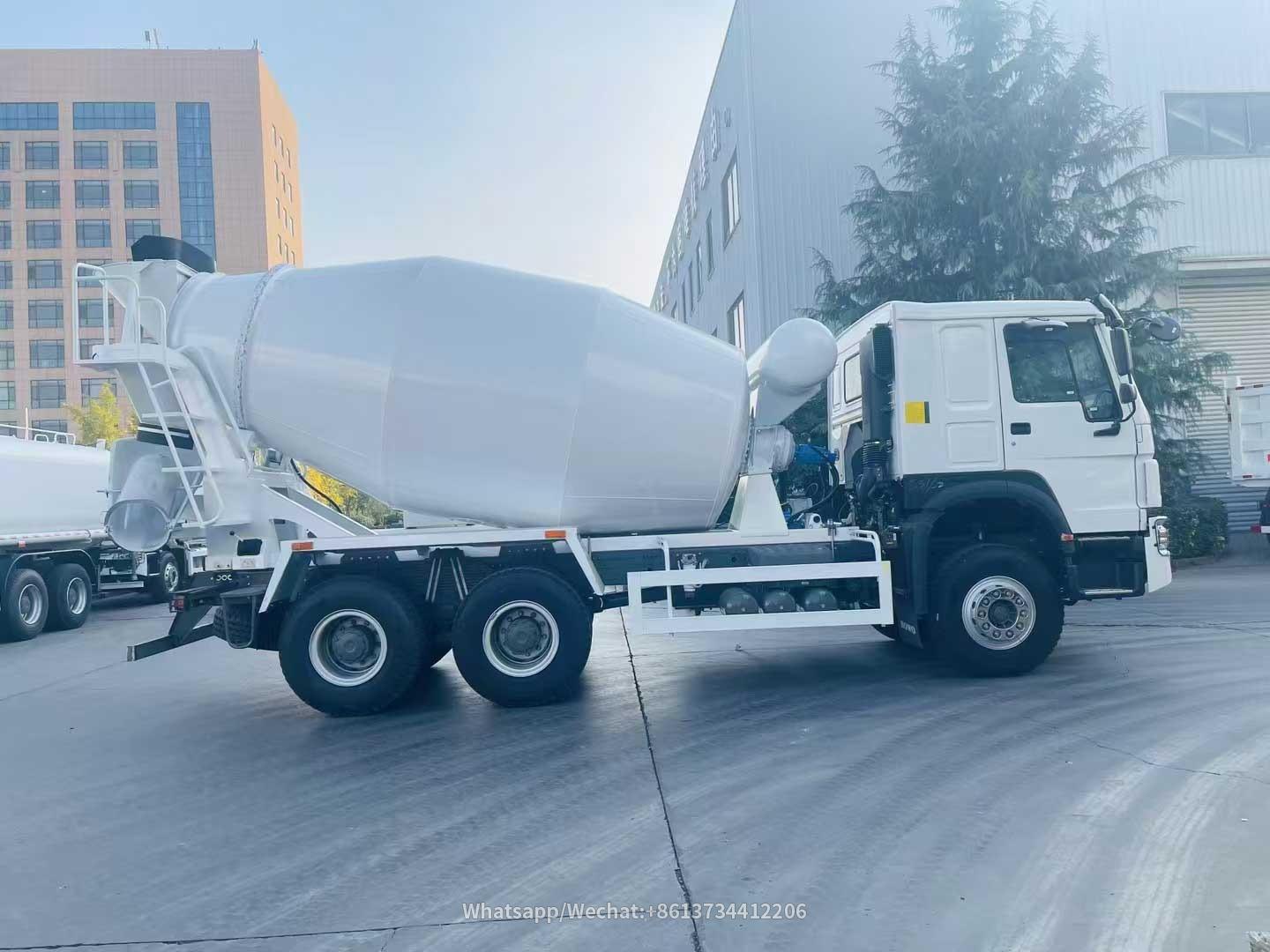

10CBM TRANSIT MIXER TRUCK Pictures and Delivery
FAQ for 10CBM TRANSIT MIXER TRUCK
Q: Are you Dealer or Factory for 10CBM TRANSIT MIXER TRUCK?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the 10CBM TRANSIT MIXER TRUCK?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the 10CBM TRANSIT MIXER TRUCK by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your 10CBM TRANSIT MIXER TRUCK quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for 10CBM TRANSIT MIXER TRUCK. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for 10CBM TRANSIT MIXER TRUCK, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for 10CBM TRANSIT MIXER TRUCK?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for 10CBM TRANSIT MIXER TRUCK?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for 10CBM TRANSIT MIXER TRUCK?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for 10CBM TRANSIT MIXER TRUCK:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for 10CBM TRANSIT MIXER TRUCK:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the 10CBM TRANSIT MIXER TRUCKand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the 10CBM TRANSIT MIXER TRUCKin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
10CBM TRANSIT MIXER TRUCKmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for 10CBM TRANSIT MIXER TRUCK::
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for 10CBM TRANSIT MIXER TRUCK::
“ Howo Truck Export can provide timely service, the 10CBM TRANSIT MIXER TRUCKtrucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”
--Mr.Sady
“ I order 10CBM TRANSIT MIXER TRUCKfrom HOWO Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”
--Mr.Aman
If you are interested in 10CBM TRANSIT MIXER TRUCK of our company, don’t hesitate to contact me, the best service is waiting for you !
