Description
3 Axles 40ft Container Flatbed Trailer Function and Introduction:
3 Axles 40ft Container Flatbed Trailer
1. The vehicle body is made of high-quality steel, advanced technology, and strict production and manufacturing. The vehicle has a reasonable structure, reliable performance, easy operation, and beautiful appearance.
2. The frames of the series of semi-trailers are all through-beam structures, and the longitudinal beams are straight or gooseneck. The web height ranges from 400mm to 550mm manganese plate welding, the longitudinal beams are welded by automatic buried welding, the frame is shot peened, and the cross beams penetrate the longitudinal beams and welded as a whole.
3. The suspension adopts non-independent steel plate stamping rigid suspension, which is made of series steel leaf springs and suspension supports; the structure is reasonable, with strong rigidity and strength, used to support loads and reduce impact.
3 Axles 40ft Container Flatbed Trailer Specifications
Trailer Model |
3 Axle flatbed Container Semi Trailer |
Function |
Carry 40ft or 2*20ft container or other stuff |
Overall Dimension (Lx W x H)(mm) |
12500*2500*1550 |
Tare Weight(KG) |
6350 |
Loading Weight( KG) |
40000 |
Total Weight(KG) |
46350 |
Axle Brand |
13TON Axle FUWA/BPW/ ZY Brand or HT brand |
Axle Number |
Three |
Wheelbase(mm) |
7450+1310+1310 |
Suspension system |
Mechanical Leaf Spring Suspension |
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
The material of Main beam |
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
Side beam |
Q235 16# channel steel |
Platform plate |
3mm Diamond plate |
Container Twist Locker |
12pcs container lock |
Tire Type and quantity |
12R22.5 12units triangle brand |
Rim |
9.00-22.5 |
Traction Pin |
2” or 3.5” |
Spare Wheel Bracket |
2 pieces |
Tool Box |
1 Standard 1000*500*500mm |
Landing Gear |
28ton Chinese brand Saiqiang brand,double speeds |
Brake system |
Dual Line braking system |
Brake air chamber |
Six big double chamber |
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
One set 6-core standard Cable. |
|
Painting |
Color as customer’s requirement |
Packing |
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint |
Delivery way |
Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |

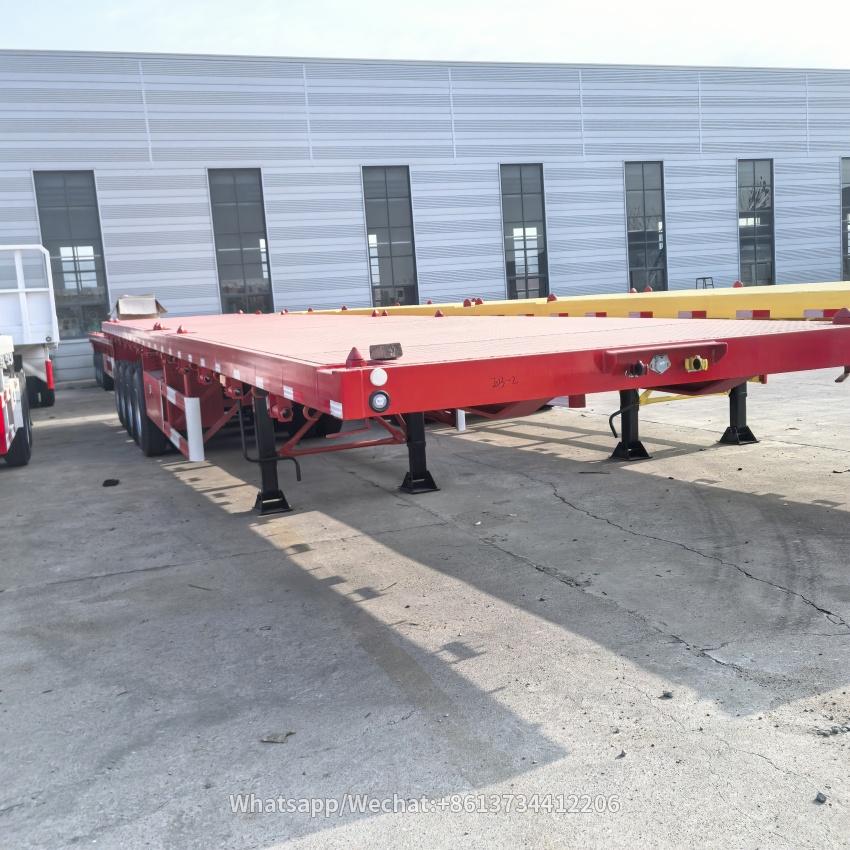

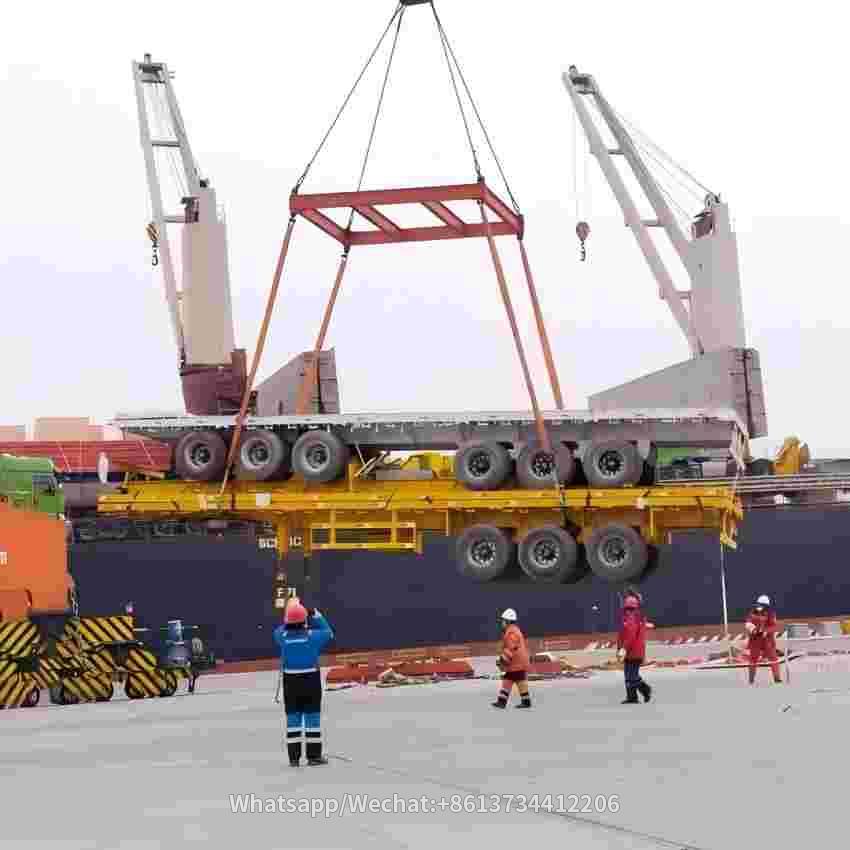

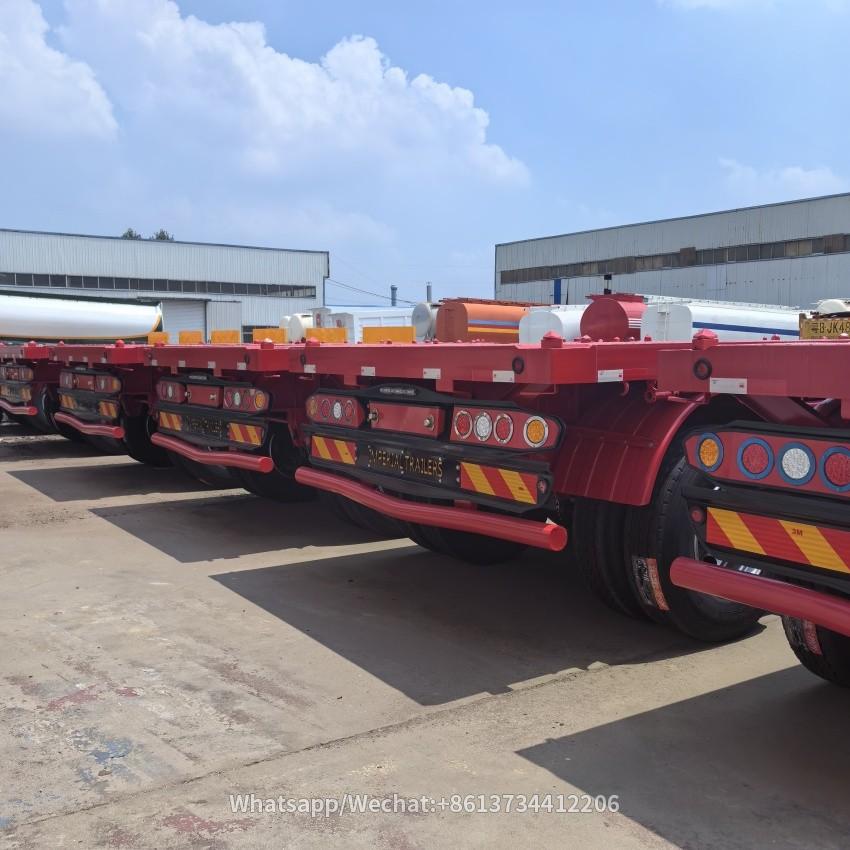

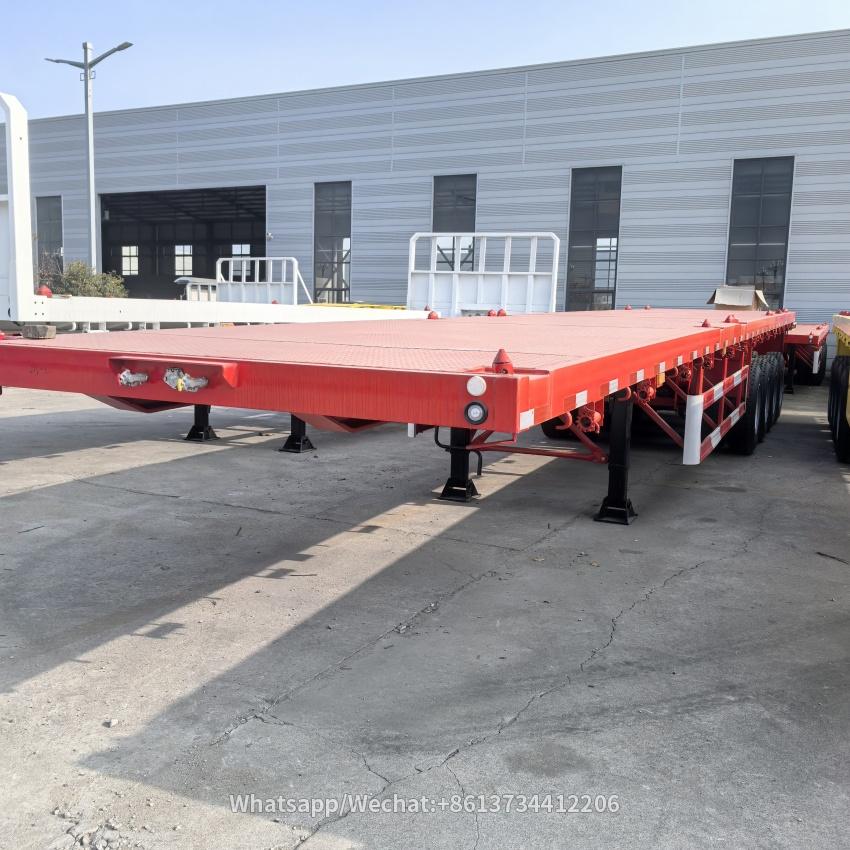

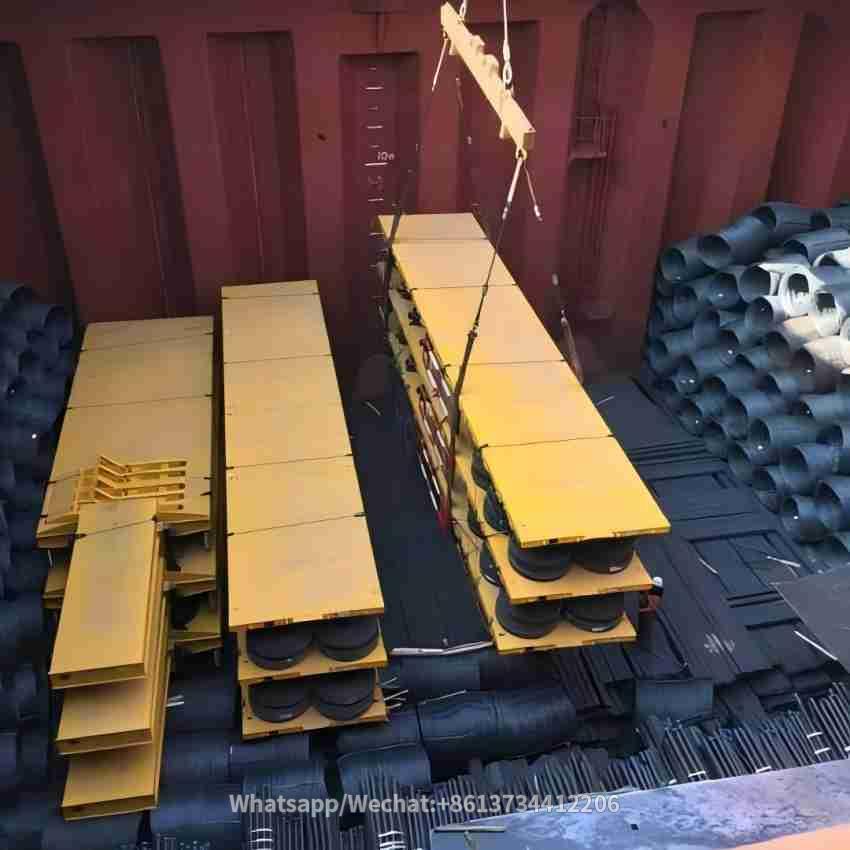

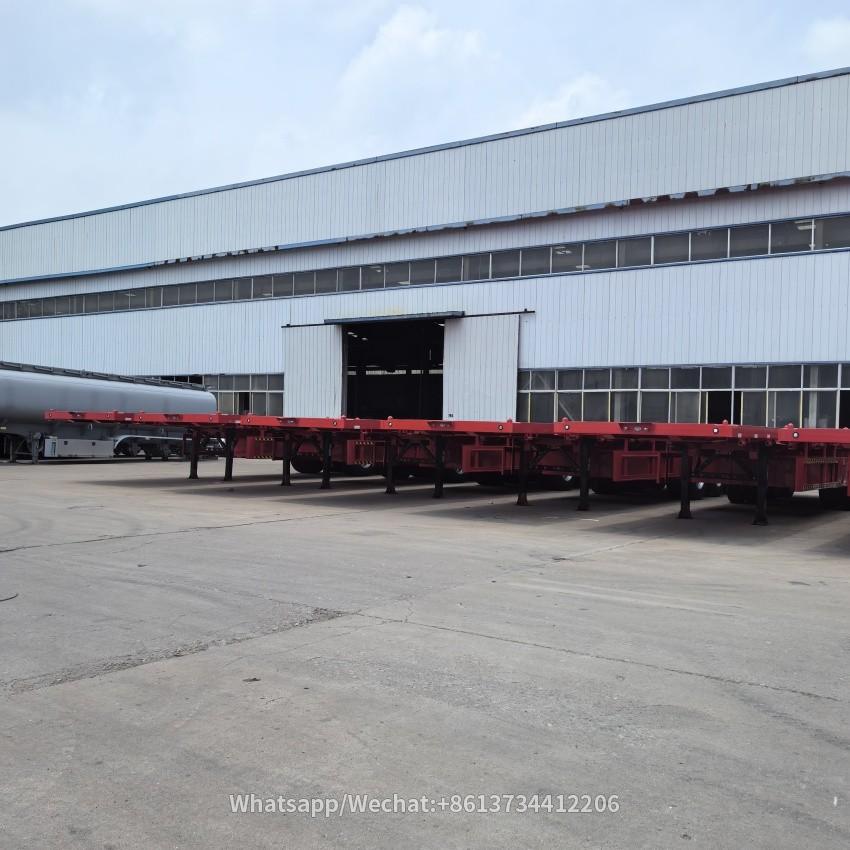

3 Axles 40ft Container Flatbed Trailer Pictures and Delivery
FAQ for 3 Axles 40ft Container Flatbed Trailer
Q: Are you Dealer or Factory for 3 Axles 40ft Container Flatbed Trailer?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the 3 Axles 40ft Container Flatbed Trailer?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the 3 Axles 40ft Container Flatbed Trailer by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your 3 Axles 40ft Container Flatbed Trailer quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for 3 Axles 40ft Container Flatbed Trailer. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for 3 Axles 40ft Container Flatbed Trailer, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for 3 Axles 40ft Container Flatbed Trailer?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q:what is the production time for 3 Axles 40ft Container Flatbed Trailer?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q:What is your company after sales Service for 3 Axles 40ft Container Flatbed Trailer?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for 3 Axles 40ft Container Flatbed Trailer:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for 3 Axles 40ft Container Flatbed Trailer:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the 3 Axles 40ft Container Flatbed Trailerand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the 3 Axles 40ft Container Flatbed Trailerin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
3 Axles 40ft Container Flatbed Trailermileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for 3 Axles 40ft Container Flatbed Trailer:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for 3 Axles 40ft Container Flatbed Trailer:
“ Howo Truck Export can provide timely service, the 3 Axles 40ft Container Flatbed Trailertrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order 3 Axles 40ft Container Flatbed Trailerand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in 3 Axles 40ft Container Flatbed Trailer of our company, don’t hesitate to contact me, the best service is waiting for you !
