Description
6 Axles 80 Tons 100 Tons Dumper Trailer Function and Introduction:
Dumper Trailer is a transport vehicle suitable for transporting bulk goods such as coal, ore, and building materials.
1. The carriage adopts the side-over and rear-over self-unloading method, which can effectively improve the transportation efficiency of the loader and unloader to transport bulk and scattered goods.
2. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangular. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity, and no permanent deformation.
3. Excellent workmanship: the main components are processed by advanced equipment, the longitudinal beam is made of fully automatic submerged arc welding, and the assembly machine is used for precise assembly of axles and leaf springs.
6 Axles 80 Tons 100 Tons Dumper Trailer Specifications
|
Trailer Model |
3 Axles U-shaped Rear Dump Semi-trailer |
|
Overall Dimension (Lx W x H)(mm) |
11000mm x 2500mm x 3700mm |
|
Inner Dimension |
10000mm x 2300mm x 2000mm or 46 cubic meter |
|
Main beam |
I shaped mild alloy Q345B by automatic submerged arc welding 18 - 20 - 10mm double main beam |
|
Platform thickness |
8mm |
|
Side wall thickness |
6mm |
|
Steel Sheet: |
16Mn with 8mm Thickness |
|
Hydraulic System: |
Full set of Hydraulic System 180 * 4 stages Hydraulic Cylinder |
|
King pin |
3.5’ exchangeable |
|
Land gear |
28tons Yahua |
|
axles |
ZY brand optional FUWA or BPW 13tons 4 axles |
|
Track |
1840/1840/1840/1840/1840 |
|
Suspension: |
First axles air bag suspension with lifting system. Rear 2 axles Mechanical Suspension with 8 pcs Leaf Spring |
|
Tire |
1100R20 24pcs |
|
Rim |
9.0, 20pcs |
|
Brake system |
30/30 type on each axle ,Wabco brake valve |
|
Spare wheel carrier |
2 pcs |
|
Paint |
Polyurethane, comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. Seawater proofed,waxed( by bulk vessel ship) |
|
Tool box |
1 pcs |
|
Electrical System |
Chinese standard 24V lighting system |
|
Brake: |
Dual Lines Pneumatic Brake System. T30/30 Air Chamber; Parking Brake |
|
Brake air chamber |
Six big chamber |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core standard Cable. |
|
|
Packing |
Nude, Polish with wax before shipping |
|
Delivery way |
Transfer to Tianjin Port, and carry by bulk or ro-ro ship, the freight cost depends on the volume. |

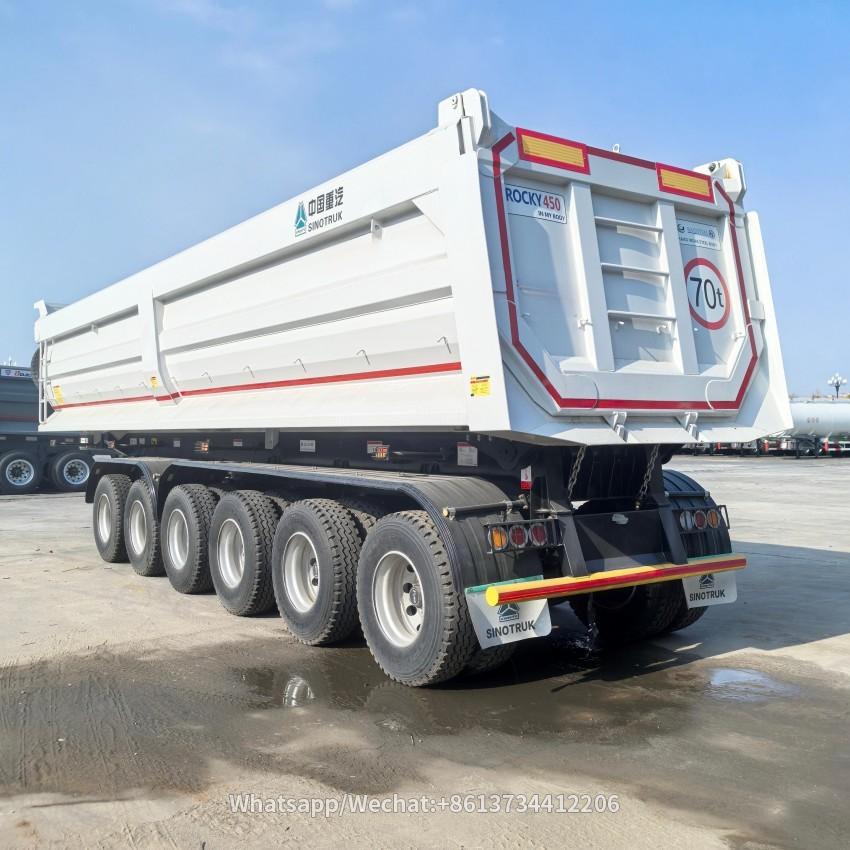

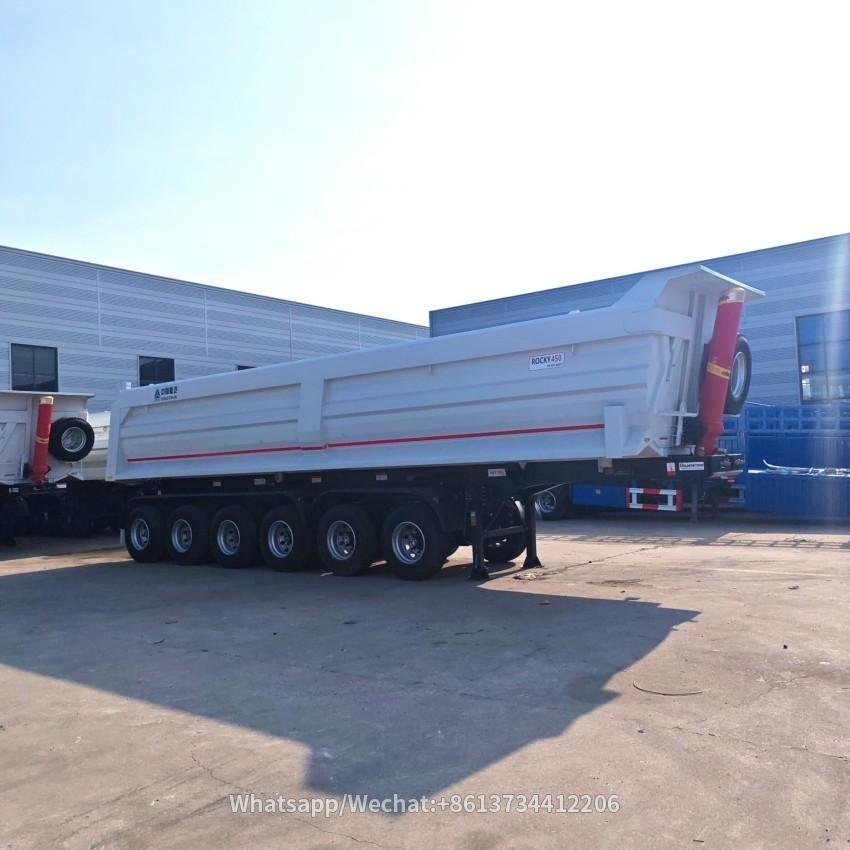

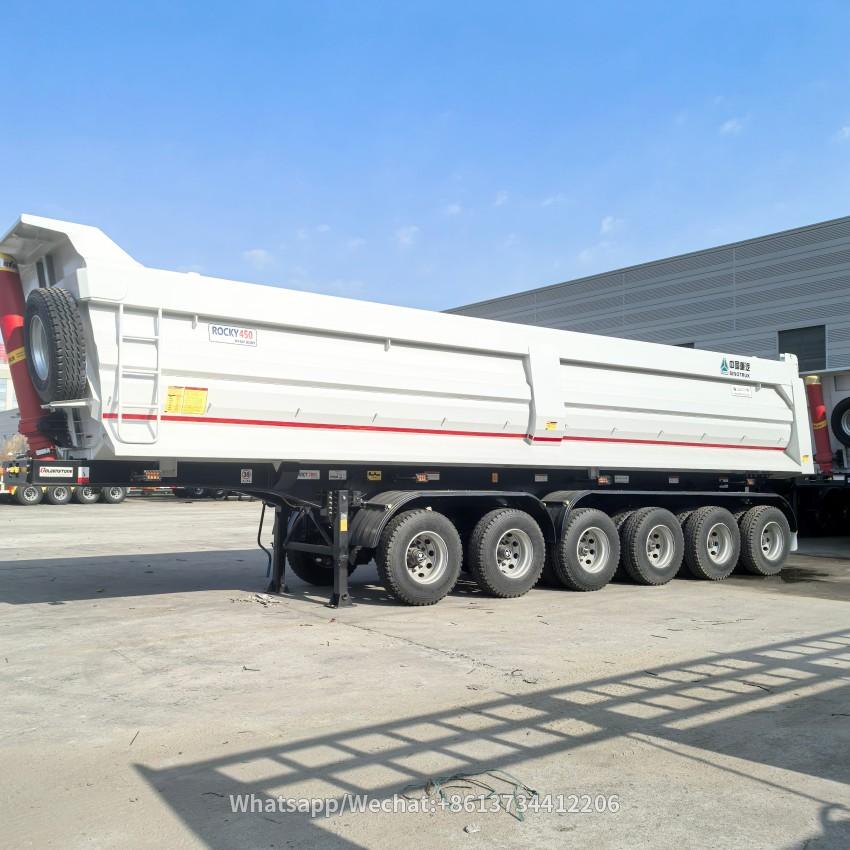

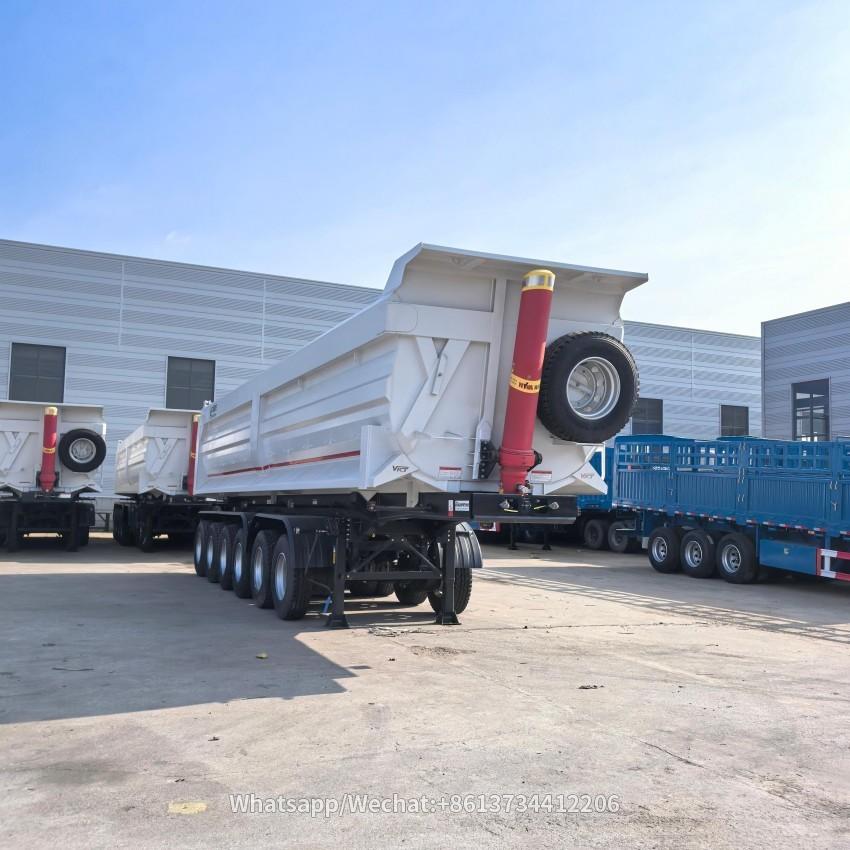

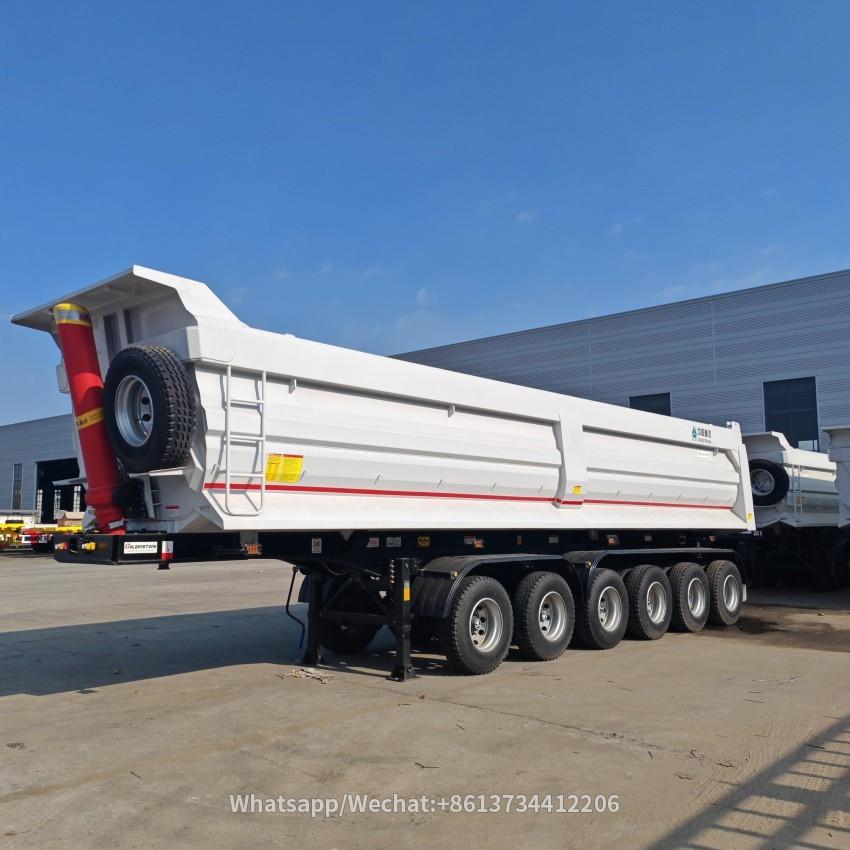

6 Axles 80 Tons 100 Tons Dumper Trailer Pictures and Delivery
FAQ for 6 Axles 80 Tons 100 Tons Dumper Trailer
Q: Are you Dealer or Factory for 6 Axles 80 Tons 100 Tons Dumper Trailer?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the 6 Axles 80 Tons 100 Tons Dumper Trailer?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the 6 Axles 80 Tons 100 Tons Dumper Trailer by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your 6 Axles 80 Tons 100 Tons Dumper Trailer quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for 6 Axles 80 Tons 100 Tons Dumper Trailer. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for 6 Axles 80 Tons 100 Tons Dumper Trailer, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for 6 Axles 80 Tons 100 Tons Dumper Trailer?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for 6 Axles 80 Tons 100 Tons Dumper Trailer?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for 6 Axles 80 Tons 100 Tons Dumper Trailer?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for 6 Axles 80 Tons 100 Tons Dumper Trailer:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for 6 Axles 80 Tons 100 Tons Dumper Trailer:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the 6 Axles 80 Tons 100 Tons Dumper Trailerand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the 6 Axles 80 Tons 100 Tons Dumper Trailerin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
6 Axles 80 Tons 100 Tons Dumper Trailermileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for 6 Axles 80 Tons 100 Tons Dumper Trailer:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for 6 Axles 80 Tons 100 Tons Dumper Trailer:
“ Howo Truck Export can provide timely service, the 6 Axles 80 Tons 100 Tons Dumper Trailertrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order 6 Axles 80 Tons 100 Tons Dumper Trailerand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
