Description
CNHTC HOWO NX 12 wheeler N7 dump truck Function and Introduction:
CNHTC HOWO NX 12 wheeler N7 dump truck ( also called China Tipper Trucks For Sale, Cnhtc Sinotruk Howo, Sinotruk New Dump Truck, Dumper Truck Price, Tipper Truck Price, Howo Sinotruk 371, Heavy Duty Dump Truck, Howo 8x4 Dump Truck, CNHTC HOWO NX 12 wheeler N7 dump truck,Howo Mining Trucks, Cnhtc Sinotruk Howo), has a dump truck cargo box controlled by a hydraulic lifting mechanism, which can be moved or tilted at a certain angle to facilitate unloading by itself or horizontally.
CNHTC HOWO NX 12 wheeler N7 dump truck is one of the brand for SINOTRUK, and SINOTRUK mainly organizes the development, production and sale of various dump trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
CNHTC HOWO NX 12 wheeler N7 dump truck Specifications
|
CNHTC HOWO NX 12 wheeler N7 dump truck |
||||
|
Truck Model |
ZZ3317V356JB1 |
|||
|
Truck Brand |
SINOTRUK –HOWO |
|||
|
Driving Type |
Left/Right Hand Driving |
|||
|
Dimension(Lx W xH)（unloaded）（mm） |
11050x2496x3450 |
|||
|
Cargo body size (L*W*H, mm) |
7300x2300x1800, 30.2M3 |
|||
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm |
|||
|
Lift type of Carriage |
Front Lift, optional HYVA brand |
|||
|
Approaching angle/Departure angle |
19/19 |
|||
|
Overhang(front/rear) (mm) |
1500/2200 |
|||
|
Wheel base (mm) |
1800+4200+1350 |
|||
|
Max speed（km/h） |
75 |
|||
|
Curb weight（kg） |
15440 |
|||
|
Total weight(kg) |
40000 |
|||
|
Fuel tanker capacity（L） |
300L |
|||
|
Fuel consumption(L/km) |
20-40 L/100 km |
|||
|
Clutch |
Single-plate dry clutch Φ430mm |
|||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
||
|
Horse Power, max（kw/rpm） |
371HP |
|||
|
Emission |
EURO II |
|||
|
Model |
WD615.47. water-cooled，four strokes，6 cylinders in line with water cooling，directly injection |
|||
|
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
Auxiliary brake |
Engine exhaust brake |
|||
|
Steering system |
Model |
ZF8098 hydraulic steering with power assistance |
||
|
Front axle |
HF9, Steering with double T-cross section beam Loading capacity: 9000kg |
|||
|
Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Loading capacity:13000kg |
|||
|
Color |
Optional |
|||
|
Tire |
12.00R20 Radial tires |
|||
|
Tire quantity |
12+1 spare=13 tires |
|||
|
Electrical system
|
Battery |
2X12V/165Ah |
||
|
Alternator |
28V-1500kw |
|||
|
Starter |
7.5Kw/24V |
|||
|
Cab |
HOWO H77L cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|||
CNHTC HOWO NX 12 wheeler N7 dump truck is mainly used to transport bulk materials (such as sand, soil, ore, etc.) or overall materials. It is mainly used in mines, construction sites, etc. It can be divided into special dump truck, ordinary tipper truck and mining tipper truck.
CNHTC HOWO NX 12 wheeler N7 dump truck is the most popular dump trucks used a lot in Africa bad road condition.

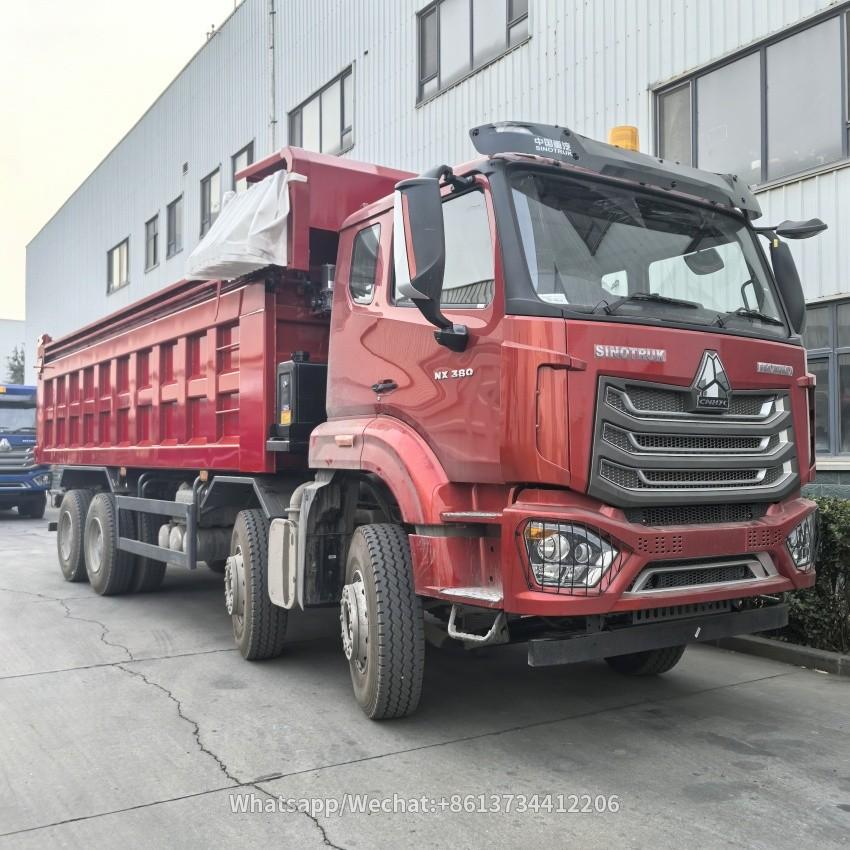

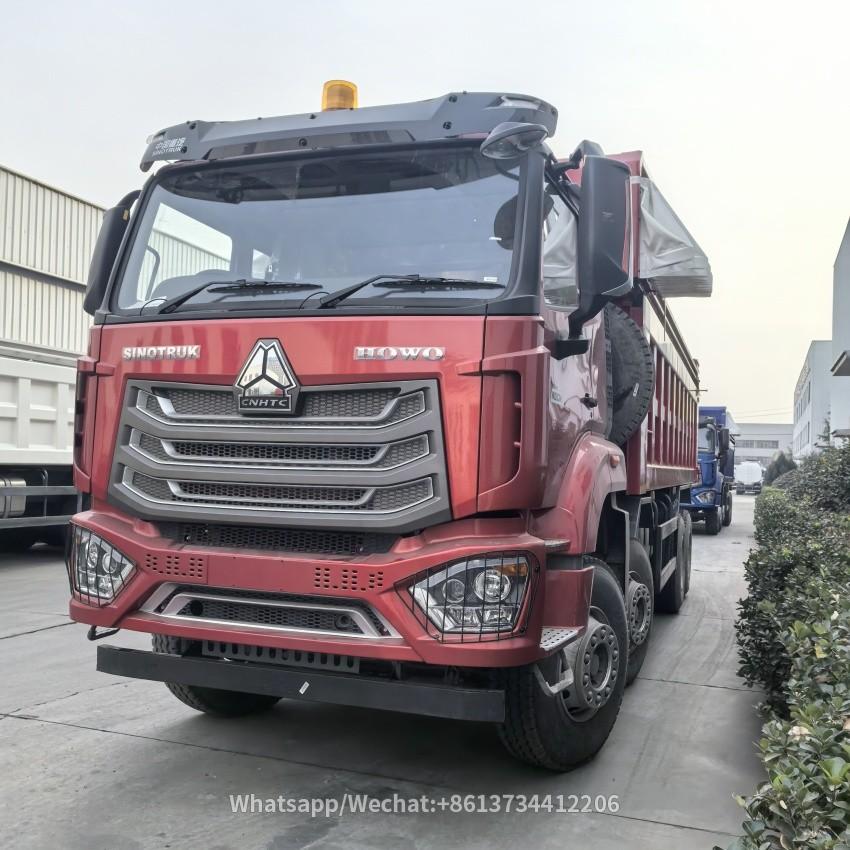

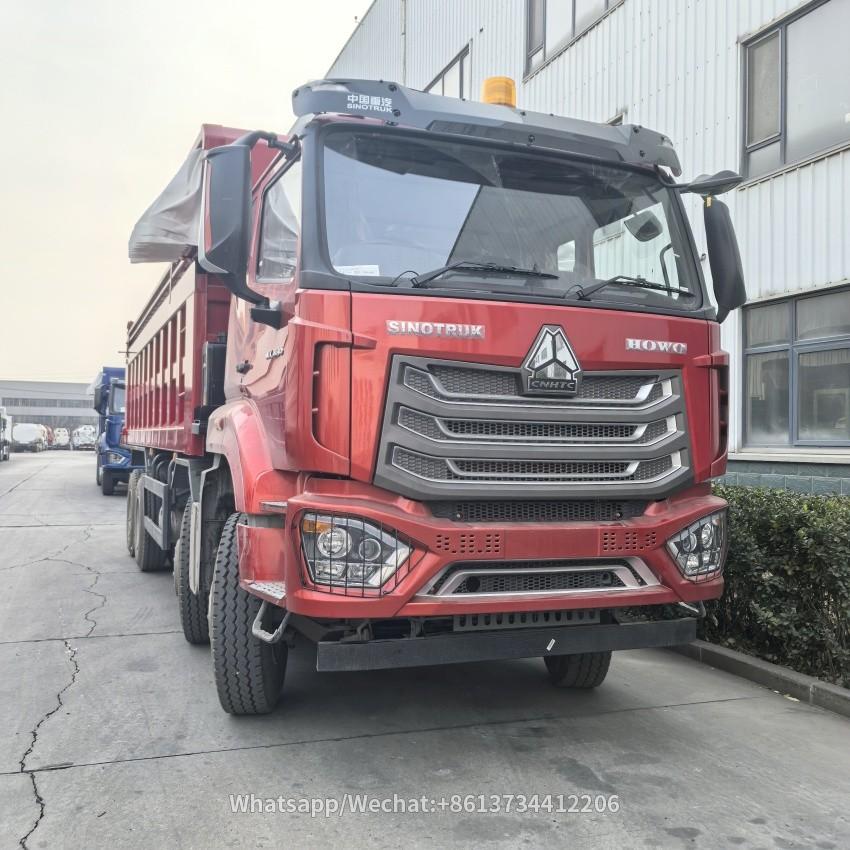

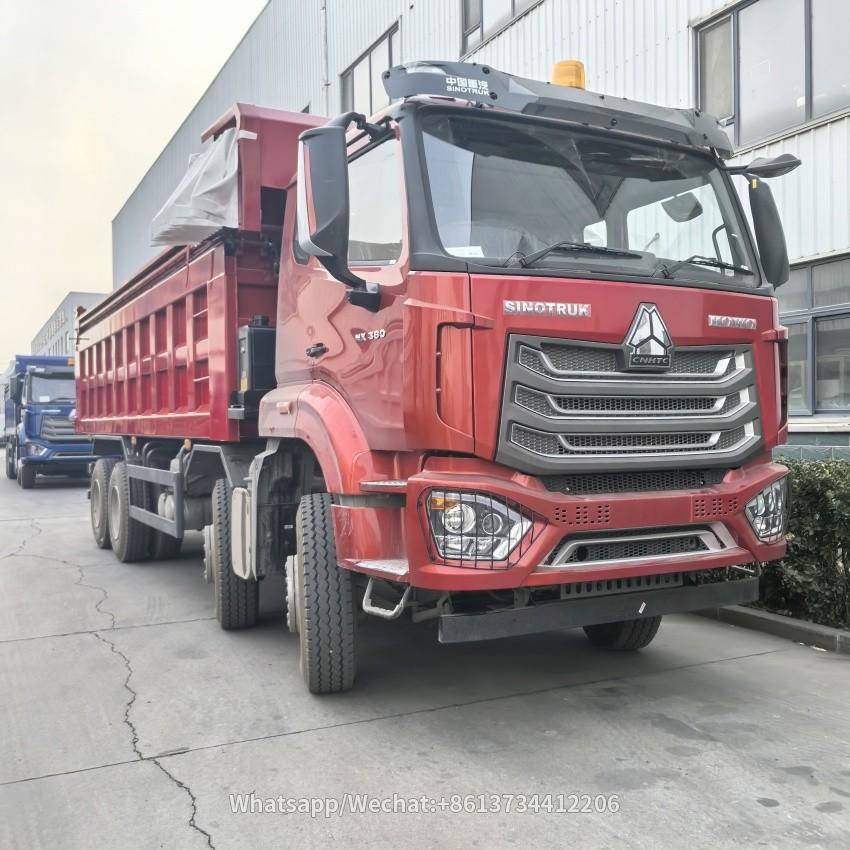

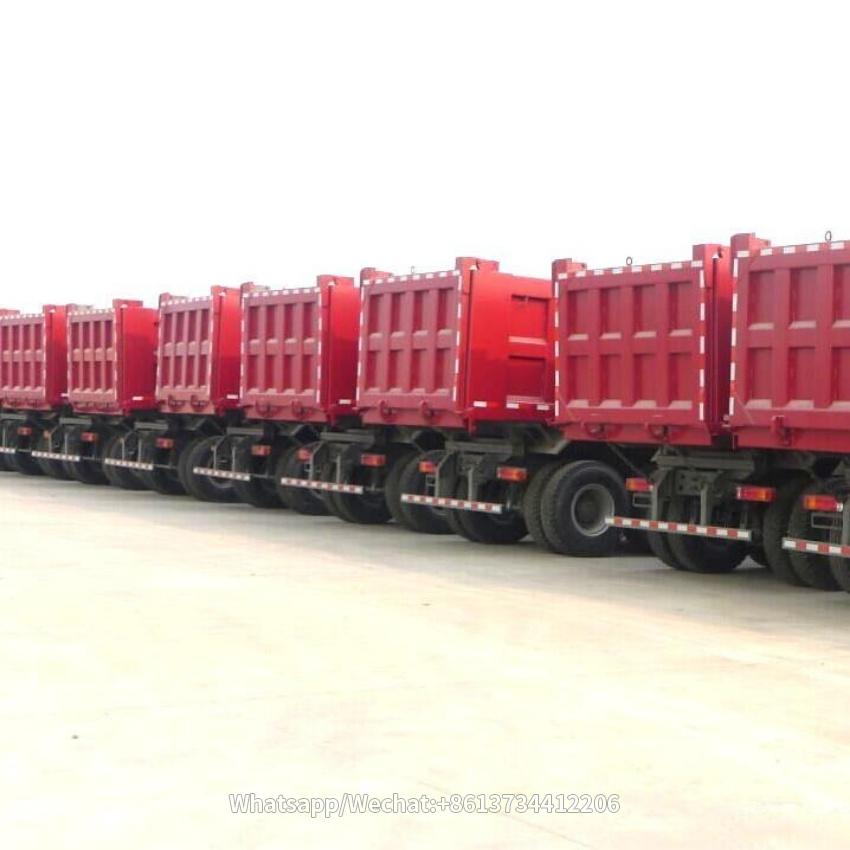

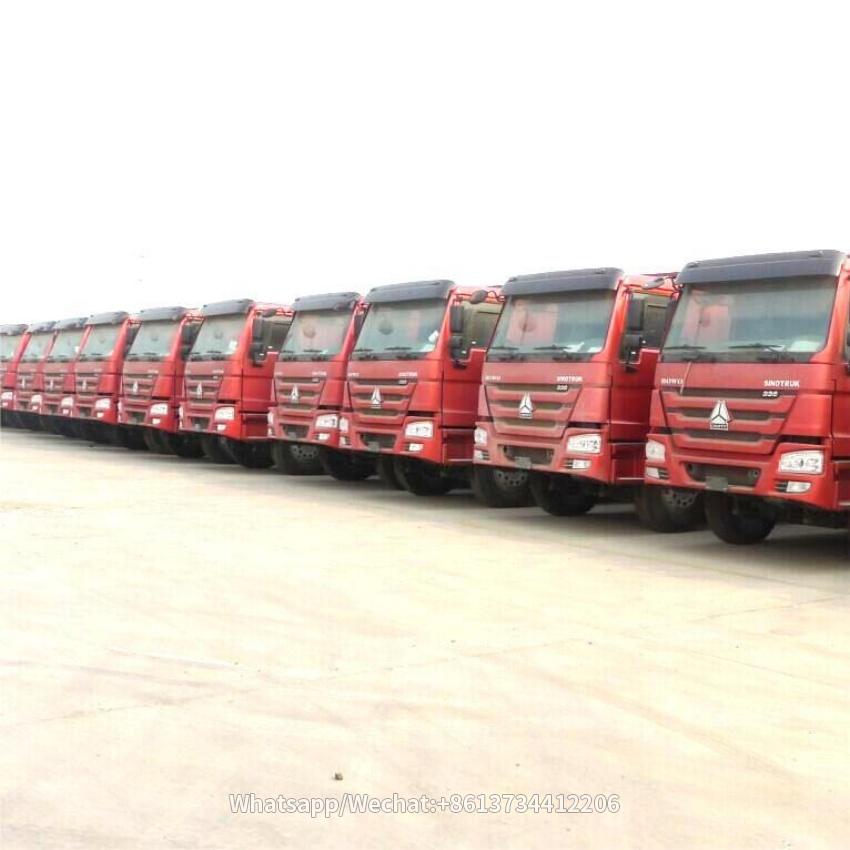

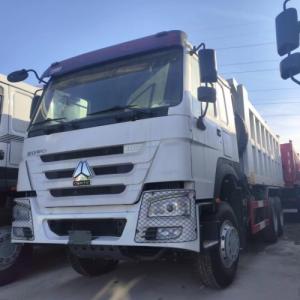

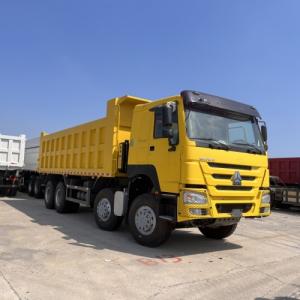

CNHTC HOWO NX 12 wheeler N7 dump truck Pictures and Delivery
FAQ for CNHTC HOWO NX 12 wheeler N7 dump truck
Q: Are you Dealer or Factory for CNHTC HOWO NX 12 wheeler N7 dump truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the CNHTC HOWO NX 12 wheeler N7 dump truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the CNHTC HOWO NX 12 wheeler N7 dump truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your CNHTC HOWO NX 12 wheeler N7 dump truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for CNHTC HOWO NX 12 wheeler N7 dump truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for CNHTC HOWO NX 12 wheeler N7 dump truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for CNHTC HOWO NX 12 wheeler N7 dump truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for CNHTC HOWO NX 12 wheeler N7 dump truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for CNHTC HOWO NX 12 wheeler N7 dump truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for CNHTC HOWO NX 12 wheeler N7 dump truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for CNHTC HOWO NX 12 wheeler N7 dump truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the CNHTC HOWO NX 12 wheeler N7 dump truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the CNHTC HOWO NX 12 wheeler N7 dump truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
CNHTC HOWO NX 12 wheeler N7 dump truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for CNHTC HOWO NX 12 wheeler N7 dump truck:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for CNHTC HOWO NX 12 wheeler N7 dump truck:
“ Howo Truck Export can provide timely service, the CNHTC HOWO NX 12 wheeler N7 dump trucktrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order CNHTC HOWO NX 12 wheeler N7 dump truckand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in CNHTC HOWO NX 12 wheeler N7 dump truck of our company, don’t hesitate to contact me, the best service is waiting for you !
