Description
Howo 430hp Truck Head Function and Introduction:
Howo 430hp Truck Head ( also called howo truck, Sinotruk HOWO, howo truck head, Howo 400hp Truck Price, Howo 430hp Truck Head, Sinotracker, howo primemover, Camion Sinotruk) widely used in transportation and connect with various kind of trailers.
Howo 430hp Truck Head is one of the brand for SINOTRUK, and SINOTRUK mainly organizes the development, production and sale of various trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
Howo 430hp Truck Head Specifications
Howo 430hp Truck Head
Truck Model
ZZ4257V3247B1 (Right/Left Hand Drive)
Dimension(Lx W xH)（mm）
6800x2490x3668
Approaching angle/Departure angle（°）
16/70
Overhang(front/rear) (mm)
1500/700,725
Wheel base (mm)
3200+1400,3225+1350
Max speed（km/h）
102
Curb weight（kg）
11930
Loading Weight（kg）
40000
Engine
(Steyr technology, made in China)
Model
430HP，WP12.430E201,water-cooled，four
Strokes,6 cylinders in line with water cooling，turbocharged and intercooling, directly injection
Fuel type
Diesel
Emission
EURO2
Fuel tanker capacity（L）
400
Transmission
Model
HW19710 +HW50/70(PTO)
SINOTRUK GEARBOX 10-forward and 2-reserve speed
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air
operating on rear wheels
Auxiliary brake
engine exhaust brake
Steering system
Model
ZF8118,hydraulic steering with power assistance
Front axle
VGD95,1x9500 KGS
Steering with double T-cross section beam
Rear axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Color
White; Yellow; Blue; Orange; Black; Red or others
Tyre
315/80R22.5 11units optional 13R22.5, 1200R20, 1200R24, 12R22.5
Operating voltage
24 V, negative grounded
Electrical system
Battery
2X12V/165Ah
Alternator
3-phase, 28V-1500kw
Starter
7.5Kw/24V
Others
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Cab
HW76,(one sleeping, with air-condition) all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

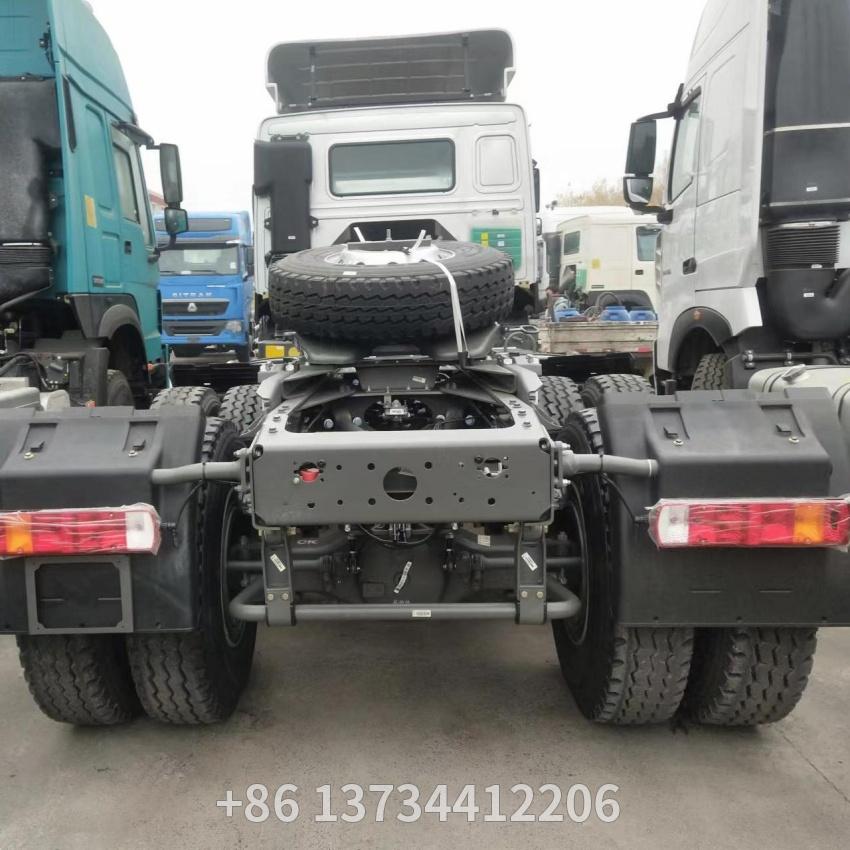

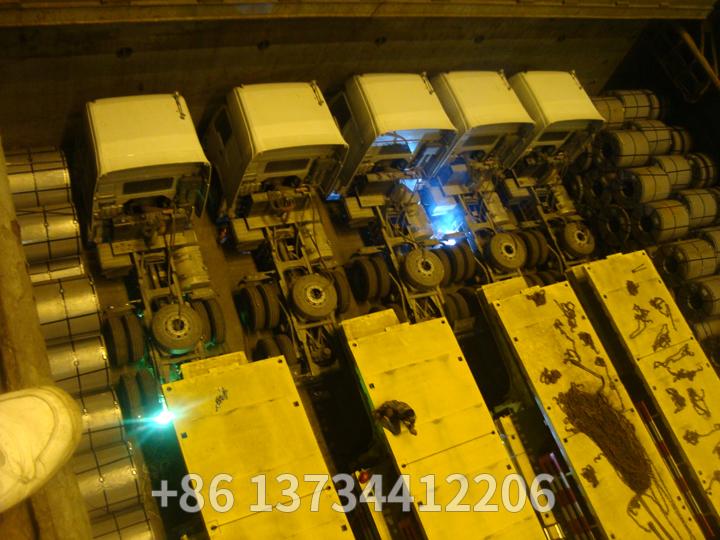

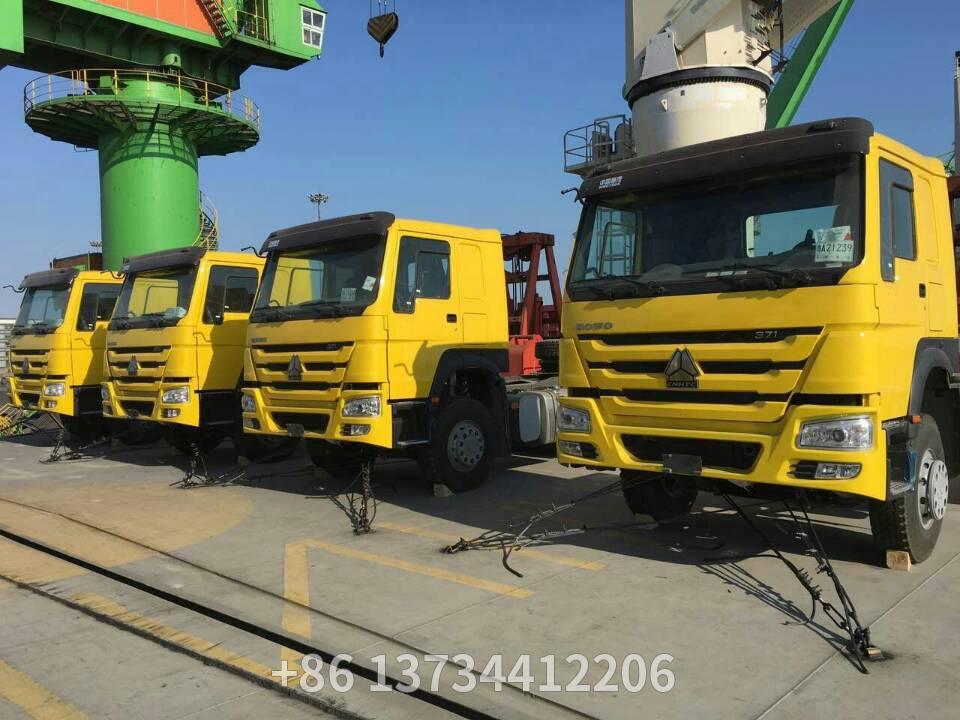

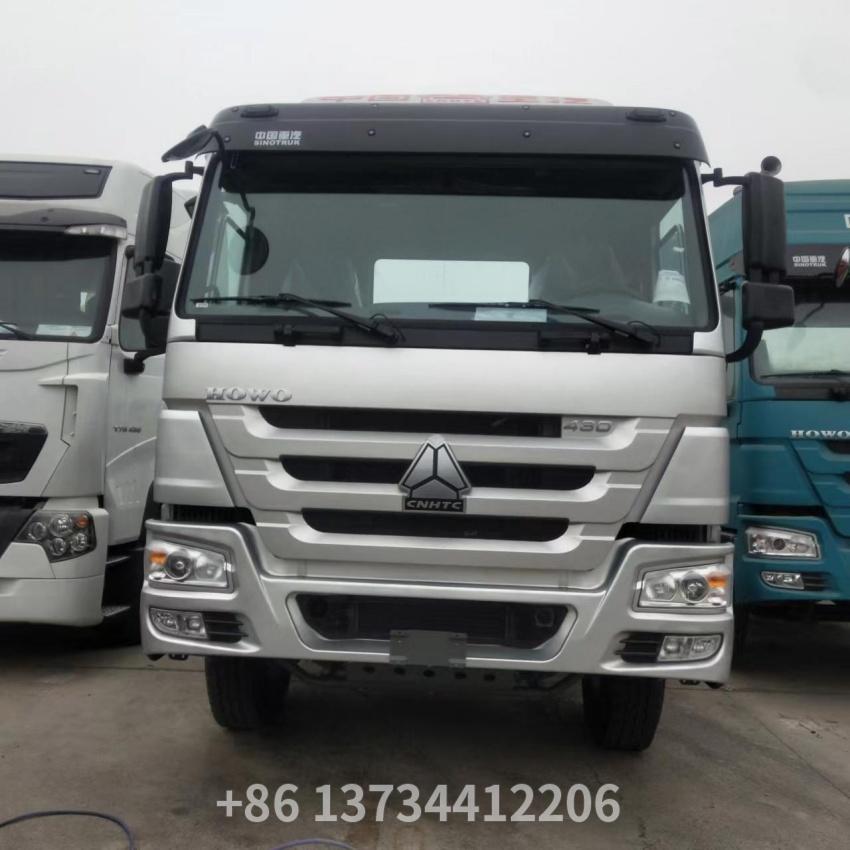

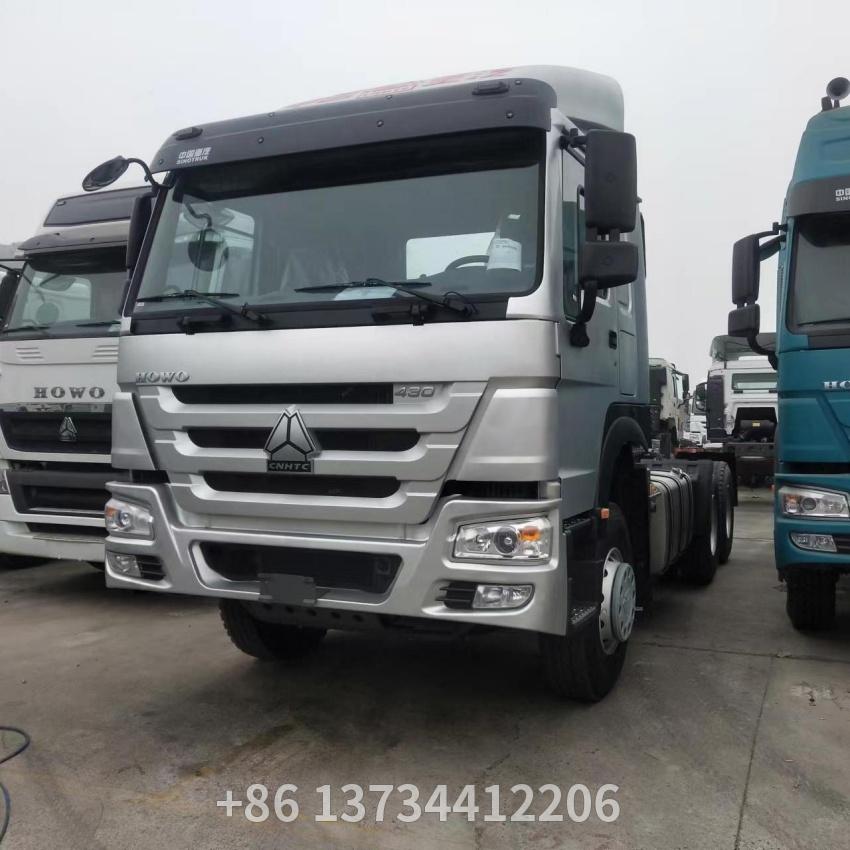

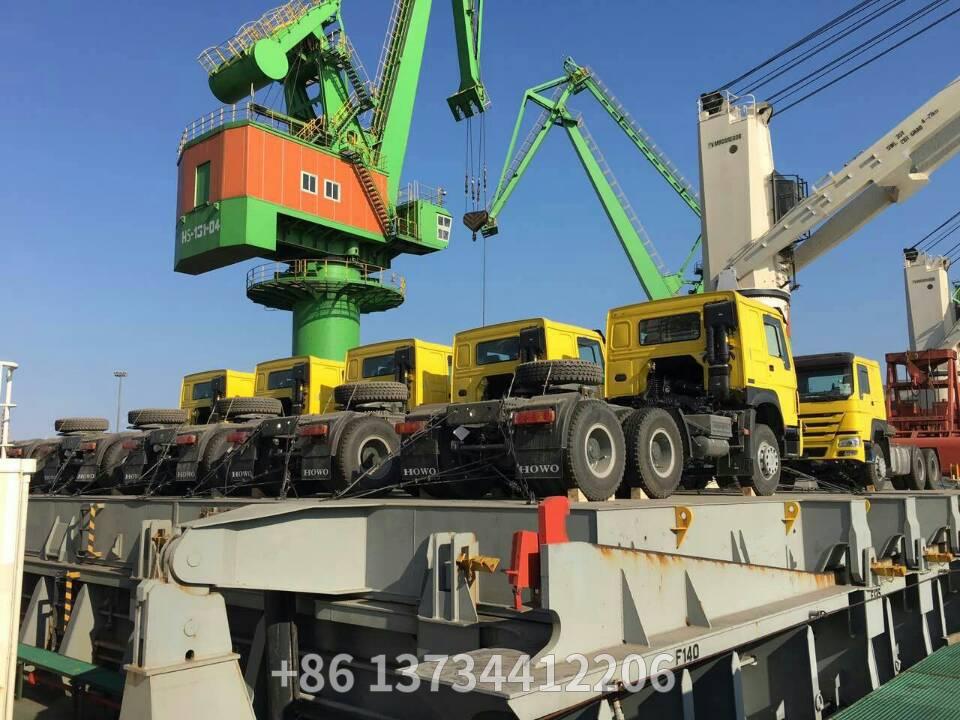

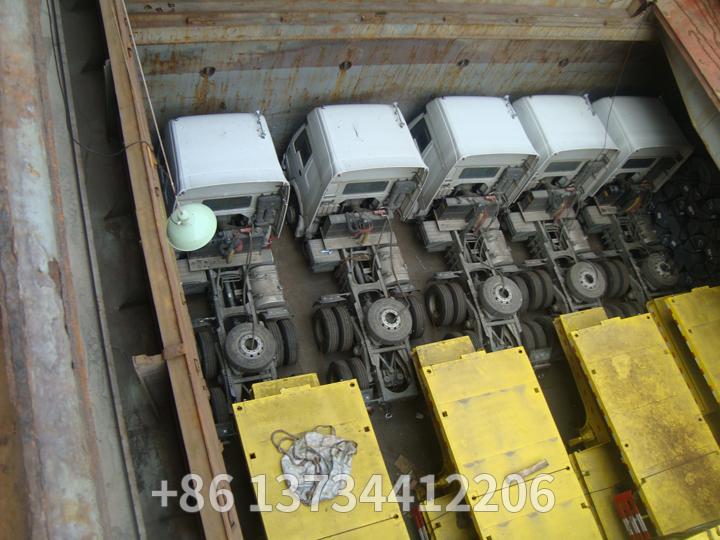

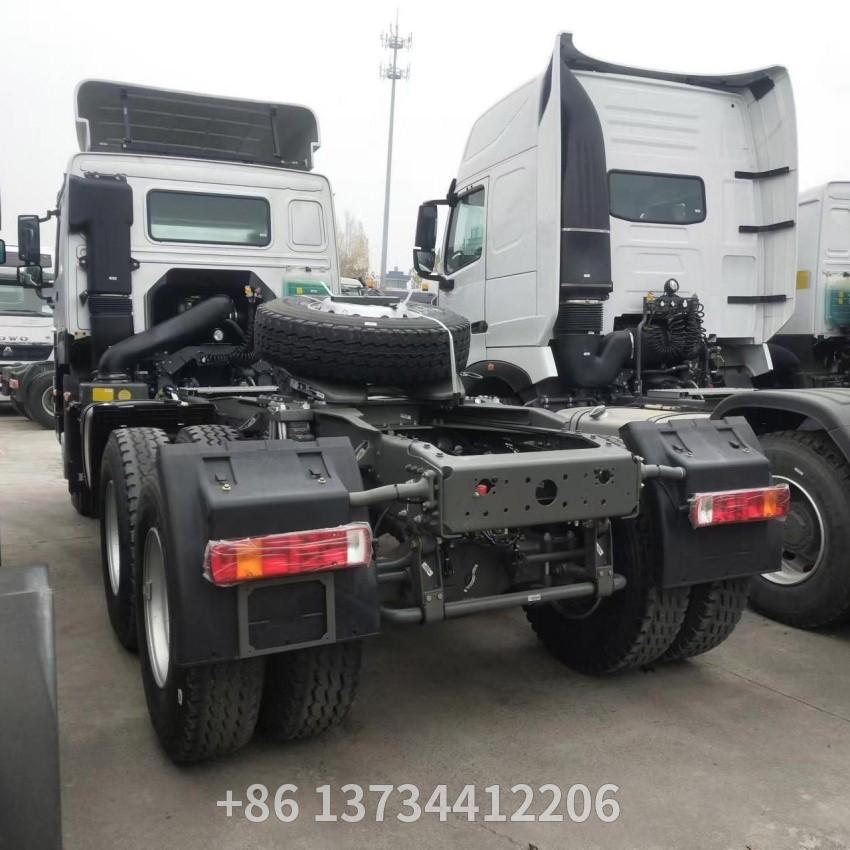

Howo 430hp Truck Head Pictures and Delivery
FAQ for Howo 430hp Truck Head
Q: Are you Dealer or Factory for Howo 430hp Truck Head?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Howo 430hp Truck Head?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Howo 430hp Truck Head by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Howo 430hp Truck Head quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Howo 430hp Truck Head. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Howo 430hp Truck Head, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Howo 430hp Truck Head?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Howo 430hp Truck Head?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Howo 430hp Truck Head?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Howo 430hp Truck Head:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Howo 430hp Truck Head:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Howo 430hp Truck Head and the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Howo 430hp Truck Head in the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Howo 430hp Truck Head mileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Howo 430hp Truck Head::
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Howo 430hp Truck Head::
“ Honest motors can provide timely service, the Howo 430hp Truck Head trucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Sady
“ I order Howo 430hp Truck Head and the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr. Ramon
If you are interested in Howo 430hp Truck Head of our company, don’t hesitate to contact me, the best service is waiting for you !
