Description
Howo 8 tons light Tipper Truck Function and Introduction:
Howo 8 tons light Tipper Truck is a vehicle that unloads cargo by itself through hydraulic or mechanical lifting. The compartment of a dump truck can be divided into two types: backward tipping and side tipping. The movement of the piston rod is controlled by the operating system. Backward tipping is more common, and the piston rod is pushed to tip the compartment. A few can tip in both directions.
Howo 8 tons light Tipper Truck Structure:
The structure of the engine, chassis and cab of the dump truck is the same as that of a general truck.
High-pressure oil enters the lifting hydraulic cylinder through the distribution valve and oil pipe, and there is a cab safety protection plate at the front end of the car.
The engine drives the hydraulic pump through the transmission and power take-off device. The hydraulic tilting mechanism of the car consists of an oil tank, a hydraulic pump, a distribution valve, a lifting hydraulic cylinder, a control valve and an oil pipe.
The engine drives the hydraulic pump through the transmission and power take-off device, and the high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and oil pipe, pushing the piston rod to tip the car. Backward tipping is more common. By controlling the movement of the piston rod through the operating system, the car can be stopped at any desired tilting position. The car uses its own gravity and hydraulic control to reset.
Since the loaded dump truck can automatically tip over a certain angle to unload, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
Howo 8 tons light Tipper Truck Specifications
|
OVERALL DEMENSION |
MM |
6995×2200×2450 |
|
|
CURB WEIGHT |
KG |
4800 |
|
|
MAX LOADING CAPACITY |
KG |
8000 |
|
|
MAX GRADABILITY WHEN FULL LOADING |
DEG |
32° |
|
|
MAX SPEED |
KM/H |
95 |
|
|
FRONT/REAR HANGING |
MM |
1160/1850 |
|
|
CLOSE/DEPARTURE ANGLE |
DEG |
20/25 |
|
|
LEAF SPRING |
PCS |
9/12+9 |
|
|
DRIVE WHEEL |
|
4*2 |
|
|
CHASSIS MODEL |
|
ZZ1087D3815C1R |
|
|
MANUFACTURER |
|
SINO Motors Co.,Ltd. |
|
|
MANUFACTURE DATE |
|
2018 |
|
|
POWER STEERING 方向助力 |
|
Equipped |
|
|
WHEELBASE |
|
3800 |
|
|
FRONT AXLE 前桥 |
|
2.4T |
|
|
REAR AXLE 后桥 |
|
7.2T |
|
|
TYRE SPECIFICATION |
|
7.50R-16 |
|
|
NO OF TYRES |
PCS |
6+1 spare tyre |
|
|
ENGINE MODEL |
CY4102BZLQ |
||
|
MANUFACTER |
DongFeng ChaoYang Diesel Engine Co., Ltd |
||
|
ENGINE HORSEPOWER |
PS |
120 |
|
|
DISPLACEMENT |
ML |
3856 |
|
|
EMISSION STANDARD |
Euro II |
||
|
NO OF GEARS |
6 forward gears and 1 reverse |
||
|
RATIO |
5.286 |
||
|
BRAND |
Sinotruk |
||
|
BODY DIMENSION |
MM |
4200×2000×800 |
|
|
CONFIGURATION 配置 |
MM |
side:3,bottom.:4 or according to you |
|
|
VOLUME 体积 |
M3 立方 |
6.56 |
|
|
CYLINDER 油缸 |
|
100 with double cylinder |
|
|
MATERAIL |
|
Carbon Steel |
|
|
BRAND |
|
SINO-HOWO |
|
|
MODEL 款式 |
Flat proof with ed |
||
|
STEERING 转向 |
Right hand drive |
||
|
COLOR 颜色 |
According to you |
||
|
A/C 空调 |
Equipped |
||
|
Others 其他 |
With FM RADIO,MP3 interface,Spare tire stents and so on |
||
Howo 8 tons light Tipper Truck can make the volume as per customer want, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

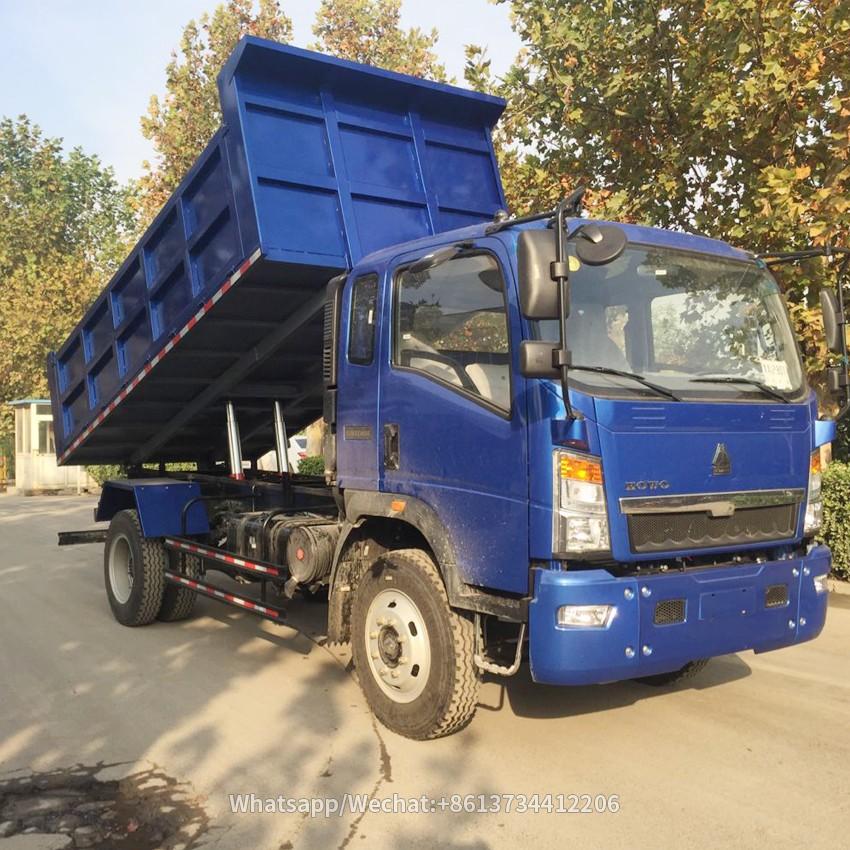

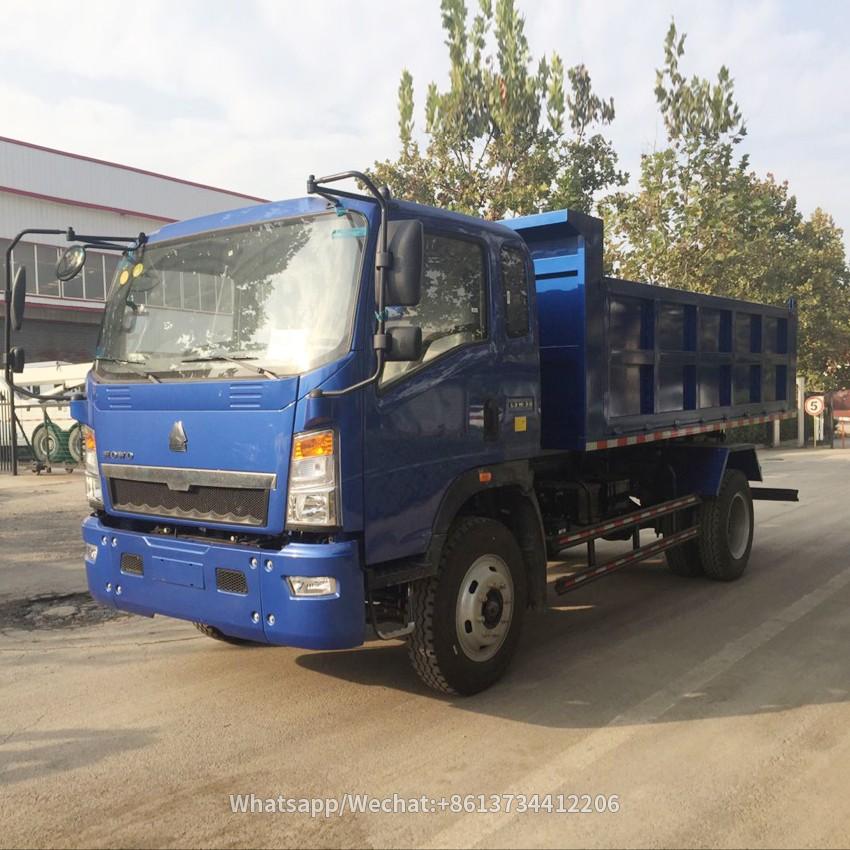

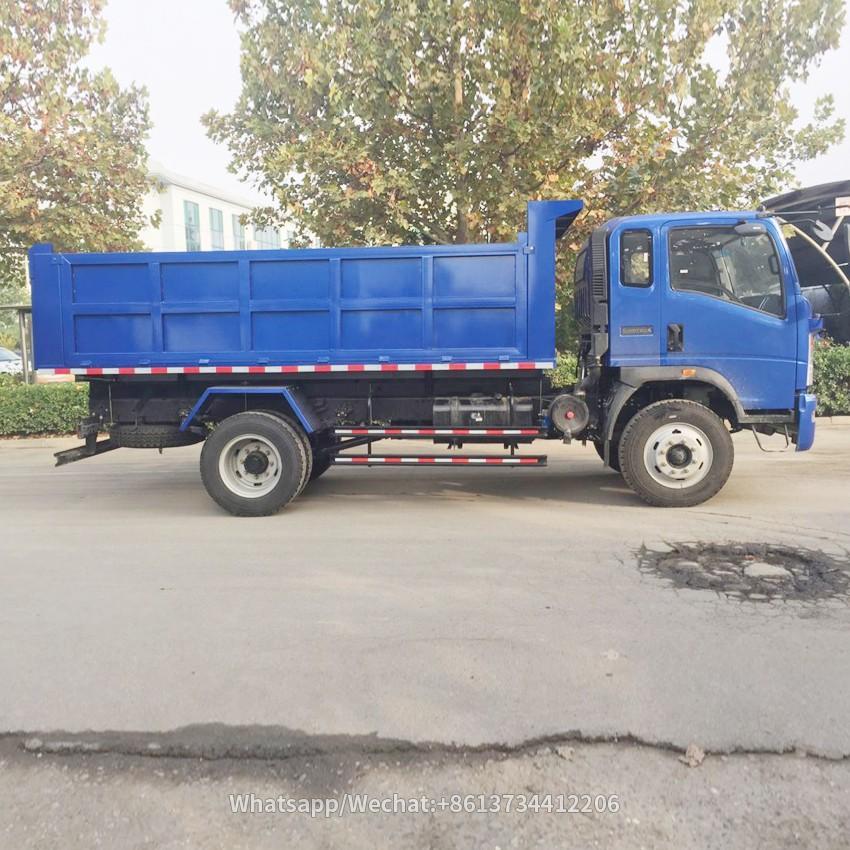

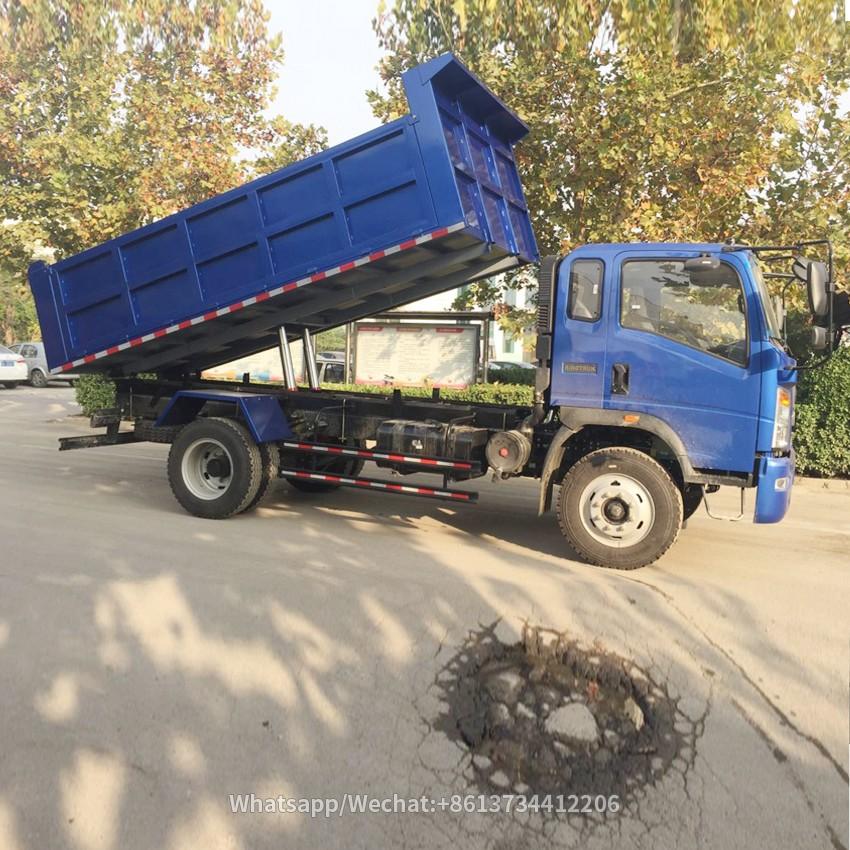

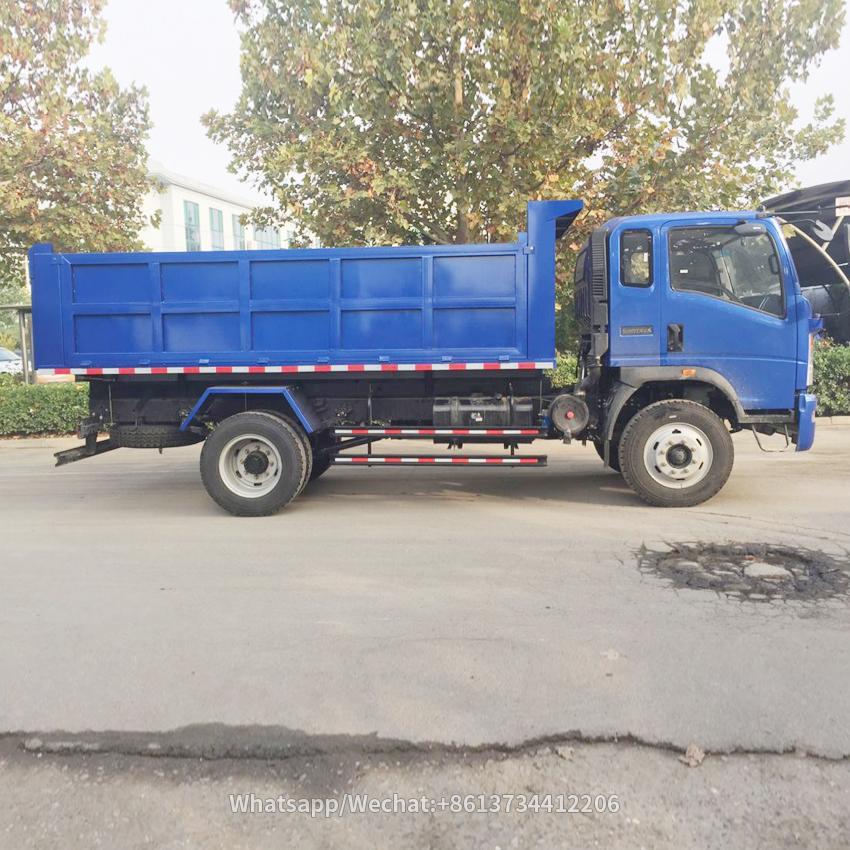

Howo 8 tons light Tipper Truck Pictures and Delivery
FAQ for Howo 8 tons light Tipper Truck
Q: Are you Dealer or Factory for Howo 8 tons light Tipper Truck ?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Howo 8 tons light Tipper Truck ?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Howo 8 tons light Tipper Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Howo 8 tons light Tipper Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Howo 8 tons light Tipper Truck . is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Howo 8 tons light Tipper Truck , especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Howo 8 tons light Tipper Truck ?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Howo 8 tons light Tipper Truck ?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Howo 8 tons light Tipper Truck ?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Howo 8 tons light Tipper Truck :
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Howo 8 tons light Tipper Truck :
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Howo 8 tons light Tipper Truck and the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Howo 8 tons light Tipper Truck in the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Howo 8 tons light Tipper Truck mileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Howo 8 tons light Tipper Truck :
After the compulsory maintenance of the truck, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Howo 8 tons light Tipper Truck :
“ Howo Truck Export can provide timely service, the Howo 8 tons light Tipper Truck trucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”
--Mr.Sady
“ I order Howo 8 tons light Tipper Truck from HOWO Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”
--Mr.Aman
If you are interested in Howo 8 tons light Tipper Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
