Description
Shacman 8x4 12 Wheel X3000 Tipper Truck Function and Introduction:
Shacman 8x4 12 Wheel X3000 Tipper Truck ( also called China Tipper Trucks For Sale, Cnhtc Shacman X3000, Shacman New Dump Truck, Dumper Truck Price, Tipper Truck Price, X3000 Shacman 371, Heavy Duty Dump Truck, X3000 8x4 Dump Truck, Shacman 8x4 12 Wheel X3000 Tipper Truck,X3000 Mining Trucks, Cnhtc Shacman X3000), has a dump truck cargo box controlled by a hydraulic lifting mechanism, which can be moved or tilted at a certain angle to facilitate unloading by itself or horizontally.
Shacman 8x4 12 Wheel X3000 Tipper Truck is one of the brand for Shacman, and Shacman mainly organizes the development, production and sale of various dump trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
Shacman 8x4 12 Wheel X3000 Tipper Truck Specifications
|
Truck Model |
SX33156V366C |
|
|
Truck Brand |
Shacman |
|
|
Dimension(Lx W x H)（mm） |
10435x2496x3450 |
|
|
Cargo body size (L*W*H, mm) |
7400x2300x1200 U shape |
|
|
Cargo thickness(mm) |
Bottom:8mm, Side:6mm |
|
|
Lift type of Carriage |
Front Lift |
|
|
Overhang(front/rear) (mm) |
1525/2055 |
|
|
Wheel base (mm) |
1800+3575+1400 |
|
|
Max speed（km/h） |
88 |
|
|
Curb weight（kg） |
15930 |
|
|
Loading Weight（kg） |
35000 |
|
|
Fuel tanker capacity（L） |
400L aluminum alloy |
|
|
Chassis |
850×300（8+7）mm |
|
|
Suspension |
Front and rear multi spring leaf with 4-U bolts |
|
|
Engine (cummins brand)
|
Fuel type |
Diesel |
|
Horse Power |
420hp |
|
|
Emission |
EURO III |
|
|
Model |
ISME420 30，four strokes，6 cylinders in line ,turbocharged,electronic control system |
|
|
Transmission |
Model |
FAST-12JSD200T-B+QH50, 16 forwards and 2 reverse |
|
Brake system |
JACBO engine brake system |
|
|
Steering |
ZF tech left hand drive |
|
|
Front axle |
MAN 9.5 Ton double front axle |
|
|
Rear axle |
MAN 16 Ton Double Reduction ,speed ratio 4.769 |
|
|
Tyre |
12R22.5 |
|
|
Cab |
X3000 flat roof cab, rear window , hydraulic driver seat, four point hydraulic suspension cab, single sleeper , auto air conditioner , manu window, manu cab turning -off , metal bumper ,165Ah battery , radio with MP3 , |
|
|
Other |
Equipped Tarpoulin,two sets filters,two light for free |
|
|
Color |
White |
|
|
Parts |
16 sets brake shoes,8 sets air chamber |
|
Shacman 8x4 12 Wheel X3000 Tipper Truck is mainly used to transport bulk materials (such as sand, soil, ore, etc.) or overall materials. It is mainly used in mines, construction sites, etc. It can be divided into special dump truck, ordinary tipper truck and mining tipper truck.
Shacman 8x4 12 Wheel X3000 Tipper Truck is the most popular dump trucks used a lot in Africa bad road condition.

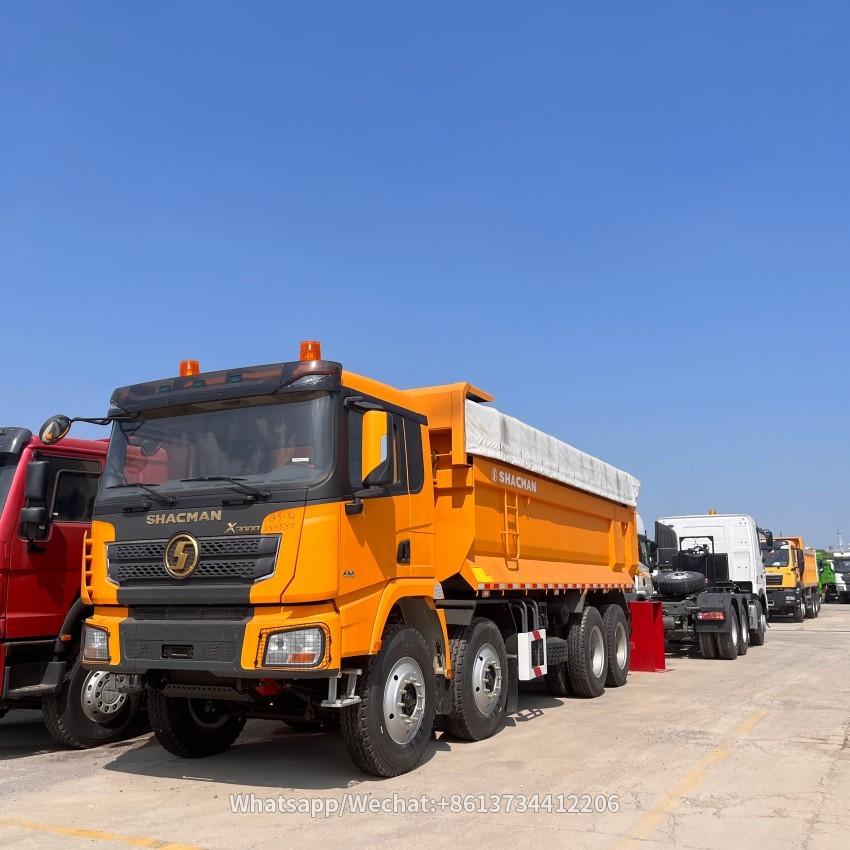

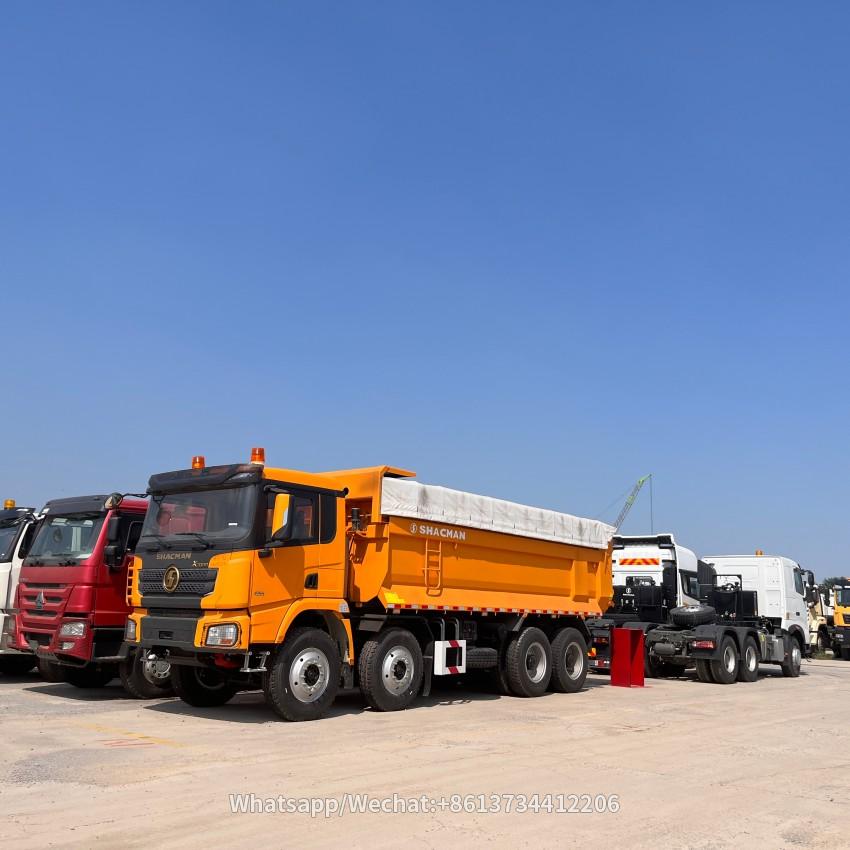

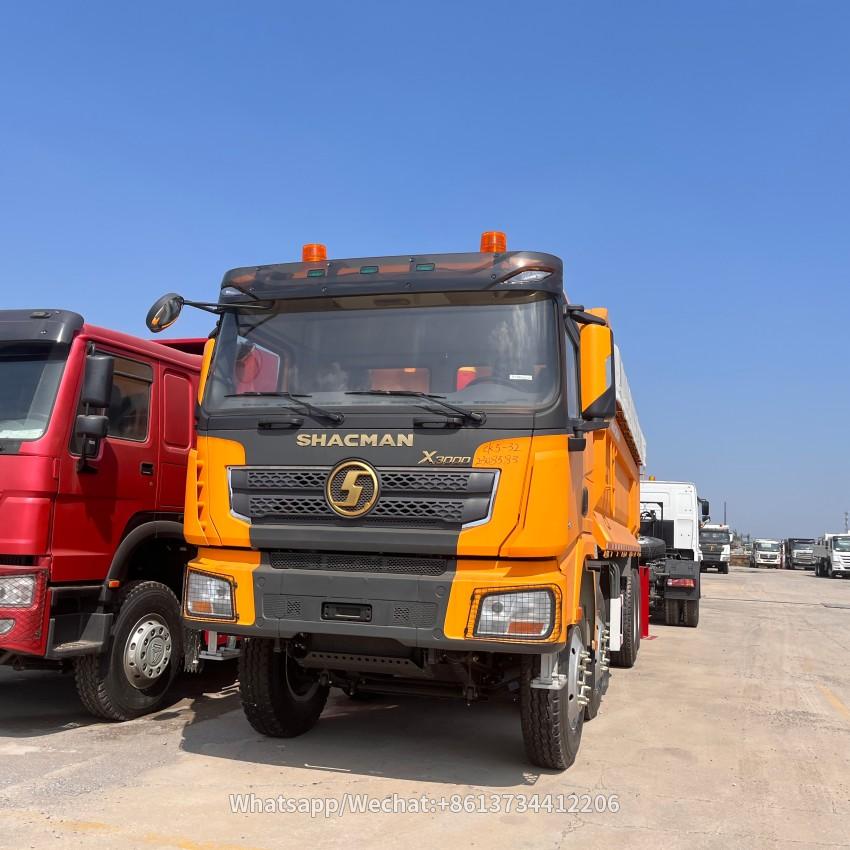

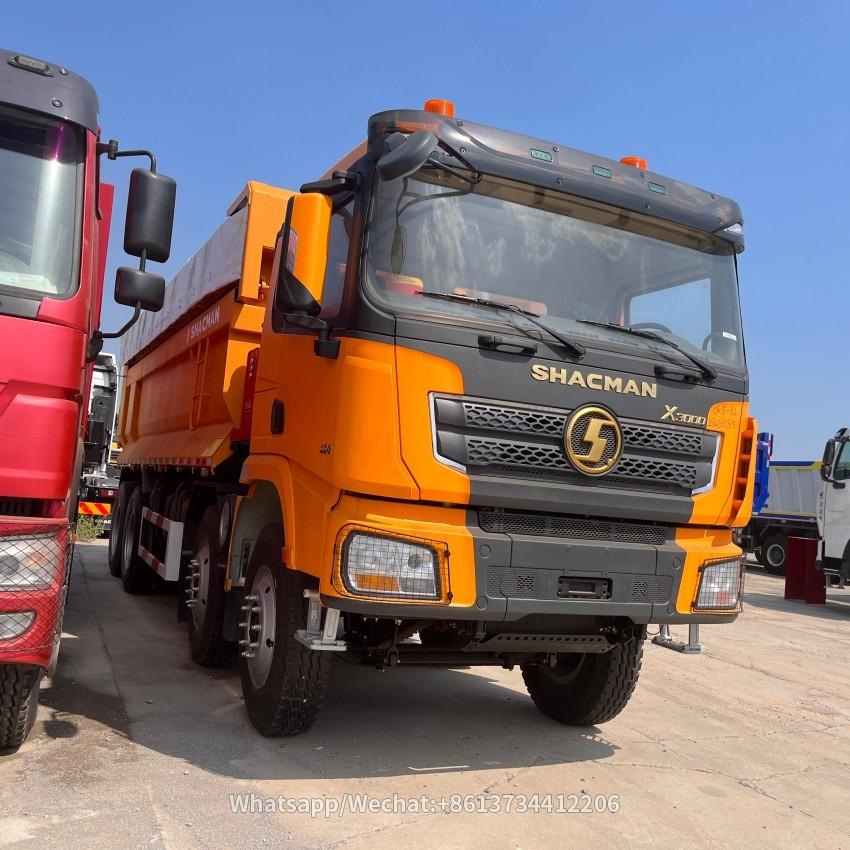

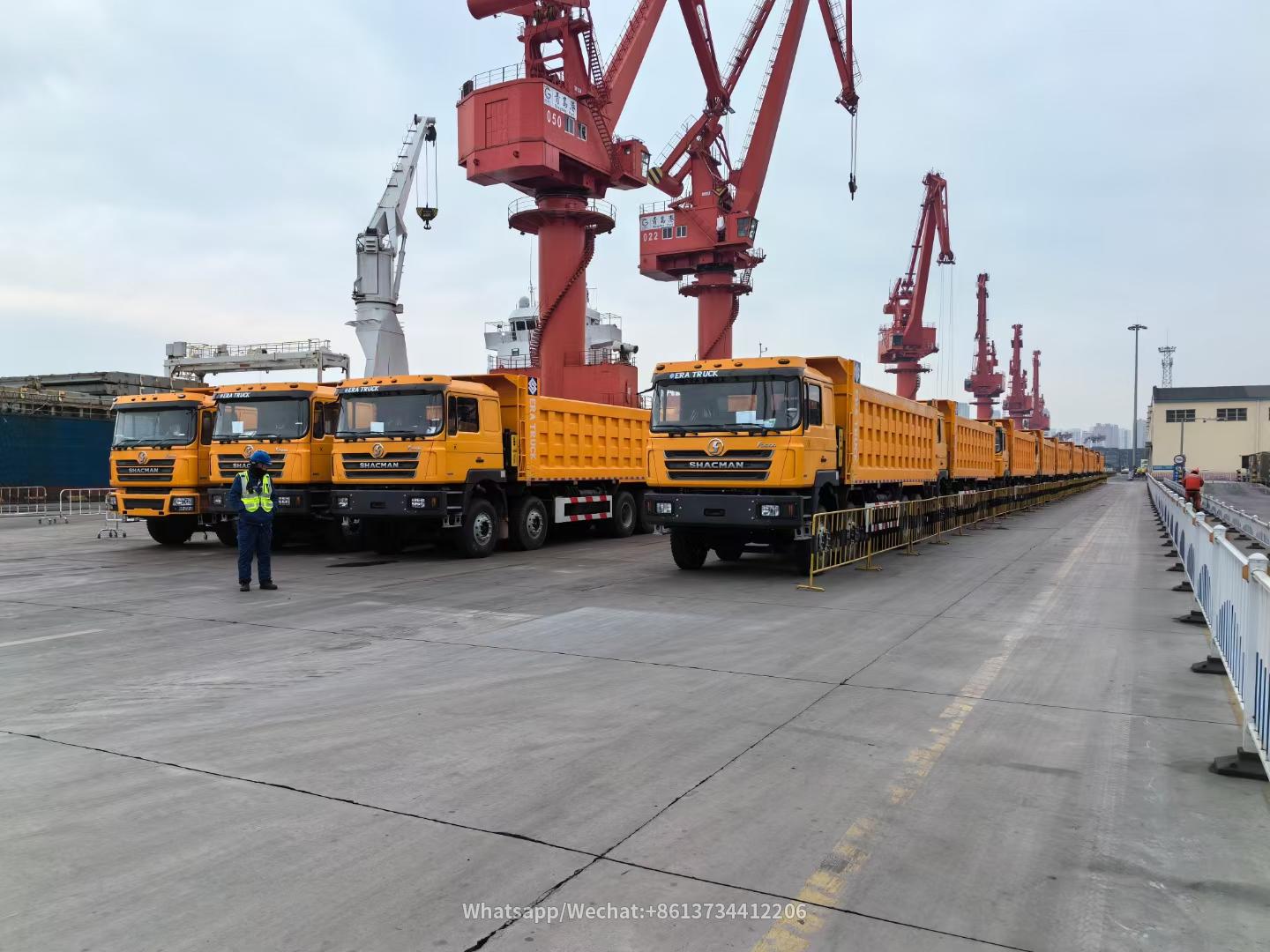

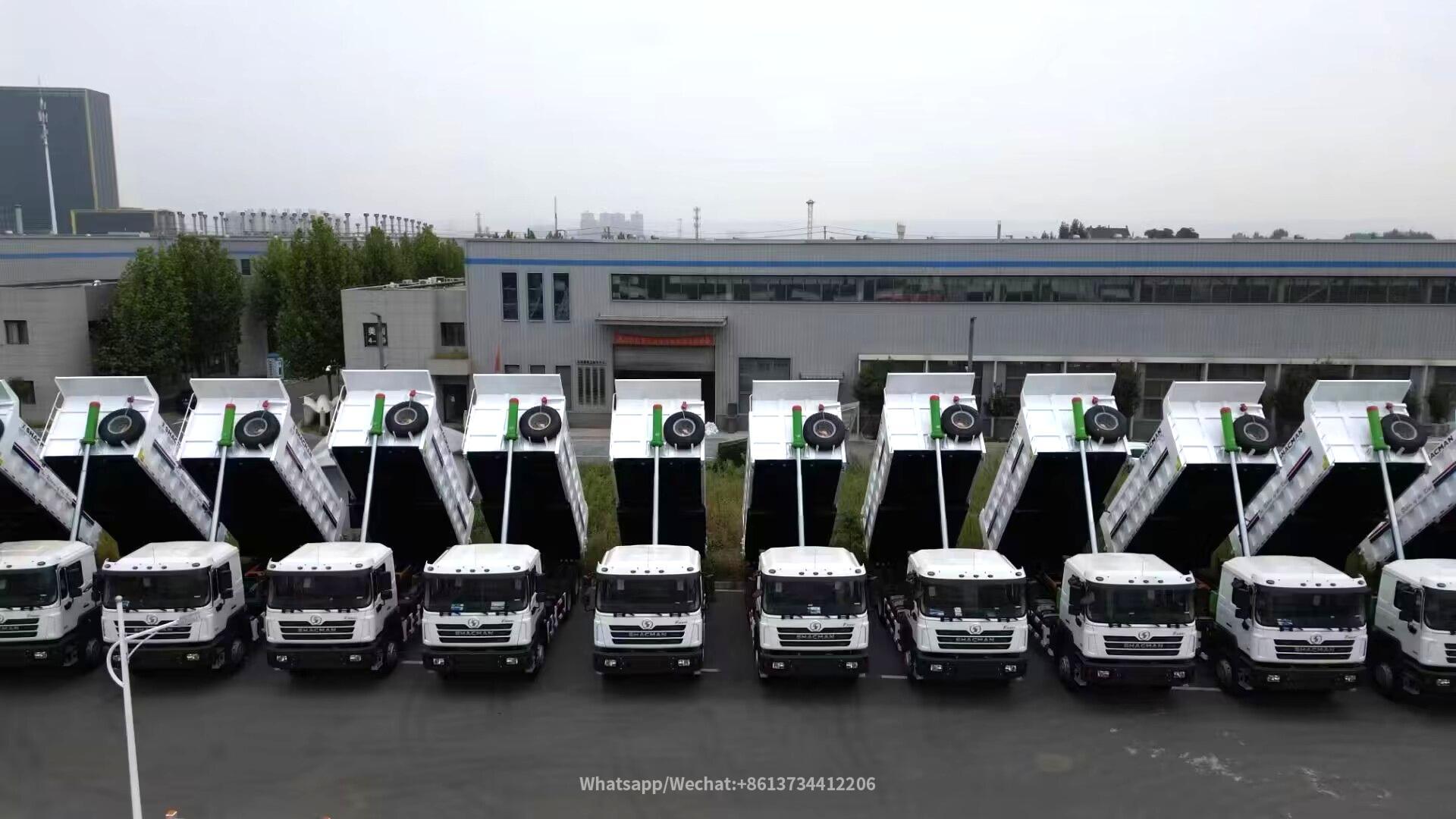

Shacman 8x4 12 Wheel X3000 Tipper Truck Pictures and Delivery
FAQ for Shacman 8x4 12 Wheel X3000 Tipper Truck
Q: Are you Dealer or Factory for Shacman 8x4 12 Wheel X3000 Tipper Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Shacman 8x4 12 Wheel X3000 Tipper Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Shacman 8x4 12 Wheel X3000 Tipper Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Shacman 8x4 12 Wheel X3000 Tipper Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Shacman and two years for Shacman.
Q: I want to be your agent in my country for Shacman 8x4 12 Wheel X3000 Tipper Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Shacman 8x4 12 Wheel X3000 Tipper Truck, especially after-sale service?
A: Shacman/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Shacman 8x4 12 Wheel X3000 Tipper Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Shacman 8x4 12 Wheel X3000 Tipper Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Shacman 8x4 12 Wheel X3000 Tipper Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Shacman 8x4 12 Wheel X3000 Tipper Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Shacman 8x4 12 Wheel X3000 Tipper Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Shacman 8x4 12 Wheel X3000 Tipper Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Shacman 8x4 12 Wheel X3000 Tipper Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Shacman 8x4 12 Wheel X3000 Tipper Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Shacman 8x4 12 Wheel X3000 Tipper Truck:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Shacman 8x4 12 Wheel X3000 Tipper Truck:
“ X3000 Truck Export can provide timely service, the Shacman 8x4 12 Wheel X3000 Tipper Trucktrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order Shacman 8x4 12 Wheel X3000 Tipper Truckand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in Shacman 8x4 12 Wheel X3000 Tipper Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
