Shacman 8x4 50tons Tow Wrecker Truck

300hp

340hp

380hp

400hp

Description

Shacman 8x4 50tons Tow Wrecker Truck Function and Introduction:

Shacman 8x4 50tons Tow Wrecker Truck is Street wrecker power engineering vehicle, also known as a tow truck, is composed of a chassis, a lifting device, a lifting and traction device, a hydraulic system, an electronic control system, a vehicle body and a tool box. It has multiple functions such as lifting, pulling and lifting and traction, and is suitable for clearing obstacles on highways and urban roads.

Shacman 8x4 50tons Tow Wrecker Truck Structure:

How to choose a road tow truck depends on the actual use environment. Different working environments determine the selected tow truck. For example, if you need to lift a broken car that has overturned in a ditch during rescue, you need a flatbed tow truck with a car sling. When choosing a road tow truck, you should also pay attention to the following two points:

Choose the type of tow truck, one-to-one flatbed tow truck, one-to-two flatbed tow truck, towed joint tow truck, towed separated tow truck, full-floor tow truck, semi-floor tow truck, multi-function tow truck, etc.

Choose the size of the tow truck, 3 tons, 4 tons, 8 tons, 16 tons, 20 tons, 30 tons, 50 tons, etc.

Different towoperation environments have different configuration requirements for tow trucks. On the same highway, some sections have more medium-sized trucks and long-distance buses, while others have more medium- and heavy-duty trucks. In this regard, the configuration of tow trucks should be different. The former should be equipped with more medium- and heavy-duty tow trucks with devices that can clear large buses, while the latter should be equipped with super-heavy tow trucks. In the same urban traffic police department, some places need to clear more illegal motorcycles, while others need to clear more illegal cars. In this regard, the former should be equipped with a tow truck with a motorcycle lifting platform, while the latter should be equipped with a clamp-type tow truck.

Shacman 8x4 50tons Tow Wrecker Truck Specifications

SER 序号	ITEM 项目	PARAMETER 参数	UNIT 单位	DATA 数据	REMARK 备注
1	WHOLE VEHICLE 整车	WHOLE MODEL 整车型号		SX5311TQZSX
		OVERALL DEMENSION 整车尺寸	MM 毫米	11430×2500×3300
		CURB WEIGHT 整备重量	KG 千克	20800
		MAX GRADABILITY WHEN FULL LOADING 最大负载时最大爬坡度	DEG 度	30°
		MAX SPEED 最大时速	KM/H 千米/时	102
		FRONT/REAR HANGING 前悬/后悬	MM 毫米	1500/2180
		CLOSE/DEPARTURE ANGLE 接近角/离去角	DEG 度	11/11/12
		LEAF SPRING 钢板弹簧片数	PCS 片	14/18
		DRIVE WHEEL 驱动轮		8*4
2	CHASSIS 底盘	CHASSIS MODEL 底盘型号		SX1315HR456C
		MANUFACTURER 制造商		Shacman Motors Co.,Ltd. 陕西汽车集团有限责任公司
		MANUFACTURE DATE 制造时间		2018
		WHEELBASE 轴距		1800+4575+1400
		FRONT AXLE 前桥		7.5T MAN
		REAR AXLE 后桥		13T MAN
		OIL TANK 油箱		400L Aluminum tank
		TYRE SPECIFICATION 轮胎规格		12.00R-20
		NO OF TYRES 轮胎数	PCS 条	10+1 spare tyre
3	ENGINE 发动机	ENGINE MODEL 发动机型号	ISME345-30
		MANUFACTER 厂商	Xian Cummins Engine Co.,Ltd. 西安康明斯发动机有限公司
		ENGINE HORSEPOWER 发动机功率	PS 马力	345
		DISPLACEMENT 排量	ML 毫升	10800
		JACOB BRAKE JACOB制动	Equipped
		EMISSION STANDARD 排放标准	Euro III
4	GEARBOX 变速箱	NO OF GEARS 档位数	10 forward gears and 1 reverse
		MODEL 款式	10JSD180
		RATIO 速比	4.769
		CRANE SYSTEM 吊臂系统	Max lifting weight:50000kg
			When the full retraction angle is 30°-lifting capacity:18000kg
			When the full extension angle is 30°-lifting capacity:9000kg
			length of the boom:5880mm
			Cylinder telescopic stroke:6000mm
			Max Lifting height:12300mm
			Maximum working radius:10710mm
			Number of boom sections:3
			Boom angle:0～60°
			Rotation angle:360°
		UNDER LIFT STRUCTURE 托举结构	Max. Lifting weight(upper&whole vehicle):38000kg
			Full extension of max lifting weight(upper&whole vehicle):12500kg
			Effective length of the arm:3650mm
			Telescopic stroke of the arm:1750mm
			Lifting folding angle:-7～16°
			folding angle:-7～92°
			The maximum distance from the fork to the ground:1835mm
		LEGS 支腿	Front legs type:Under-mounted H-type
			Rear legs type:L-type
			Horizontal span of front legs:6600mm
			Horizontal span of rear legs:4080
			Front and rear leg longitudinal span:5550
		WINCH 绞盘	Quatity:2pc
			Rated tractionof each one:250Kn
			Wire rope specification:22-6x25Fi+IWR1870
			Wire rope diameter:￠28
			Wire rope length:60
			Minimum line speed of wire rope:5m/min
6	CAB 驾驶室	MODEL 款式	M3000 Long cabin with bed
		STEERING 转向	Left hand drive
		SEATS 座位	3
		COLOR 颜色	According to you
		A/C 空调	Equipped
		OTHERS 其他	With FM RADIO,MP3 interface,Spare tire stents and so on

Shacman 8x4 50tons Tow Wrecker Truck can make the volume as per customer want, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

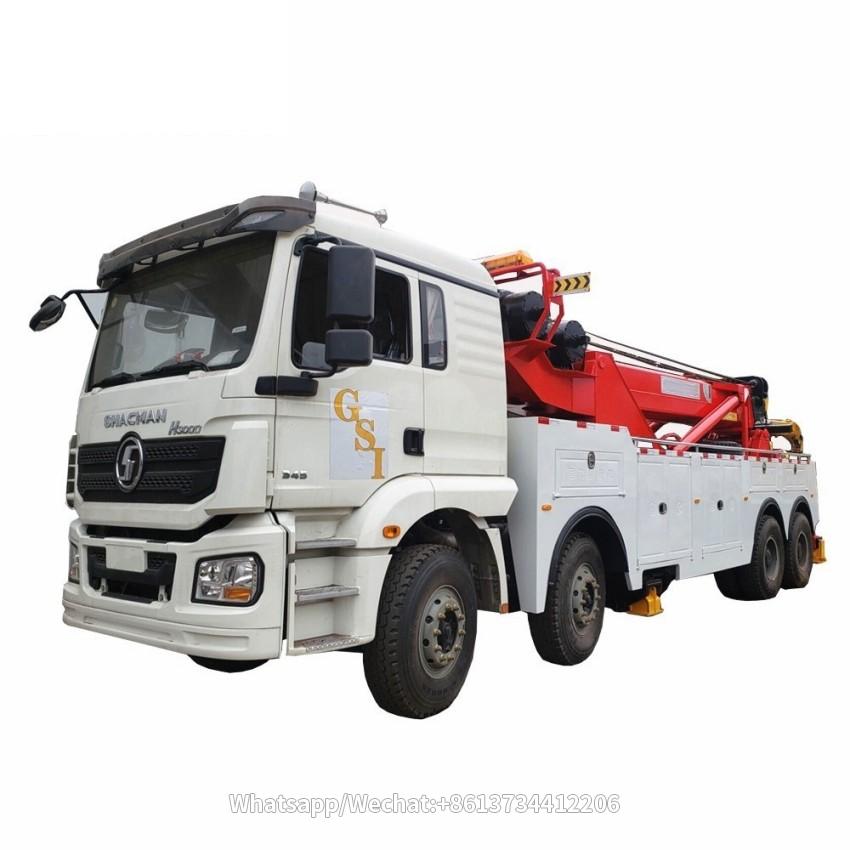

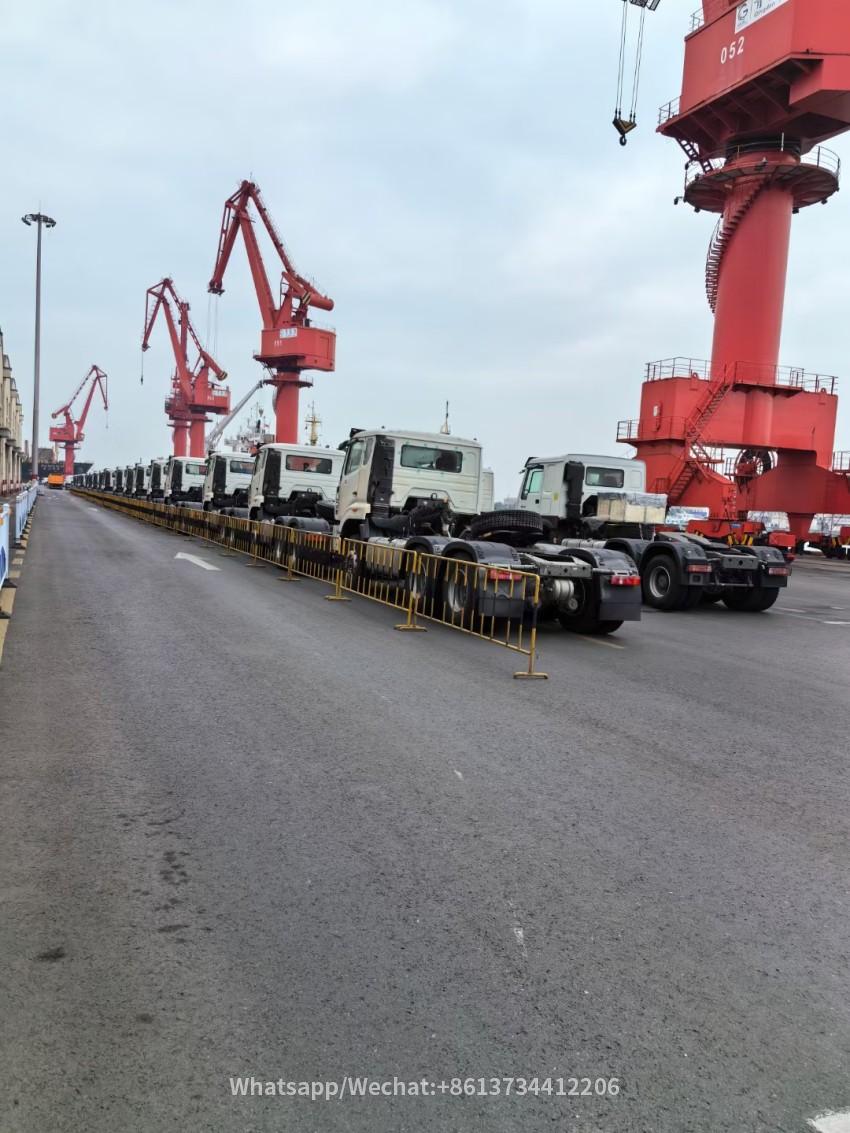

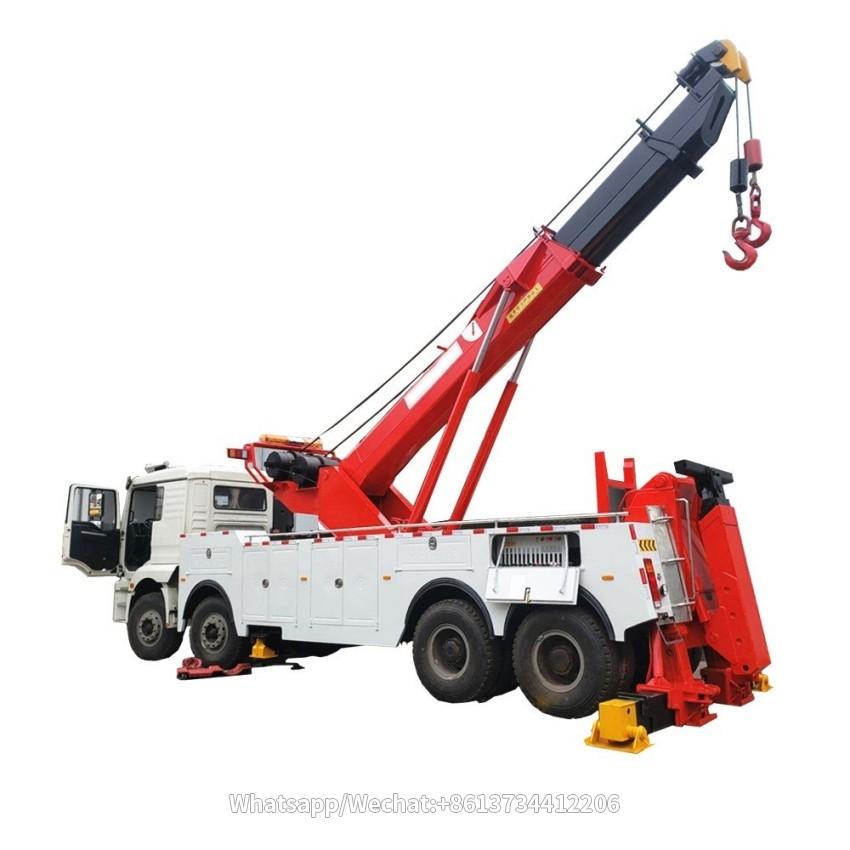

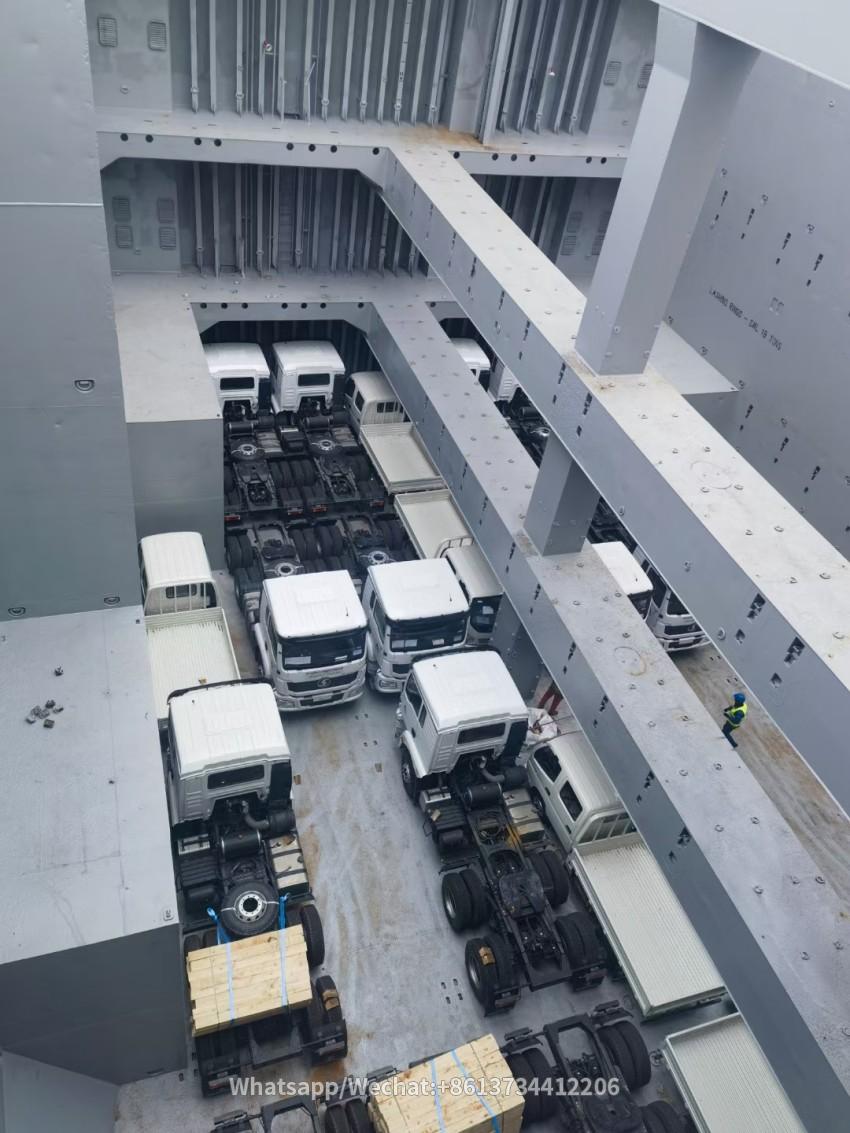

Shacman 8x4 50tons Tow Wrecker Truck Pictures and Delivery
