Description
Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck Function and Introduction:
Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck consists of a truck chassis and a special device for mixing and transporting concrete. During transportation, the mixing drum will always be kept rotating to ensure that the transported concrete will not solidify. After transporting the concrete, the inside of the mixing drum is usually rinsed with water to prevent the hardened concrete from taking up space and increasing the volume of the mixing drum. During use, it is not only convenient to adjust its position, but also its frame can be turned over during welding. At the same time, during the reverse process, it can prevent workers from operating it incorrectly, causing the flipping motor to start and drive the frame to flip, threatening the safety of the workers, thereby increasing safety. Its working principle is to take out the power of the car chassis through the power take-off device, and drive the variable pump of the hydraulic system to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then drives the reducer, and the reducer drives the mixing device to mix the concrete. Concrete mixer trucks are widely used in engineering construction.
Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck is output by the full-power power take-off of the second-class chassis and transmitted to the hydraulic pump through the transmission shaft. The hydraulic pump generates hydraulic energy and transmits it to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and transmits it to the mixing tank through the speed reducer to reduce the speed and increase the torque. By adjusting the servo handle angle of the hydraulic pump (double-acting variable), the forward and reverse rotation of the mixing tank and the speed can be achieved to realize the operations of concrete loading, mixing, stirring, and discharging.
Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck Specifications
|
Driving type驱动形式 |
6X4 |
|||
|
Wheelbase(mm)轴距 |
3775+1400 |
|||
|
Max weight(T)整备总质量 |
≤35 |
|||
|
Max Speed（km/h)最高车速 |
93 |
|||
|
Dimensions(L×W×H)外廓尺寸 |
8375x2490x3450 |
|||
|
Engine（WEICHAI)发动机 |
Model型号 |
WP10336E53+PTO(水寒宝/进气加热) |
||
|
ENGINE |
Fuel Type油箱类型 |
Diesel |
||
|
Emission 排放 |
Euro V |
|||
|
Rated output(kw/rpm) |
257/1900 |
|||
|
Max torque（N.m）最大扭矩 |
1600 |
|||
|
Displacement (L)排量 |
9.726L |
|||
|
Fuel Tanker Capacity（L）油箱容量 |
380L |
|||
|
Clutch离合器 |
Model型号 |
φ430 diaphragm-spring type |
||
|
Transmission |
|
（Fast）12JSD160TA |
||
|
Transmission Mode变速箱型号 |
||||
|
Driving Steering |
Driving Steering方向盘 |
ZF技术，左驾 |
||
|
Frame |
Frame 车架 |
850x300（8+7） |
||
|
Front Axle 前轴 |
7.5T MAN |
|||
|
|
||||
|
Rear Axle 后桥 |
16T MAN Double bridge Speed ratio5.262 |
|||
|
|
||||
|
Tire轮胎 |
12.00R22.5（轮辋装饰罩）Decorative wheel rim |
|||
|
Qty Of Tire轮胎数量 |
10+1 |
|||
|
Battery 电池 |
180AH |
|||
|
Cab驾驶室 |
Medium-length flat-top cab, heated cab, hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, splash-proof fender, three yellow decorative lights, two white clearance lights, electronically controlled automatic constant temperature air conditioning, manual window shaker, manual flip, Fleetguard air filter, metal bumper, WABCO six-channel ABS, daytime running lights, GLONASS emergency call system, front and rear protection, 2 kg fire extinguisher, parking wedge, remote throttle controller |
|||
|
|
||||
|
BOX |
10m³ mixing tank, mixing truck drum material Q345/520JJ, mixing drum wall thickness 5mm head wall thickness 6mm, front and rear supports, pressure water tank (air pressure water supply), closed hydraulic system (Eaton hydraulic pump, Eaton hydraulic motor, TOP P68 reducer, 18L Changzhou Kaitong radiator), 3-point linkage control mechanism, spiral lifting chute control mechanism, 2 sets of upper and lower high-pressure washing devices, upper transmission shaft protection cover; side marker lights, rear clearance lights, 3M body reflective logo, vehicle tail logo plate, side protection, rear anti-drilling, integral mudguard, rear working lighting, upper spray "Shaanxi Automobile Logo" and "SHACMAN" logo, tank body exterior primer and topcoat. |
|||
Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truckhave both heavy duty and light duty, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

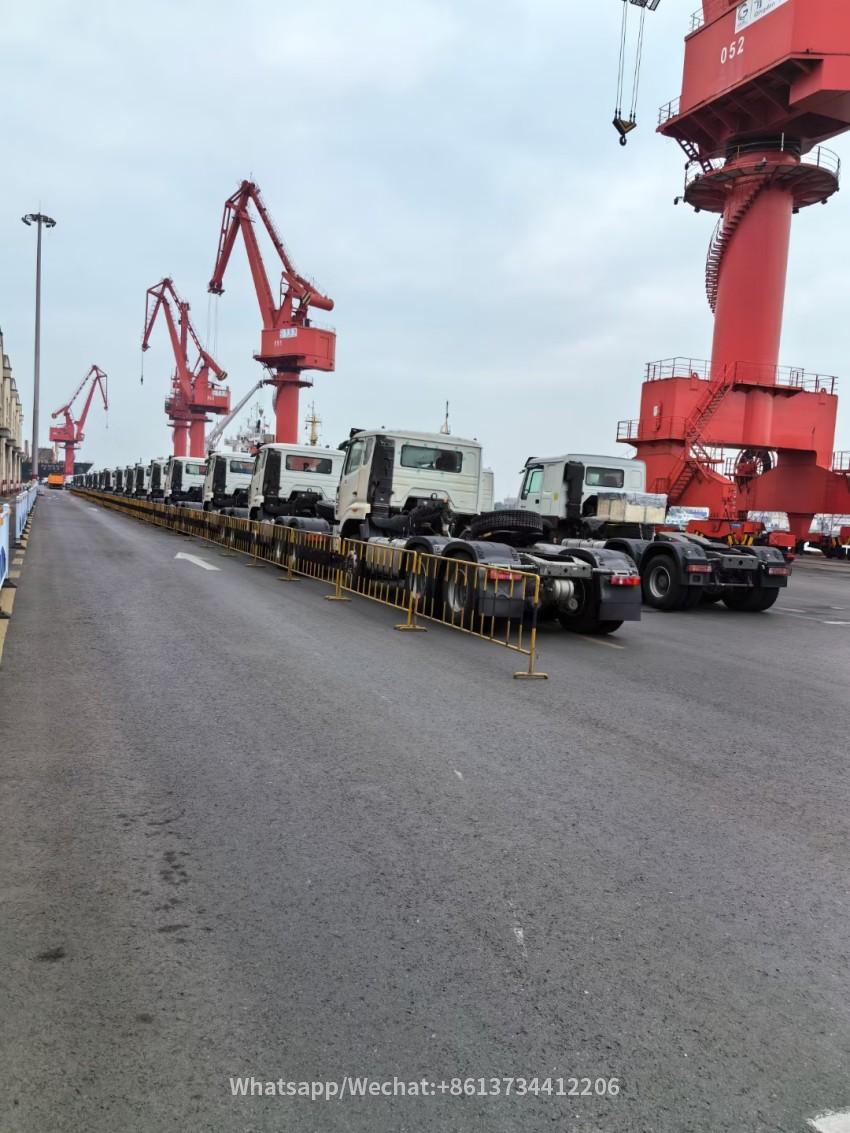

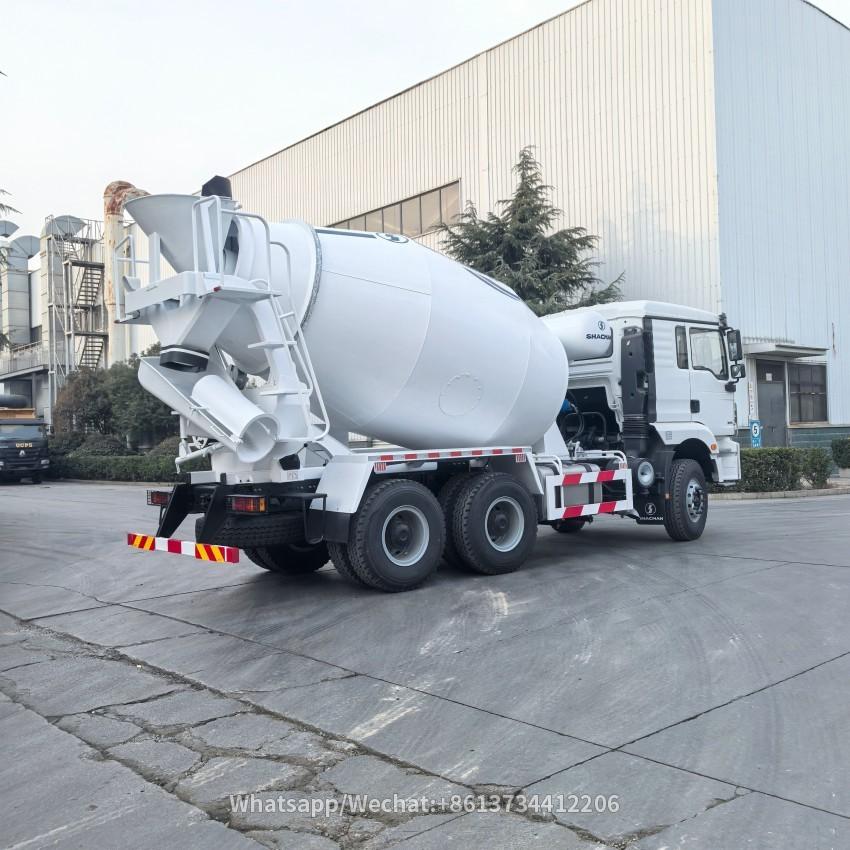

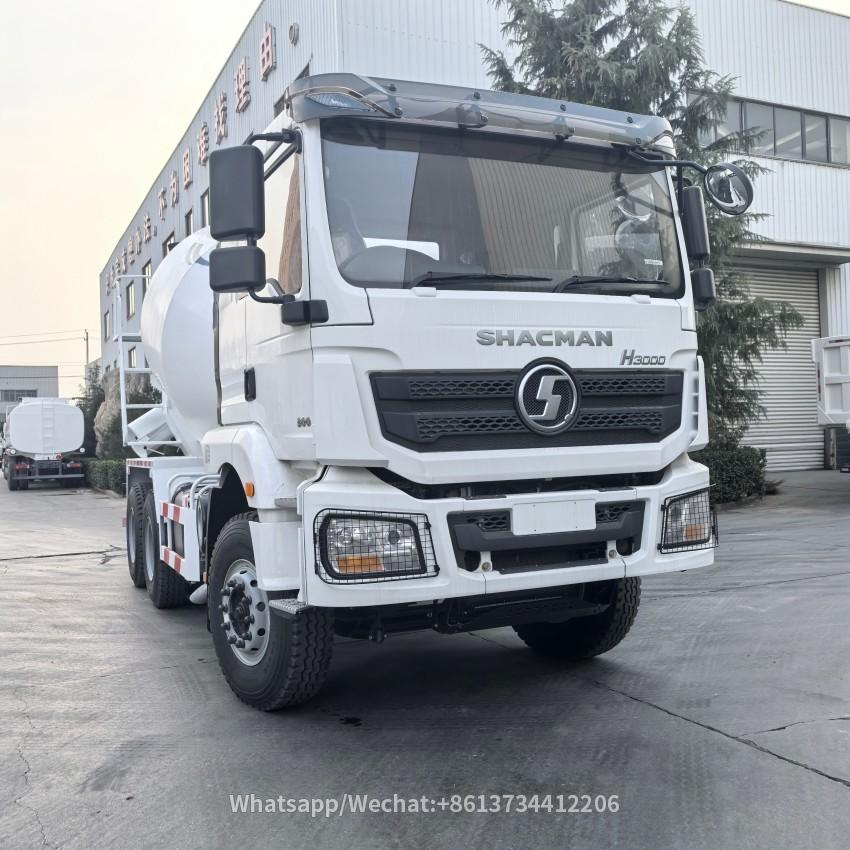

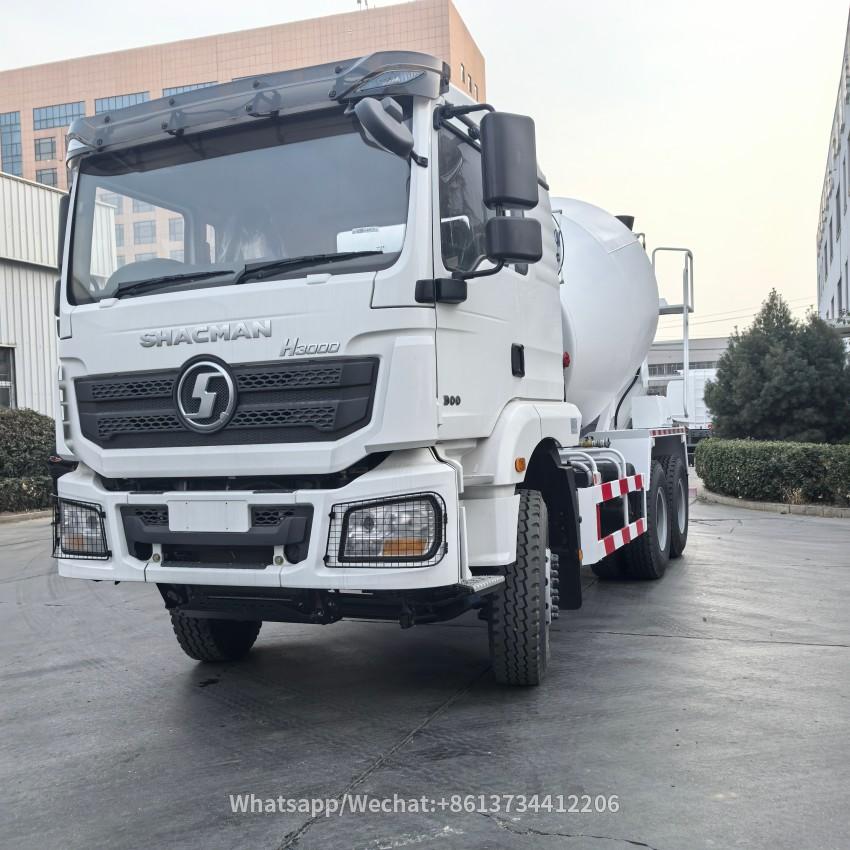

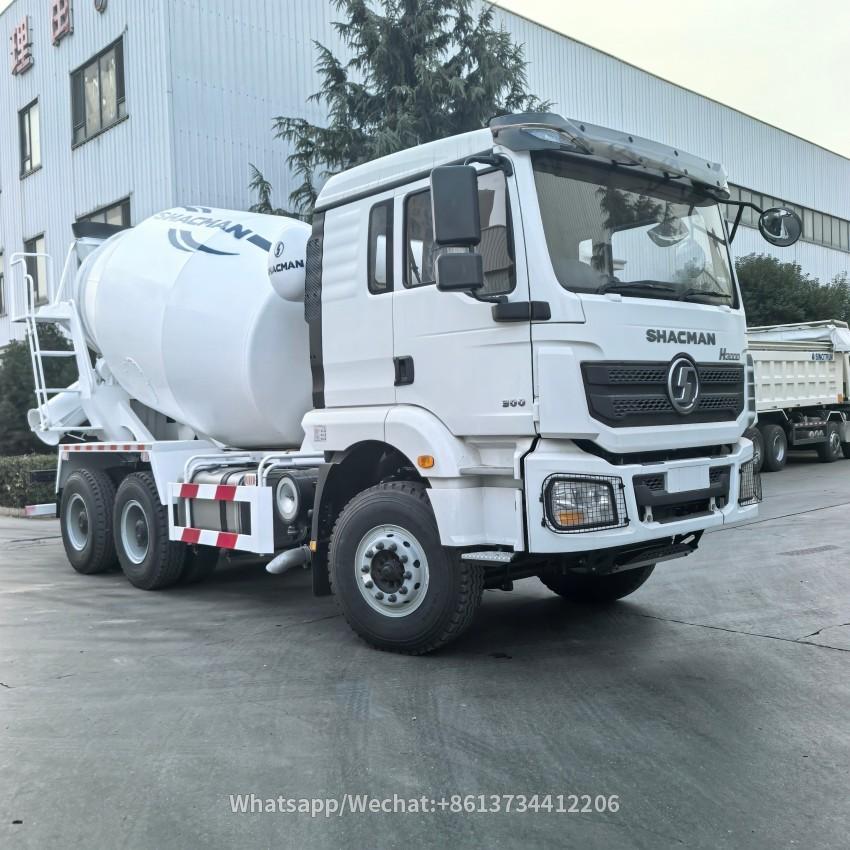

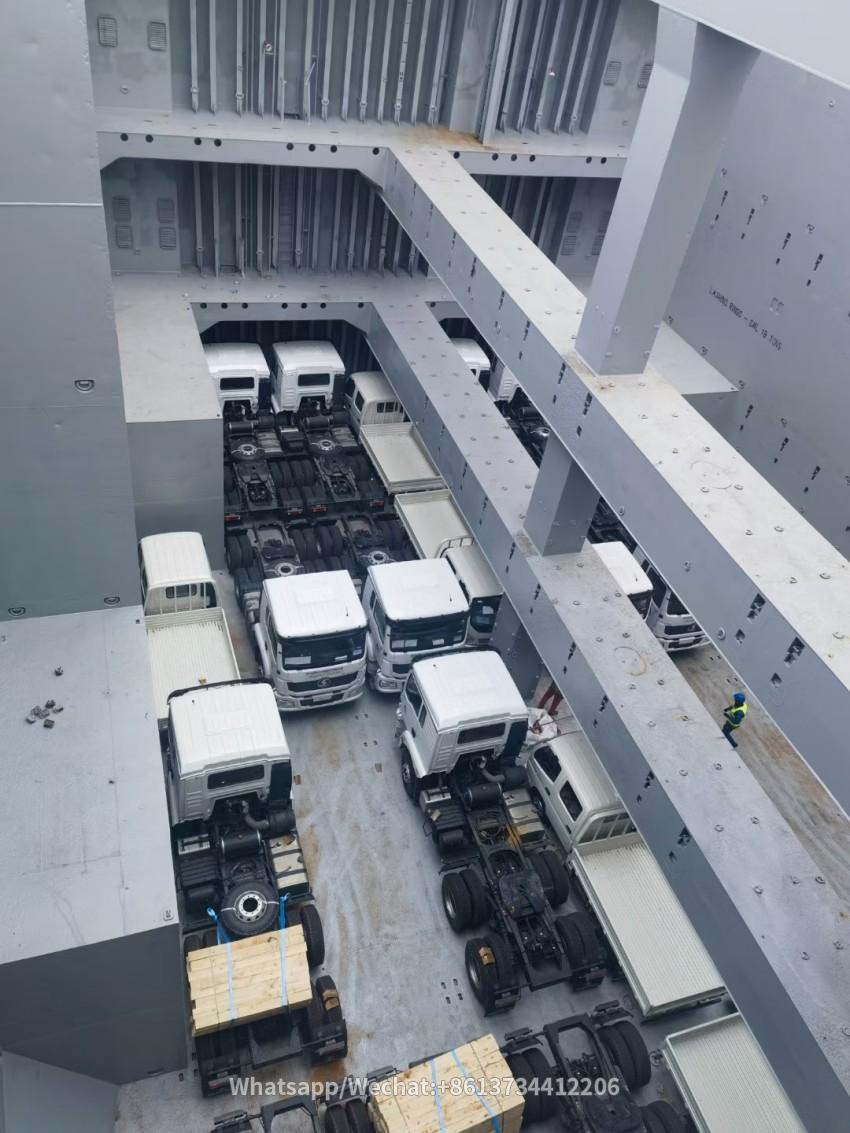

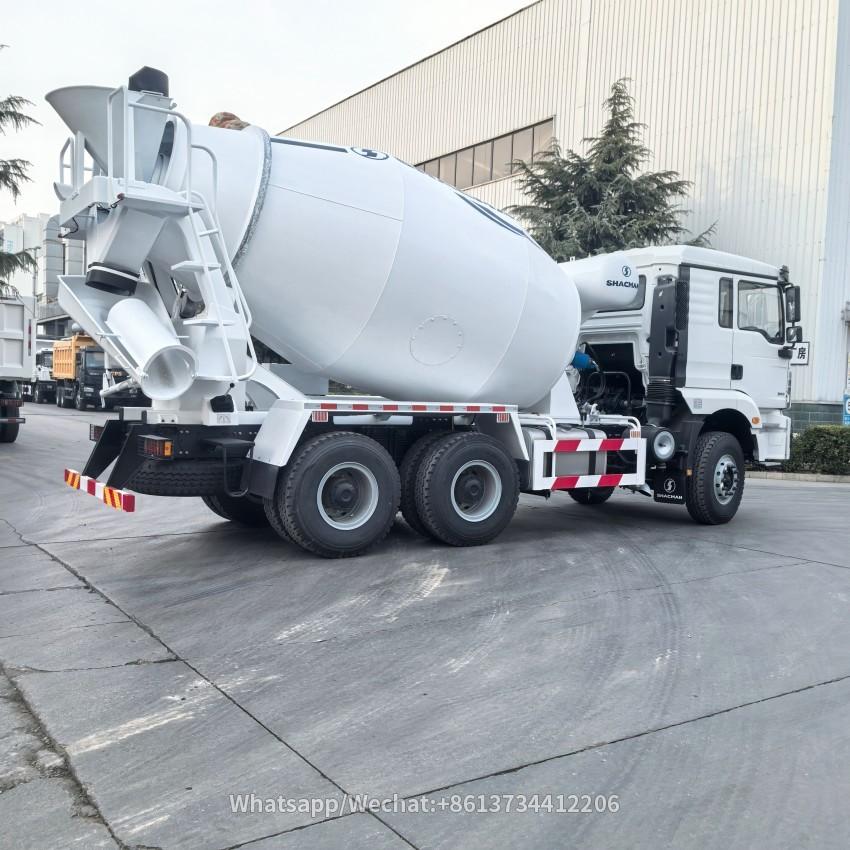

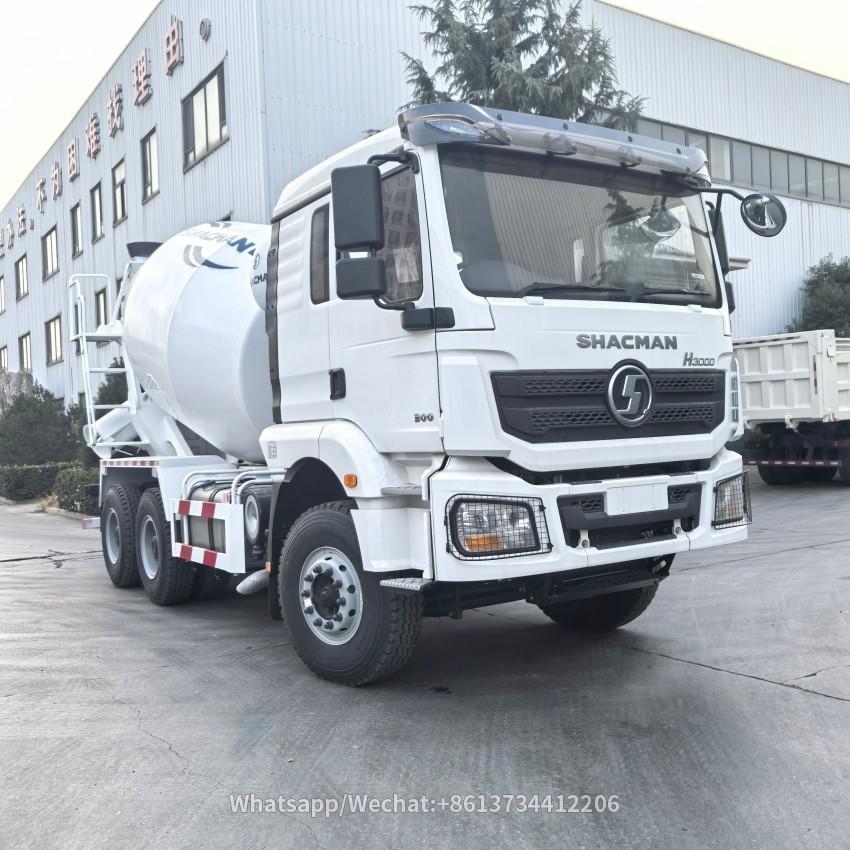

Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck Pictures and Delivery
FAQ for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck
Q: Are you Dealer or Factory for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Shacman and two years for Shacman.
Q: I want to be your agent in my country for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck, especially after-sale service?
A: Shacman/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck::
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck::
“ H3000 Truck Export can provide timely service, the Shacman H3000 8 9 10 CBM Transit Concrete Mixer Trucktrucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”
--Mr.Sady
“ I order Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truckfrom H3000 Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”
--Mr.Aman
If you are interested in Shacman H3000 8 9 10 CBM Transit Concrete Mixer Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
