Description
Sinotruk 12 Wheeler N7 Dumper Truck Function and Introduction:
Sinotruk 12 Wheeler N7 Dumper Truck ( also called China Tipper Trucks For Sale, Cnhtc Sinotruk Howo, Sinotruk New Dump Truck, Dumper Truck Price, Tipper Truck Price, Howo Sinotruk 371, Heavy Duty Dump Truck, Howo 8x4 Dump Truck, Sinotruk 12 Wheeler N7 Dumper Truck,Howo Mining Trucks, Cnhtc Sinotruk Howo), has a dump truck cargo box controlled by a hydraulic lifting mechanism, which can be moved or tilted at a certain angle to facilitate unloading by itself or horizontally.
Sinotruk 12 Wheeler N7 Dumper Truck is one of the brand for SINOTRUK, and SINOTRUK mainly organizes the development, production and sale of various dump trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
Sinotruk 12 Wheeler N7 Dumper Truck Specifications
Sinotruk 12 Wheeler N7 Dumper Truck
Truck Model
ZZ3317V356JB1
Truck Brand
SINOTRUK –HOWO
Driving Type
Left/Right Hand Driving
Dimension(Lx W xH)（unloaded）（mm）
11050x2496x3450
Cargo body size (L*W*H, mm)
7300x2300x1800, 30.2M3
Cargo body thickness(mm)
bottom:8mm, side:6mm
Lift type of Carriage
Front Lift, optional HYVA brand
Approaching angle/Departure angle
19/19
Overhang(front/rear) (mm)
1500/2200
Wheel base (mm)
1800+4200+1350
Max speed（km/h）
75
Curb weight（kg）
15440
Total weight(kg)
40000
Fuel tanker capacity（L）
300L
Fuel consumption(L/km)
20-40 L/100 km
Clutch
Single-plate dry clutch Φ430mm
Engine Model
(Steyr technology, made in China)
Fuel type
Diesel
Horse Power, max（kw/rpm）
371HP
Emission
EURO II
Model
WD615.47. water-cooled，four strokes，6 cylinders in line with water cooling，directly injection
Transmission
Model
HW19710,10 forwards and 2 reverse
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
Auxiliary brake
Engine exhaust brake
Steering system
Model
ZF8098
hydraulic steering with power assistance
Front axle
HF9, Steering with double T-cross section beam
Loading capacity: 9000kg
Rear axle
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Loading capacity:13000kg
Color
Optional
Tire
12.00R20 Radial tires
Tire quantity
12+1 spare=13 tires
Electrical system
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Cab
HOWO H77L cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Ratio:3.93/4.42/4.80/5.73
Sinotruk 12 Wheeler N7 Dumper Truck is the most popular dump trucks used a lot in Africa bad road condition.

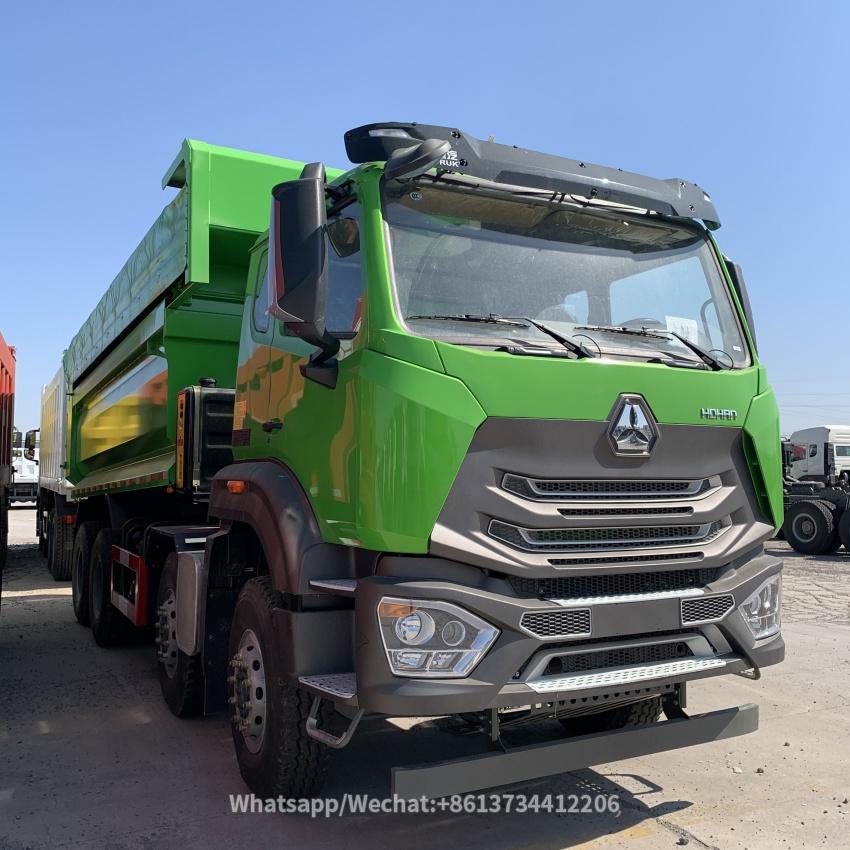

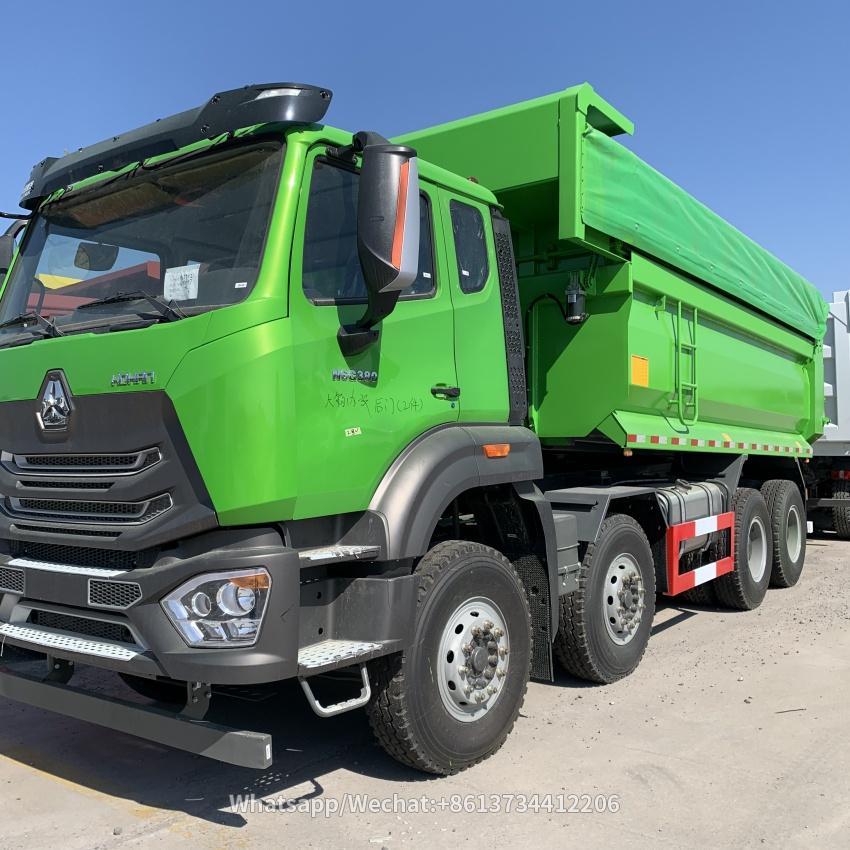

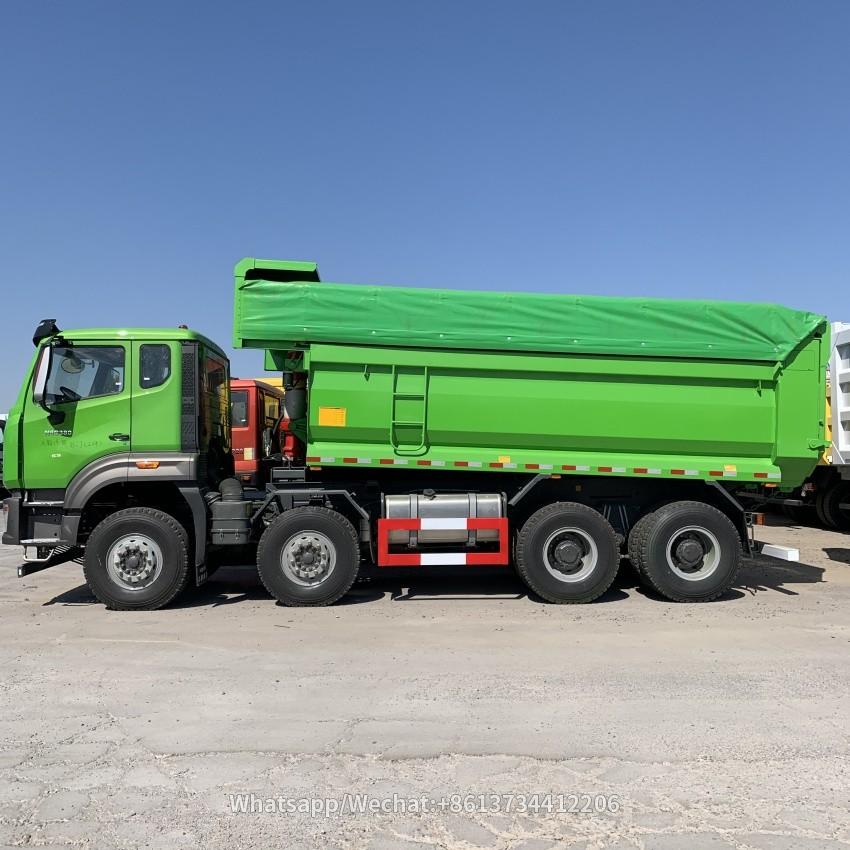

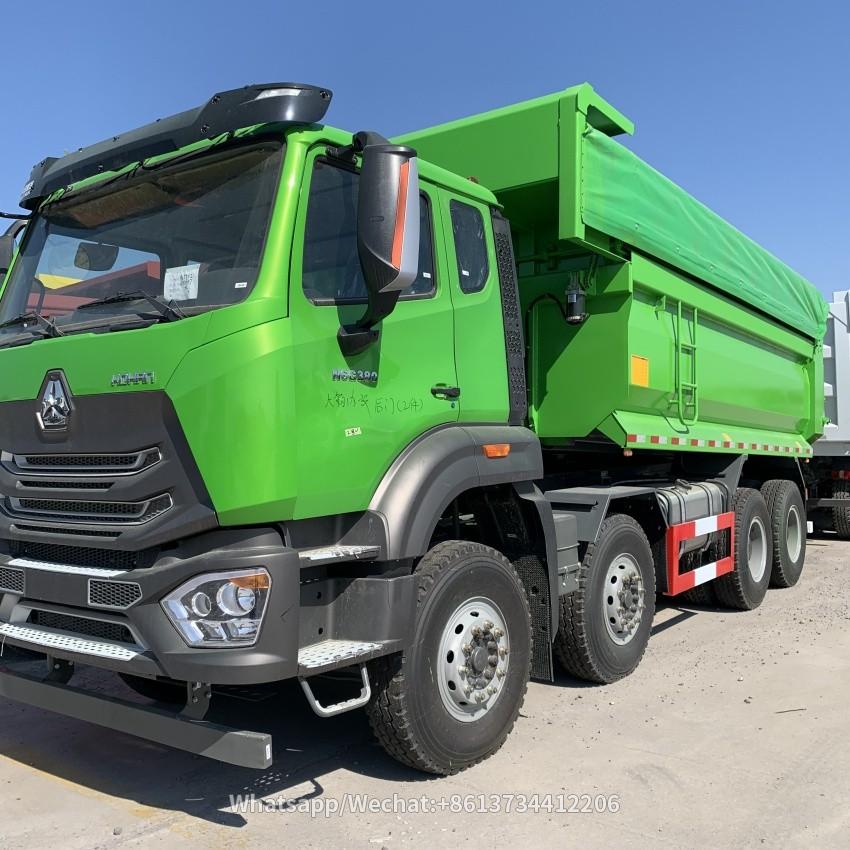

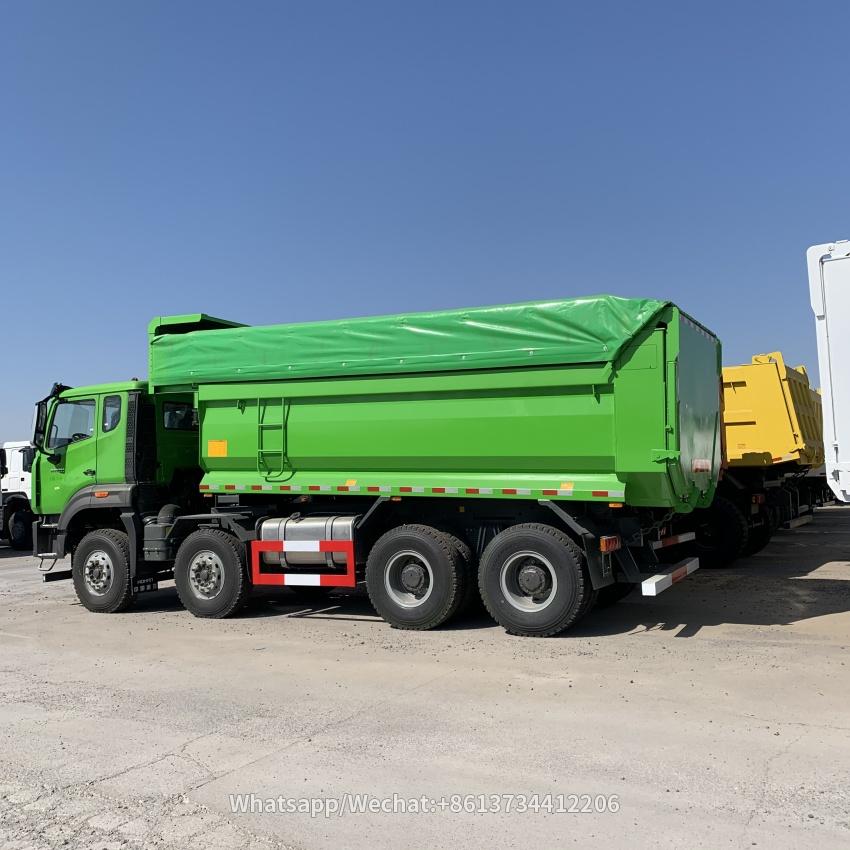

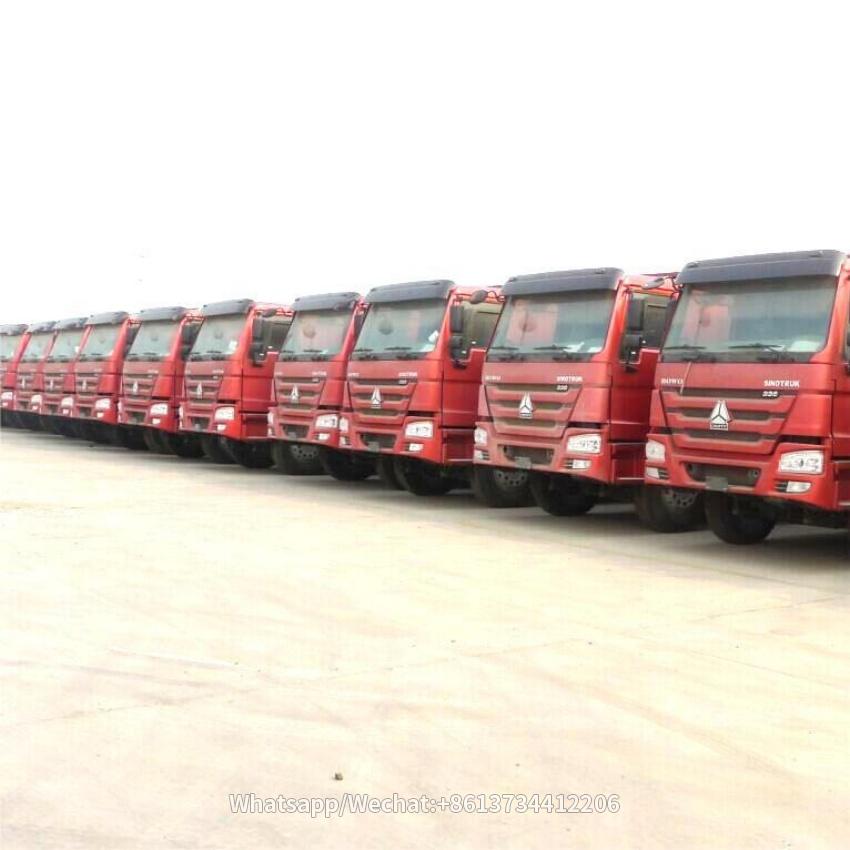

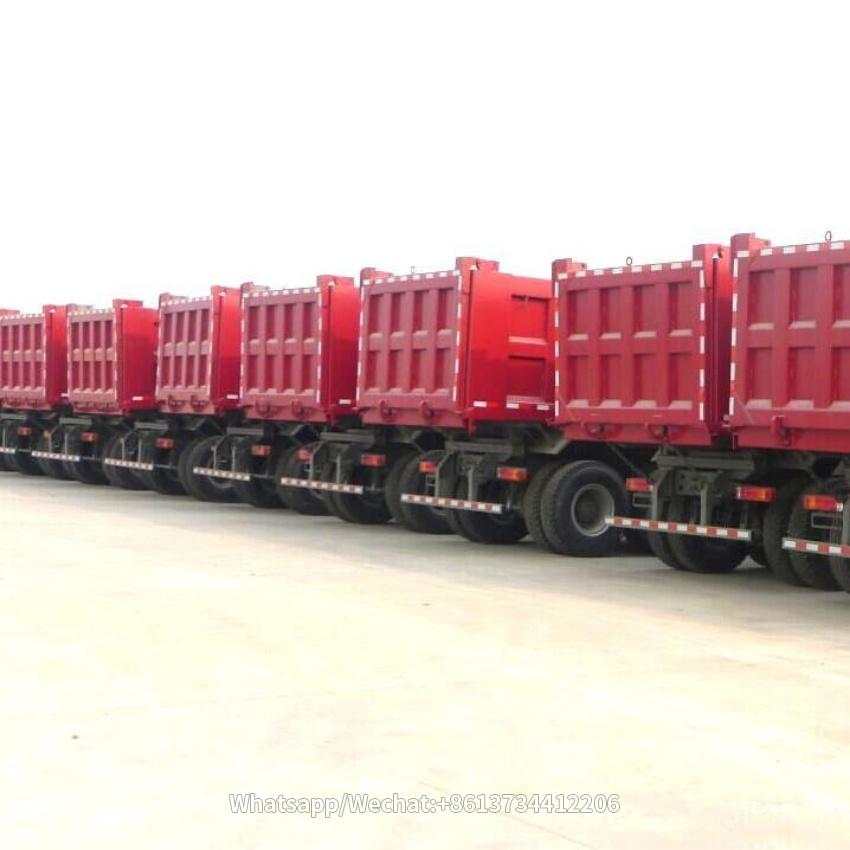

Sinotruk 12 Wheeler N7 Dumper Truck Pictures and Delivery
FAQ for Sinotruk 12 Wheeler N7 Dumper Truck
Q: Are you Dealer or Factory for Sinotruk 12 Wheeler N7 Dumper Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruk 12 Wheeler N7 Dumper Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruk 12 Wheeler N7 Dumper Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruk 12 Wheeler N7 Dumper Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruk 12 Wheeler N7 Dumper Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruk 12 Wheeler N7 Dumper Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruk 12 Wheeler N7 Dumper Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Sinotruk 12 Wheeler N7 Dumper Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Sinotruk 12 Wheeler N7 Dumper Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Sinotruk 12 Wheeler N7 Dumper Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Sinotruk 12 Wheeler N7 Dumper Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruk 12 Wheeler N7 Dumper Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruk 12 Wheeler N7 Dumper Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Sinotruk 12 Wheeler N7 Dumper Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Sinotruk 12 Wheeler N7 Dumper Truck:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Sinotruk 12 Wheeler N7 Dumper Truck:
“ Howo Truck Export can provide timely service, the Sinotruk 12 Wheeler N7 Dumper Trucktrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order Sinotruk 12 Wheeler N7 Dumper Truckand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in Sinotruk 12 Wheeler N7 Dumper Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
HOWO TRUCK EXPORT CO., LTD
Address: No. 77, Daweizhuang East Road, Tianqiao District, Jinan City, Shandong Province
Contact: Betty Han (general manager)
Tel/whatsapp/Wechat:+86-13734412206
Email:manager@howotruckexport.com
CEO
Tel/Wechat:+86-13793158722
Email:CEO@howotruckexport.com
Waiting for your inquiry.
