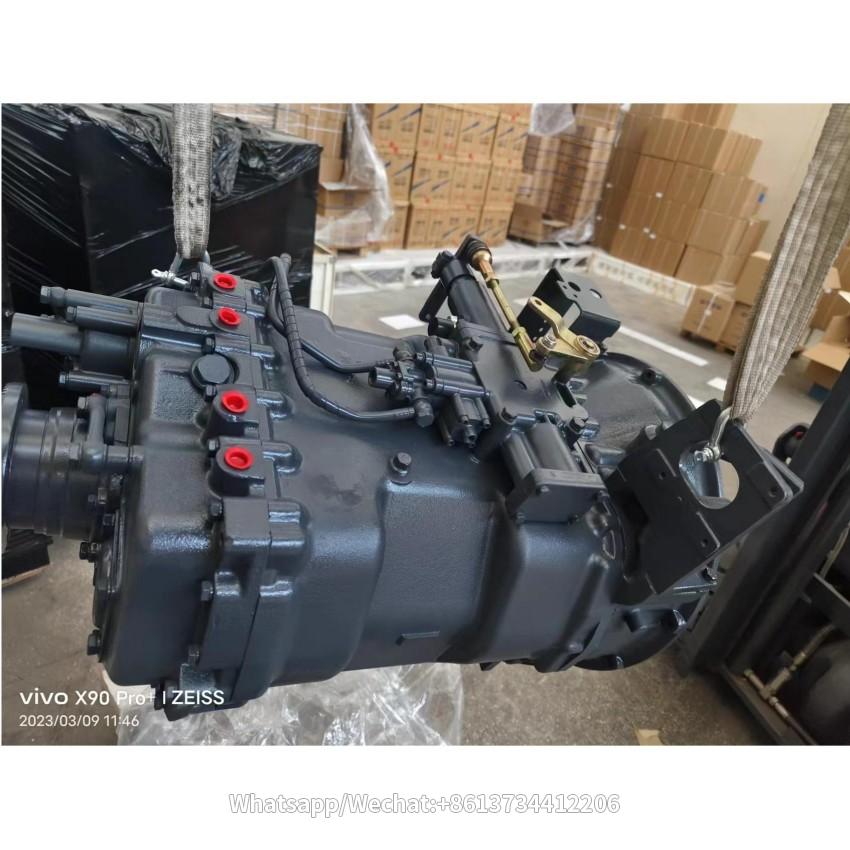

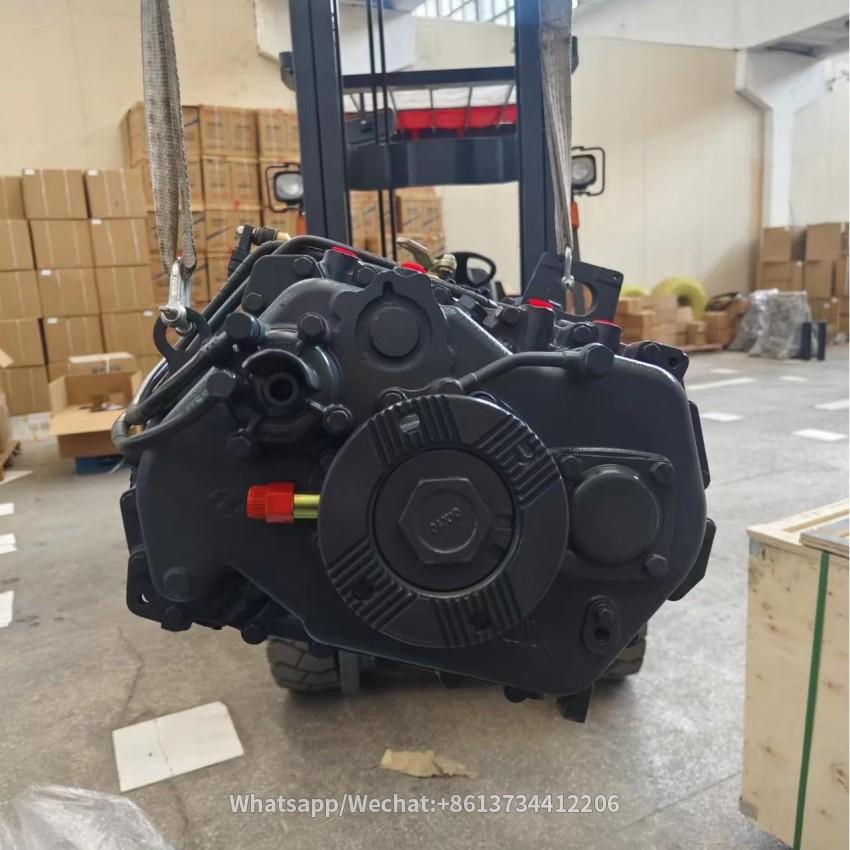

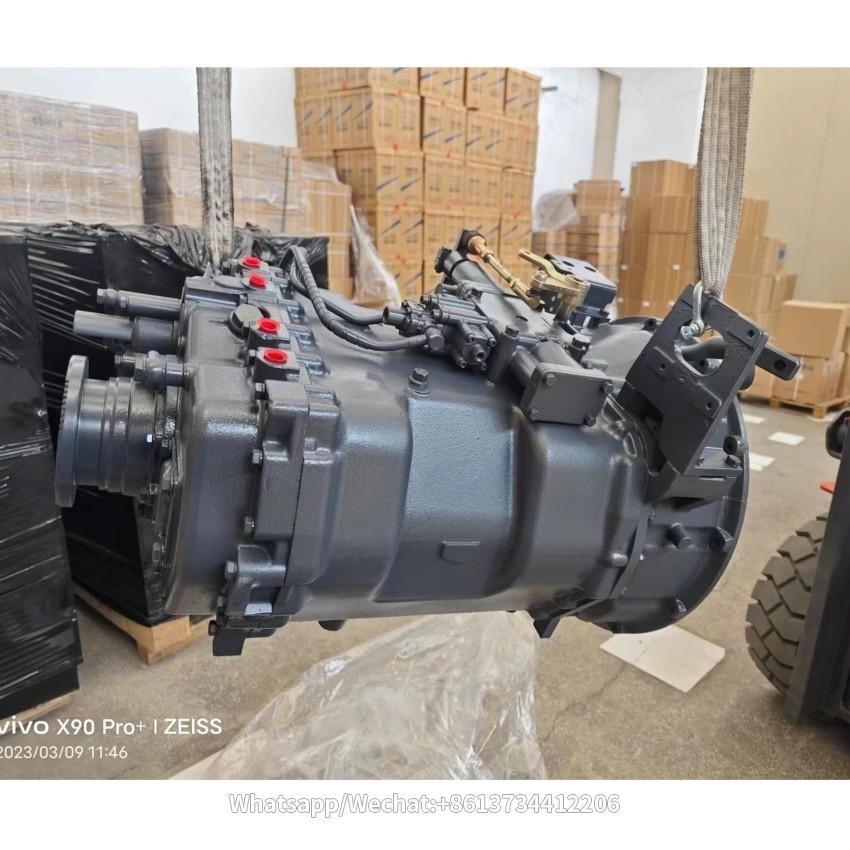

Description
Basic Info.

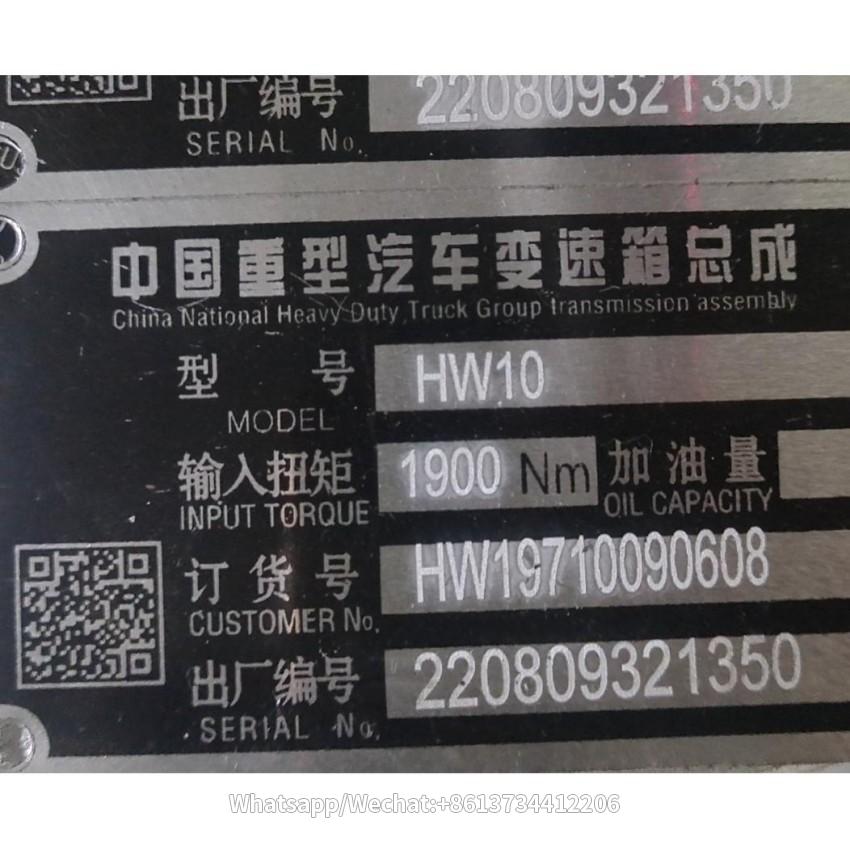

Model NO. HW10
Muffler Type Rear Muffler
Deck Double
Type1 Hw19710t
Type2 Hw19710c
Type3 Hw20716

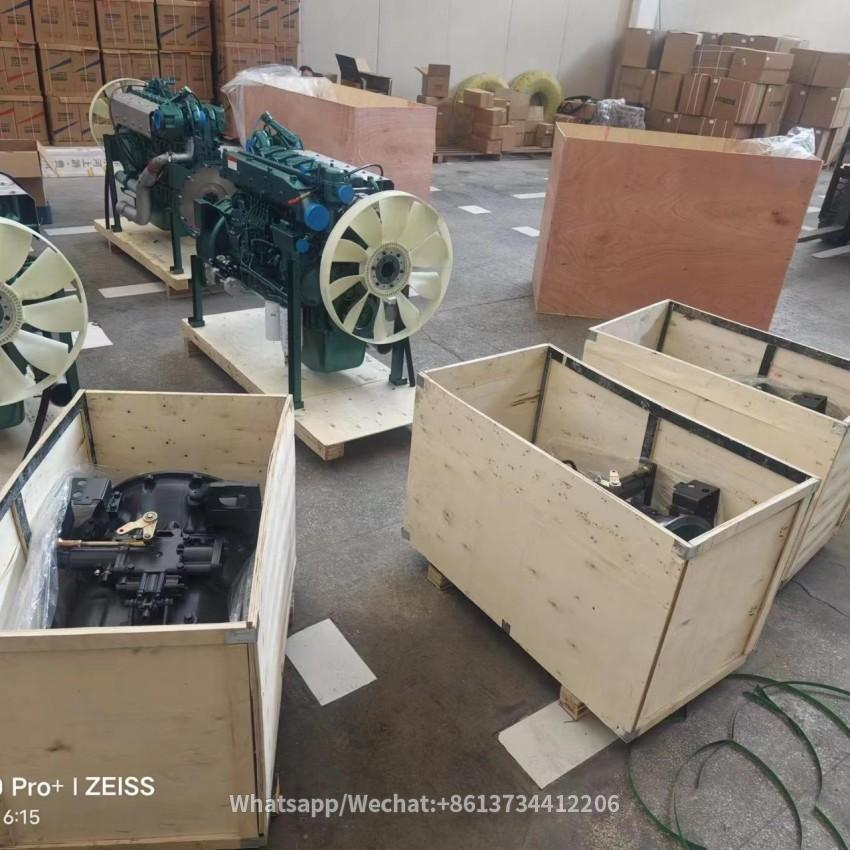

Transport Package Wood
Specification HW19710
Trademark SINOTRUK
Origin China
HS Code 8483409000
Production Capacity 50000

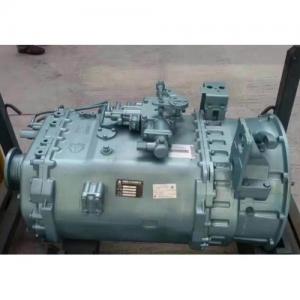

Product Description
Characteristics:
Main case and double auxiliary shaft structure; planetary gear reduction structure in sub case; with strong loading capability and reliable structure;
Combination of compulsory lubrication and gear flash lubrication provides sufficient lubrication and suits for all kinds of road conditions;
Integrated speed changing design: clear speeds marked and easy control;
ØDiversified operation modes and can be controlled by single shaft, double shafts or directly;
ØCompact structure and light weight;
Power taking off can be realized on neutral position of main case.
HW50, HW70 and HW80Q power take off can be selected;Full aluminum case transmission and retarder can be selected
It is applicable to the road vehicle and construction truck.
|
Model |
Rated Input Torque(Nm) |
Weight(kg) |
Fuel Volume(L) |
Total Length(mm) |
Aluminum Case is Optional |
|
HW15710 |
1500 |
342 |
12 |
843 |
Yes |
|
HW15710C |
1650 |
342 |
12 |
843 |
Yes |
|
HW19710 |
1900 |
355 |
12 |
843 |
Yes |
|
HW19710C |
2100 |
355 |
12 |
843 |
Yes |
|
HW23710 |
2300 |
359 |
12 |
859 |
|
|
HW23710C |
2500 |
359 |
12 |
859 |
|
Ratio of every Speed
|
Transmission Model |
Speed Ratio for Gears |
|||||||||||
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
R1 |
R2 |
|
|
HW15710 |
14.28 |
10.62 |
7.87 |
5.88 |
4.38 |
3.27 |
2.43 |
1.8 |
1.34 |
1 |
13.91 |
3.18 |
|
HW15710C |
10.73 |
7.98 |
5.91 |
4.38 |
3.29 |
2.45 |
1.82 |
1.35 |
1 |
0.75 |
10.45 |
2.39 |
|
HW19710 |
14.28 |
10.62 |
7.87 |
5.88 |
4.38 |
3.27 |
2.43 |
1.8 |
1.34 |
1 |
13.91 |
3.18 |
|
HW19710C |
10.73 |
7.98 |
5.91 |
4.38 |
3.29 |
2.45 |
1.82 |
1.35 |
1 |
0.75 |
10.45 |
2.39 |
|
HW23710 |
14.28 |
10.62 |
7.87 |
5.88 |
4.38 |
3.27 |
2.43 |
1.8 |
1.34 |
1 |
13.91 |
3.18 |
|
HW23710C |
10.73 |
7.98 |
5.91 |
4.38 |
3.29 |
2.45 |
1.82 |
1.35 |
1 |
0.75 |
10.45 |
2.39 |

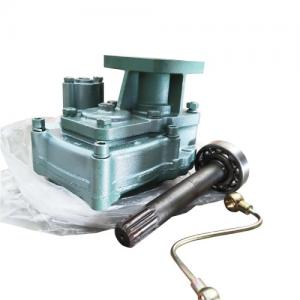

Type and Parameters of Optional Power Take Off
|
Model |
Output Direction (With Engine) |
Ratio |
Rated Output Torque (Nm) |
Output Format |
Output Ratio of Direction Speed |
Output Ratio of Overspeed |
|
HW50 |
Same |
0.74 |
500 |
Flange |
0.86 |
0.64 |
|
HW50-05 |
Same |
0.74 |
500 |
Spline |
0.86 |
0.64 |
|
HW50-06 |
Same |
0.72 |
500 |
Flange |
0.84 |
0.62 |
|
HW70 |
Same |
0.76 |
700 |
Flange |
0.88 |
0.66 |
|
HW70-05 |
Same |
0.76 |
700 |
Spline |
0.88 |
0.66 |
|
HW80Q |
Same |
0.61 |
800 |
Flange |
0.61 |
|
FAQ for Sinotruk Hw10 Series Gear Box 19710 for Dump Truck
Q: Are you Dealer or Factory for Sinotruk Hw10 Series Gear Box 19710 for Dump Truck?

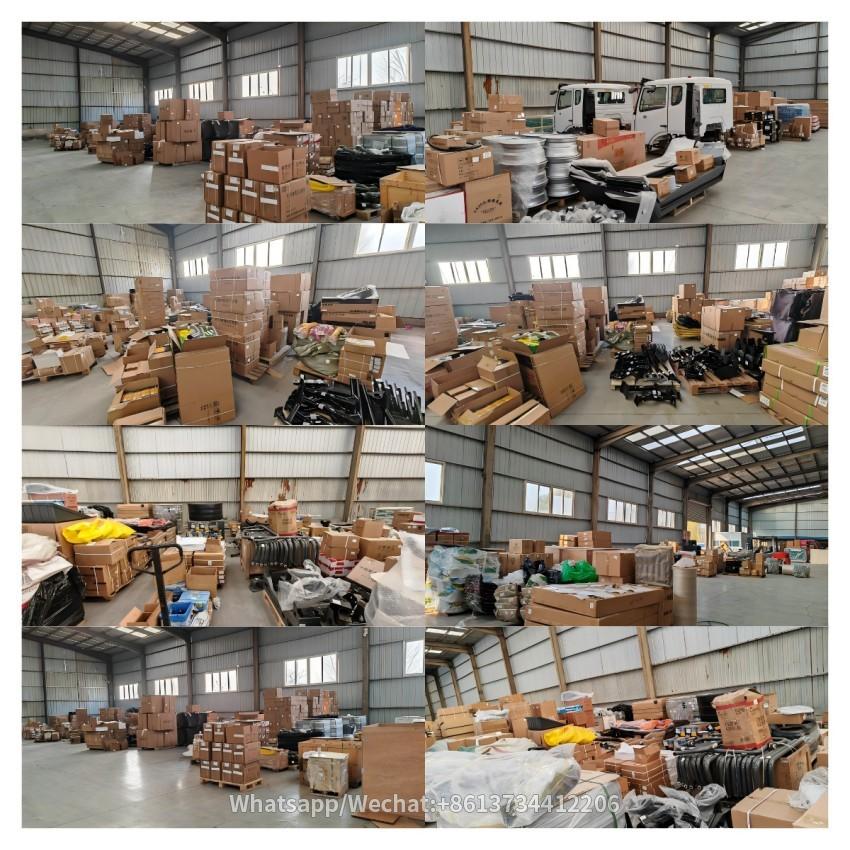

A: We are the factory, and we produce more than 20 years already. Our warehouse for spare parts is more than 5000 cubic meters.
