Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck Function and Introduction:
Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck is a special vehicle designed to transport flammable, explosive or toxic chemicals. It has a large metal tank body for storing and transporting a variety of liquid goods. The design and manufacture of the tank trucks produced in our factory follow strict regulations and standards to ensure safety during transportation.
Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck is consist of a tank truck mainly includes the following parts:
1. Tank body: This is the main part of a tank truck, which is used to store and transport liquid cargo. The tank body is usually made of high-strength steel and has good impact resistance and corrosion resistance.
2. Pump system: A tank truck needs to have a pump system to transfer liquids when loading and unloading cargo. The pump system usually includes a main pump and a backup pump to ensure that it can continue to work in the event of a failure.
3. Safety equipment: A series of safety equipment needs to be installed on the tank truck, such as emergency shut-off valves, safety valves, pressure gauges, etc., to monitor the pressure and safety conditions in the tank. In addition, the vehicle also needs to be equipped with fire-fighting equipment such as fire extinguishers and gas masks in case of fire or other accidents.
4. Cockpit: A tank truck needs a comfortable cockpit for the driver to rest and use during work. The cockpit is equipped with necessary instruments and control equipment, such as steering wheels, accelerators, brakes, transmissions, etc.
5. Hydraulic system: Tank trucks are usually equipped with a hydraulic system to operate various components of the vehicle, such as the opening and closing of the tank, the starting of the pump system, etc. The hydraulic system needs to be checked and maintained regularly to ensure its normal operation.
6. Electrical system: Tank trucks require a stable power supply to drive various components of the vehicle. The electrical system includes batteries, generators, controllers and other equipment, which need to be checked and maintained regularly.
Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck Specifications
Howo Ten Wheeler 20000liters Oil Diesel Fuel Tanker Truck |
|||
Volume |
25000L |
||
Thickness |
Tank body 5mm,end plate 6mm,Baffle plate:6mm. |
||
Compartment |
5 compartments |
||
Discharge valve |
5pieces API discharge valve |
||
Manhole cover |
5 pieces aluminum alloy Explosion proof manhole |
||
Bottom valve |
5 pieces |
||
Top of tank |
Folding armrest |
||
Fire extinguisher |
2 pieces fire extinguisher |
||
Option |
Pump Refilling machine Refueling gun, |
||
Chassis |
|||
Truck Model |
ZZ1257N4641W Sinotruk Howo Brand |
||
Size |
10350x2496x3500 |
||
Wheel base (mm) |
4600+1350 |
||
Max speed(km/h) |
90 |
||
Curb weight(kg) |
13540 |
||
Loading Weight(kg) |
20000 |
||
Engine |
Model |
WP10.400E22, water-cooled,four strokes, 6 cylinders in line,turbocharged, directly injection |
|
Fuel type |
Diesel |
||
Horse Power |
400HP |
||
Emission |
EURO 2 |
||
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||
Steering |
Model |
ZF8118 hydraulic steering power assistance |
|
Front axle |
VGD95, drum type, Steering with double T-cross section beam |
||
Rear axle |
HC16, 2 casting axle, 2x16 ton |
||
Tyre |
315/80R22.5 11 pieces(include 1 spare tire) |
||
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
||
Starter |
7.5Kw/24V |
||
Cab |
HW76 cab(one sleeper, with air conditioner) |
Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck can make the volume and compartments as per customer want, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

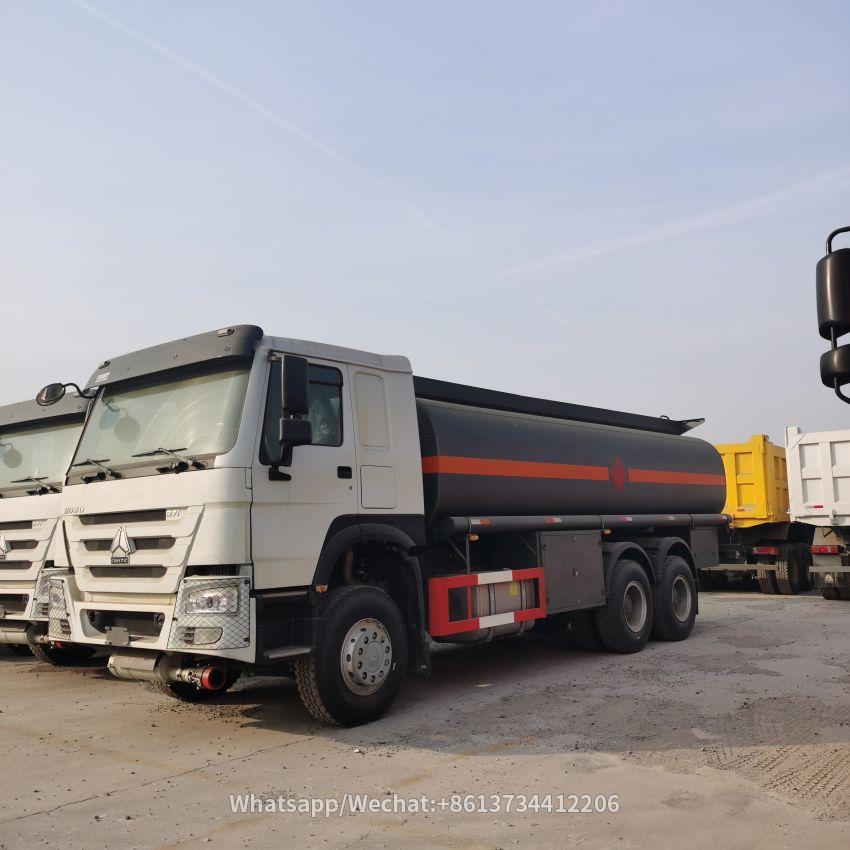

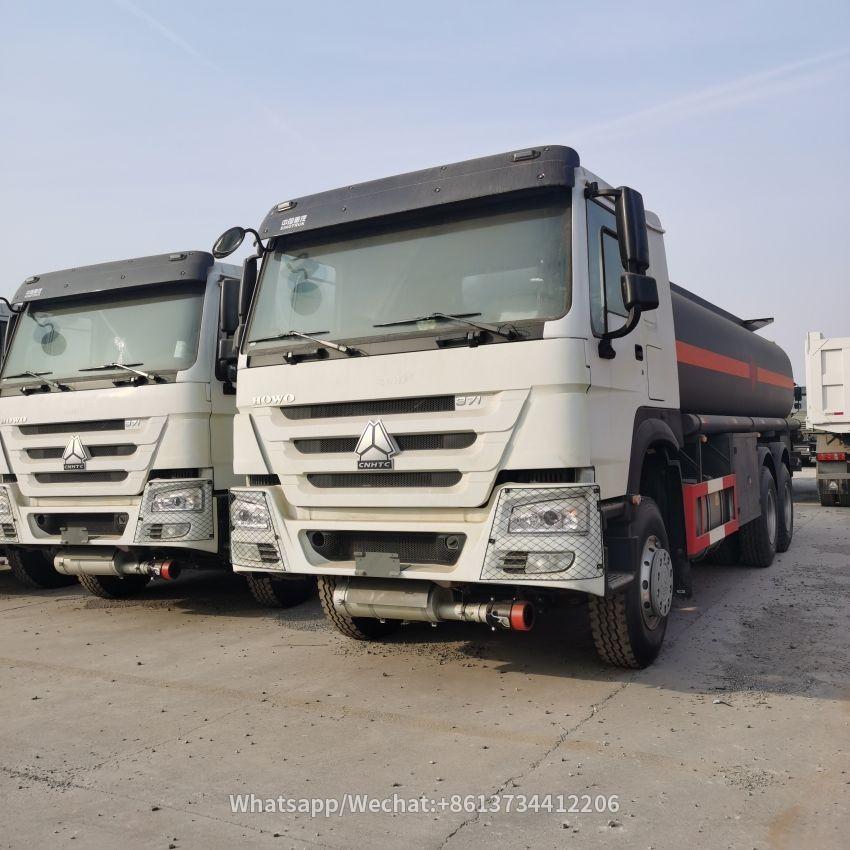

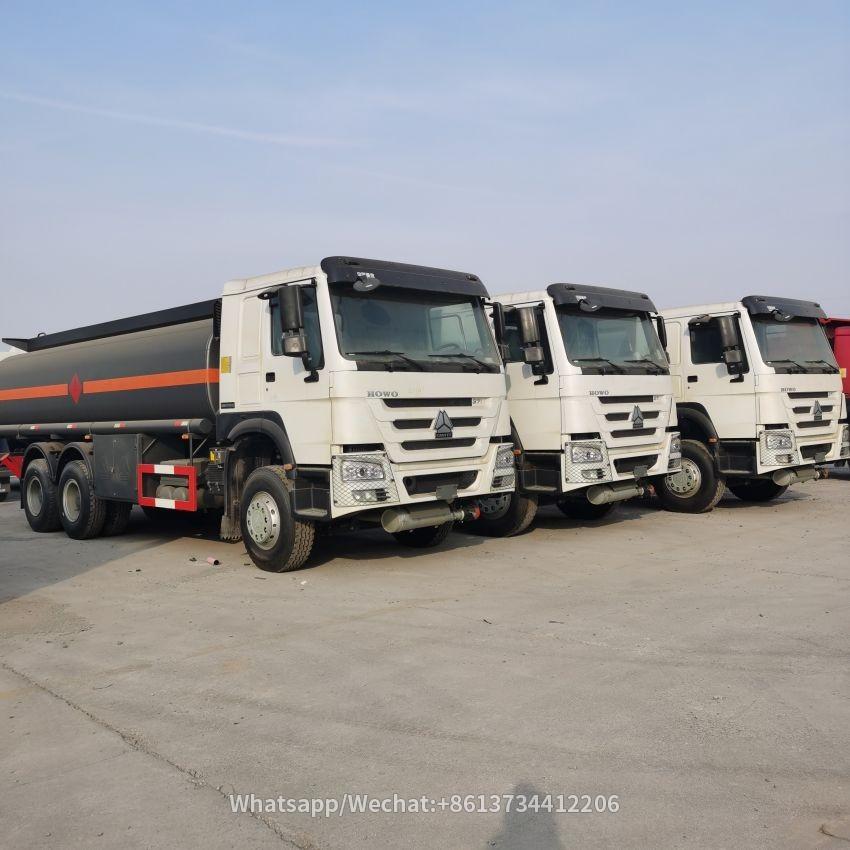

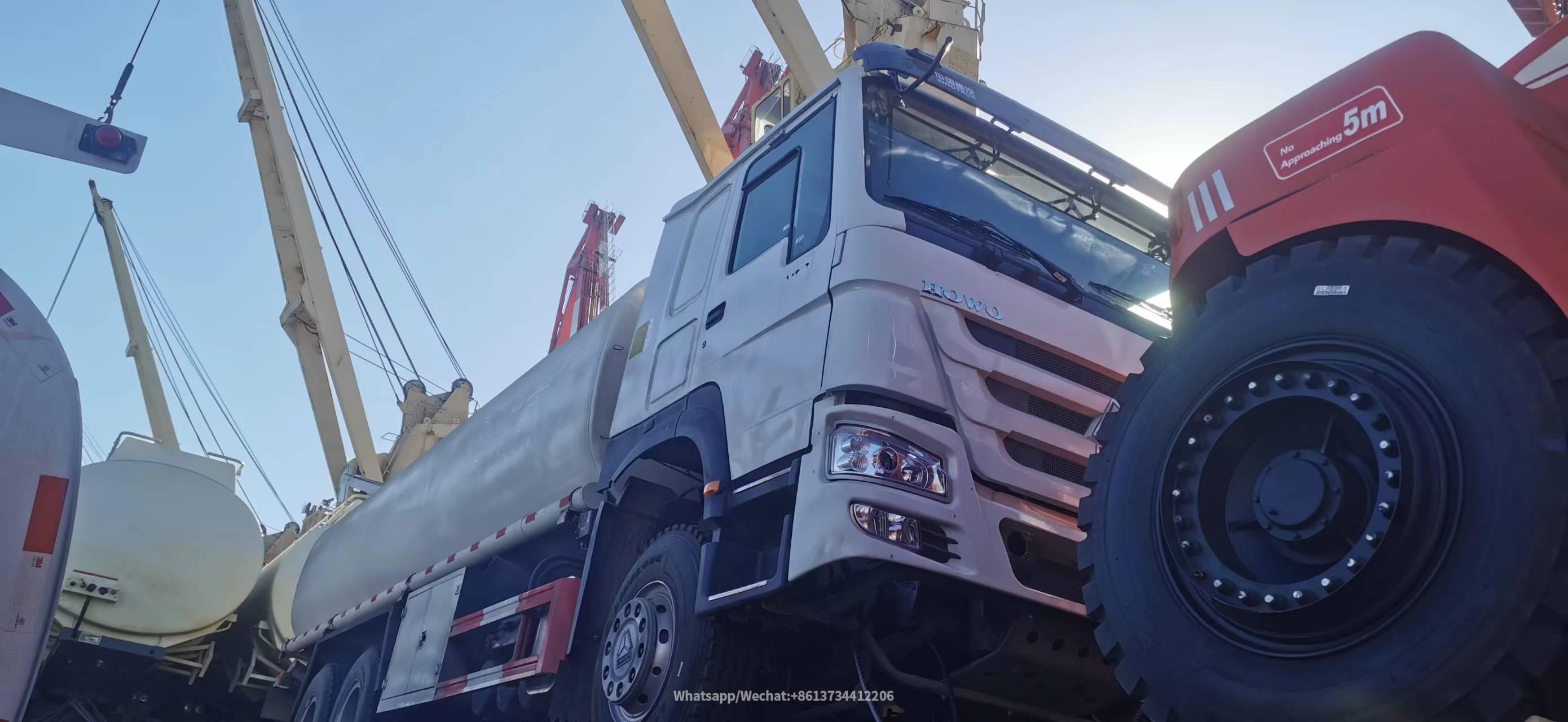

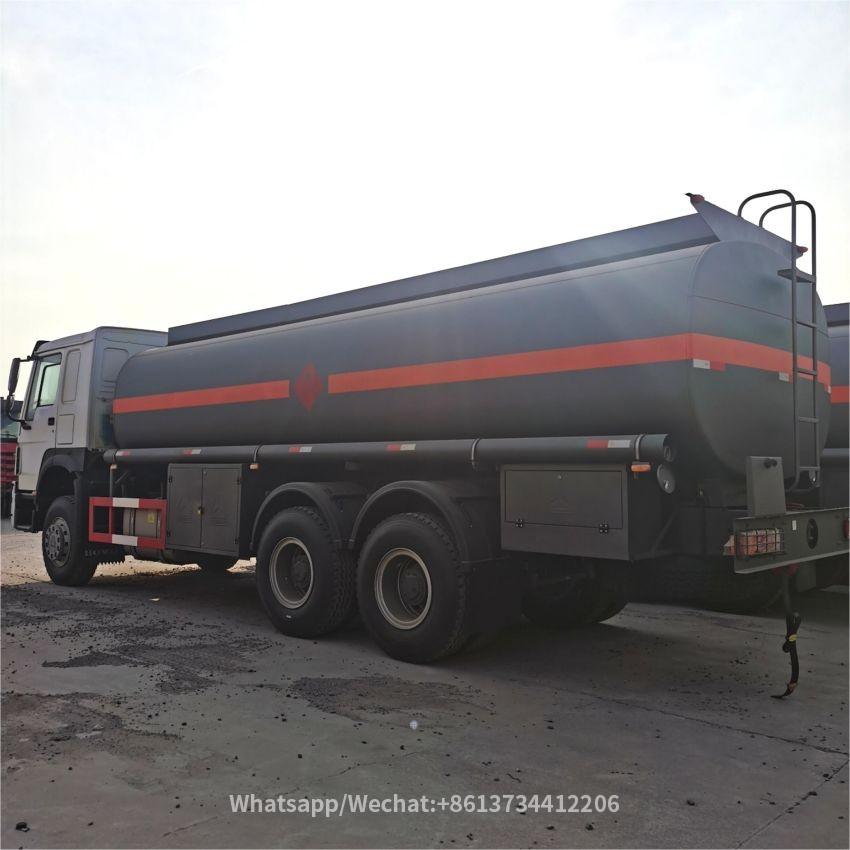

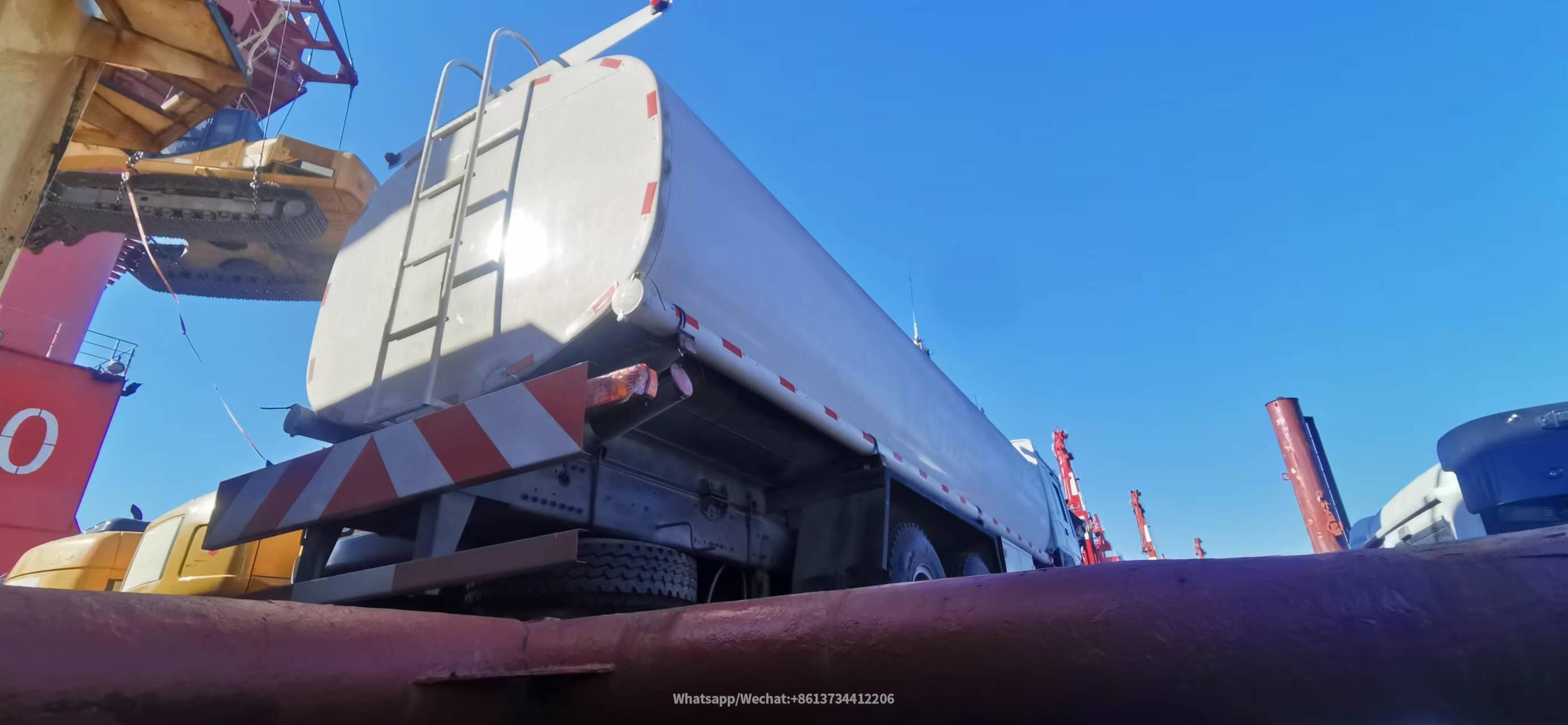

Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck Pictures and Delivery
FAQ for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck
Q: Are you Dealer or Factory for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q:what is the production time for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q:What is your company after sales Service for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck::
After the compulsory maintenance of the truck, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck::
“ Howo Truck Export can provide timely service, the Sinotruk Howo 10 Wheeler Fuel Oil Tanker Trucktrucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”
--Mr.Sady
“ I order Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truckfrom HOWO Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”
--Mr.Aman
If you are interested in Sinotruk Howo 10 Wheeler Fuel Oil Tanker Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
