Description
Tri Axles 40 Tons Drop Side Cargo Trailer Function and Introduction:

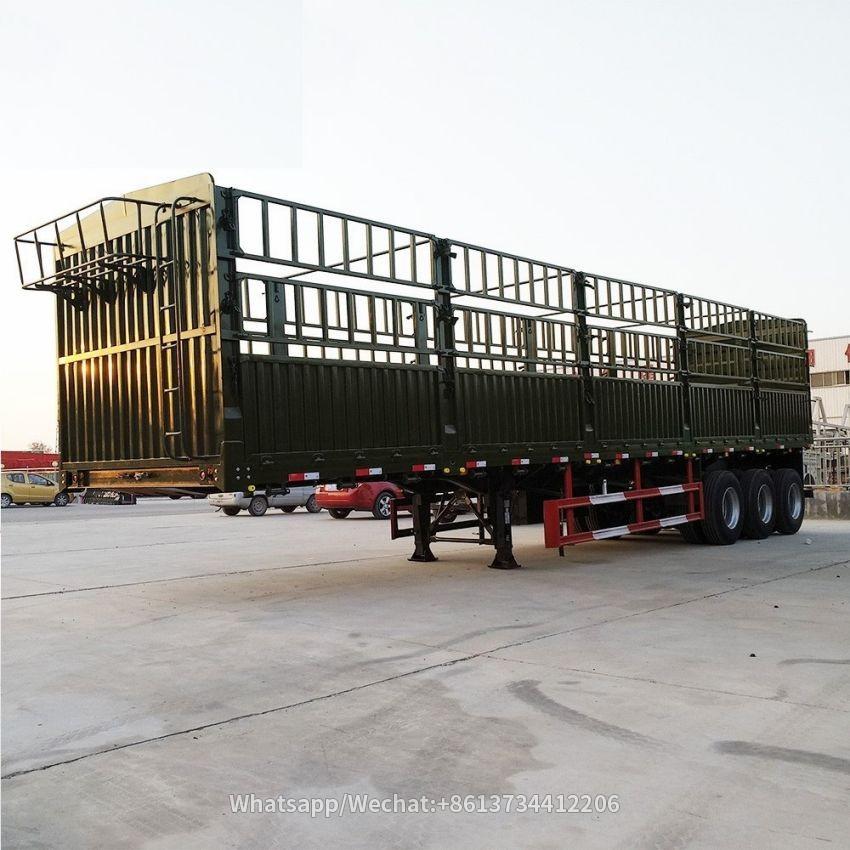

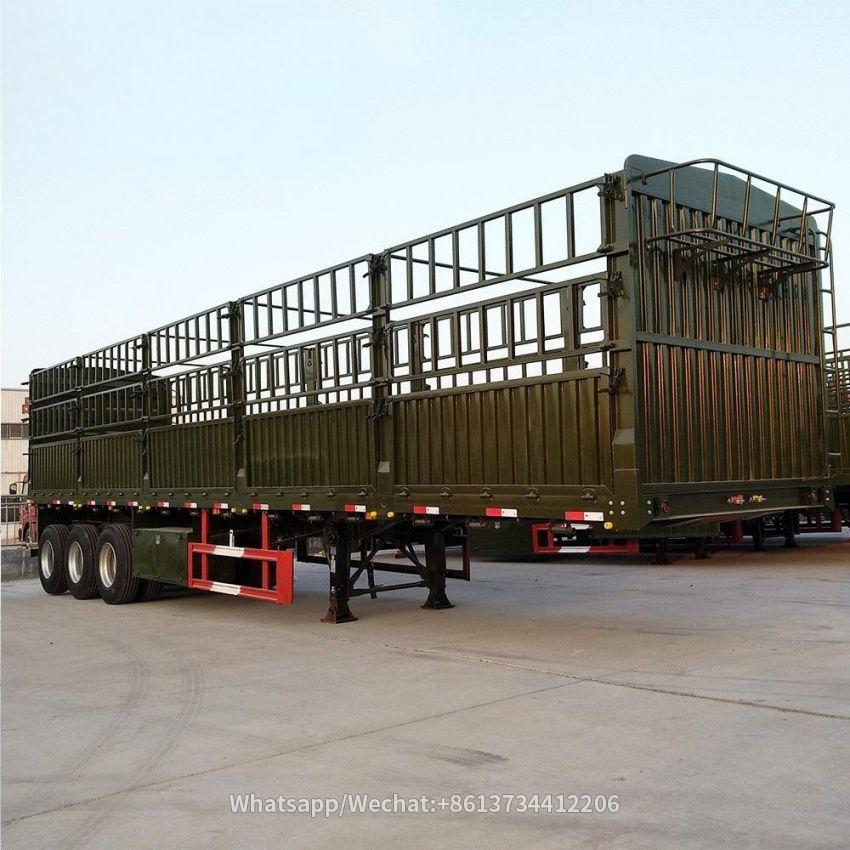

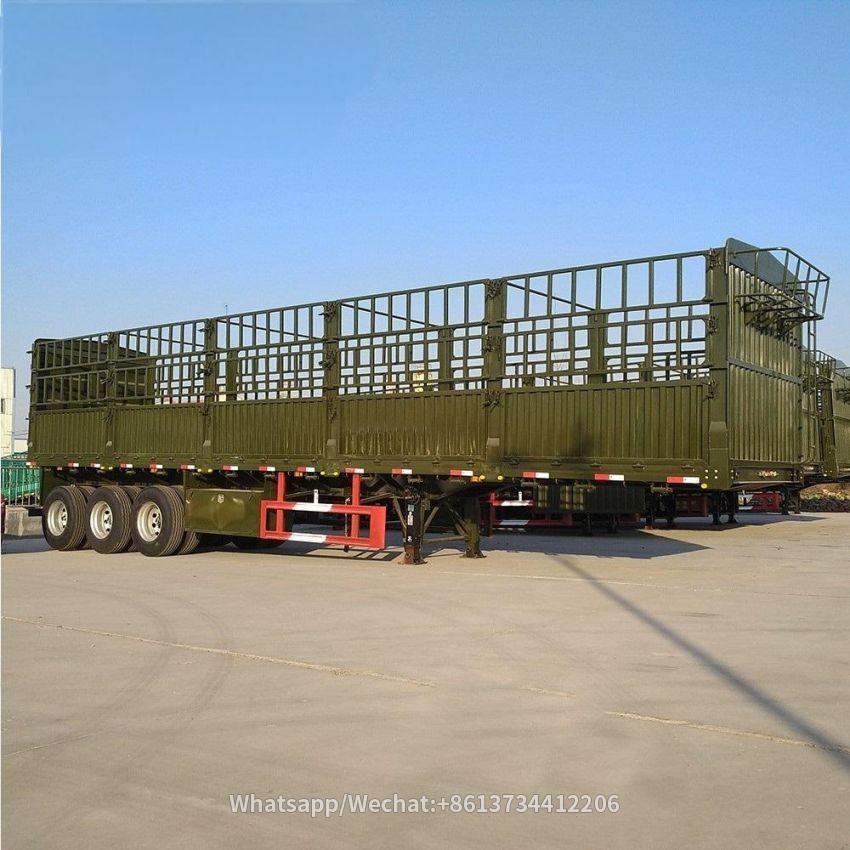

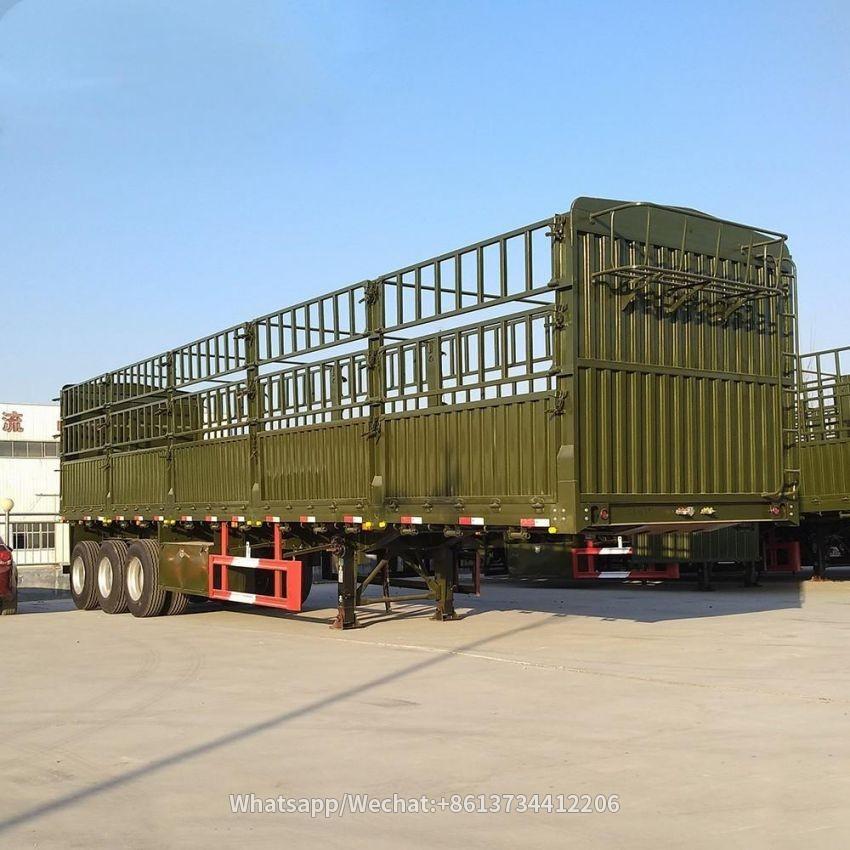

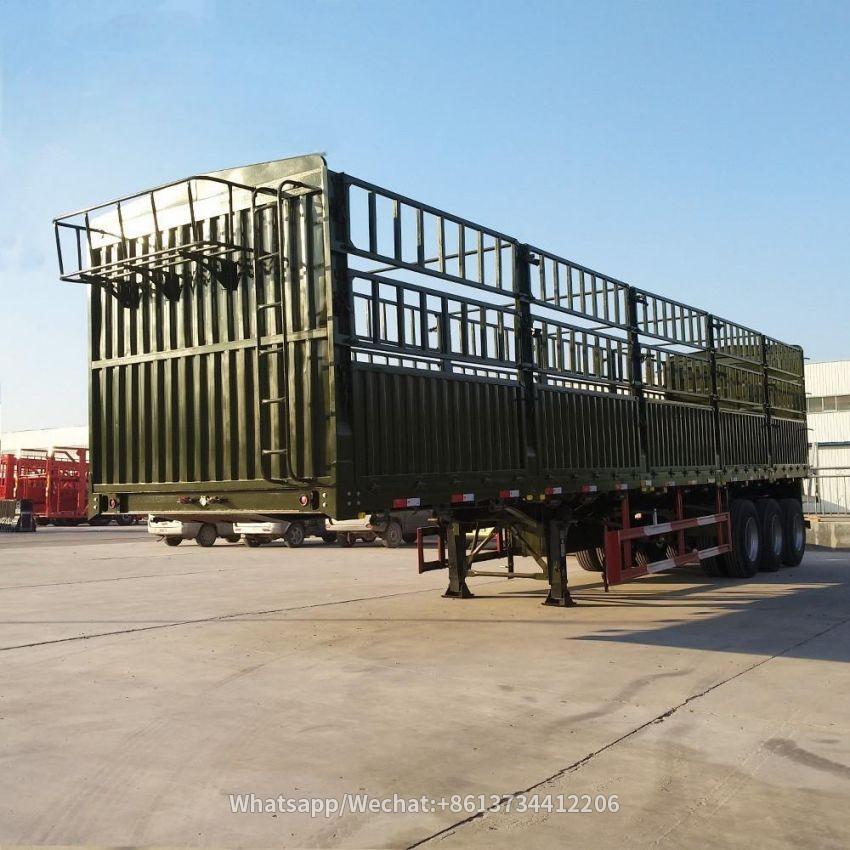

Tri Axles 40 Tons Drop Side Cargo Trailer
1. The vehicle body is made of high-quality steel, advanced technology, and strict production and manufacturing. The vehicle has a reasonable structure, reliable performance, easy operation, and beautiful appearance.
2. The frames of the series of semi-trailers are all through-beam structures, and the longitudinal beams are straight or gooseneck. The web height ranges from 400mm to 550mm manganese plate welding, the longitudinal beams are welded by automatic buried welding, the frame is shot peened, and the cross beams penetrate the longitudinal beams and welded as a whole.
3. The suspension adopts non-independent steel plate stamping rigid suspension, which is made of series steel leaf springs and suspension supports; the structure is reasonable, with strong rigidity and strength, used to support loads and reduce impact.
Tri Axles 40 Tons Drop Side Cargo Trailer Specifications
|
Dimension and Weight: |
|
|
Overall Dimension (Lx W x H)(mm) |
12500*2500*2550 |
|
Cargo box dimension (Lx W x H)(mm) |
12000X2300X1600 side 2mm and bottom 3mm |
|
Tare Weight(KG) |
7000kg |
|
Loading Weight( KG) |
40000kg-60000kg |
|
Chassis and Running System: |
|
|
Axle Brand |
13Ton, FUWA/BPW/ZY brand option one hundred fifty thousand Kilometers no need maintenance |
|
Axle Number |
Three |
|
Wheelbase(mm) |
7450+1310+1310 |
|
Suspension system |
Mechanical Leaf Spring Suspension |
|
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
|
The material of Main beam |
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
|
Side beam |
Q235 16# channel steel |
|
Platform plate |
3mm Diamond plate |
|
Tire |
12R22.5, 12 pcs. Triangle brand |
|
Rim |
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
|
Electrical System |
Chinese standard 24V lighting system |
|
Brake system: |
Dual line pneumatic brake, SAE hose and connector,no ABS |
|
Brake air chamber |
6 units T30/30 spring brake chambers |
|
Emergency relay valve |
Wabco relay valve |
|
Traction/King Pin |
2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
|
Landing Gear |
Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
|
Accessories: |
|
|
Tool box |
1pcs, One crank and one shaft head wrench |
|
Mud guard |
Steel mud guard and front mudguard |
|
Spare wheel carriers |
2 pcs |
|
bumper |
Rear bumper with adjustable height |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core electric cable protected by PVC conduit on main frame |
|
|
Paint |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |
|
Packing |
Nude, Polish with wax before shipping |
FAQ for Tri Axles 40 Tons Drop Side Cargo Trailer
Q: Are you Dealer or Factory for Tri Axles 40 Tons Drop Side Cargo Trailer?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Tri Axles 40 Tons Drop Side Cargo Trailer?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Tri Axles 40 Tons Drop Side Cargo Trailer by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Tri Axles 40 Tons Drop Side Cargo Trailer quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Tri Axles 40 Tons Drop Side Cargo Trailer. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Tri Axles 40 Tons Drop Side Cargo Trailer, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Tri Axles 40 Tons Drop Side Cargo Trailer?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Tri Axles 40 Tons Drop Side Cargo Trailer?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Tri Axles 40 Tons Drop Side Cargo Trailer?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Tri Axles 40 Tons Drop Side Cargo Trailer:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Tri Axles 40 Tons Drop Side Cargo Trailer:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Tri Axles 40 Tons Drop Side Cargo Trailerand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Tri Axles 40 Tons Drop Side Cargo Trailerin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Tri Axles 40 Tons Drop Side Cargo Trailermileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Tri Axles 40 Tons Drop Side Cargo Trailer:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Tri Axles 40 Tons Drop Side Cargo Trailer:
“ Howo Truck Export can provide timely service, the Tri Axles 40 Tons Drop Side Cargo Trailertrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order Tri Axles 40 Tons Drop Side Cargo Trailerand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in Tri Axles 40 Tons Drop Side Cargo Trailer of our company, don’t hesitate to contact me, the best service is waiting for you !
