Description

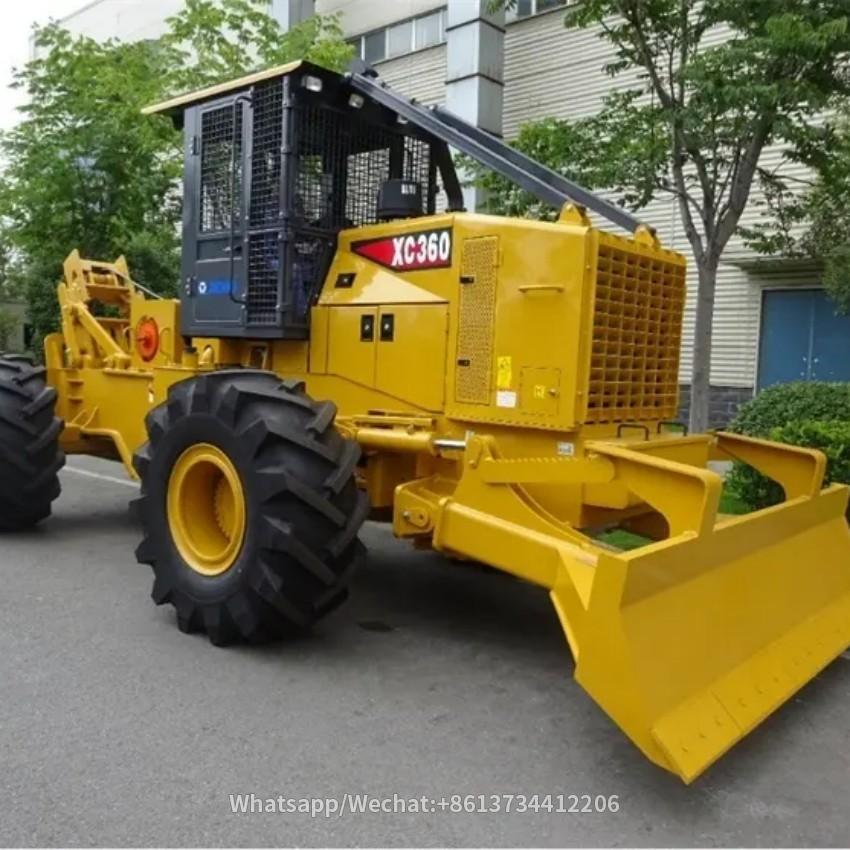

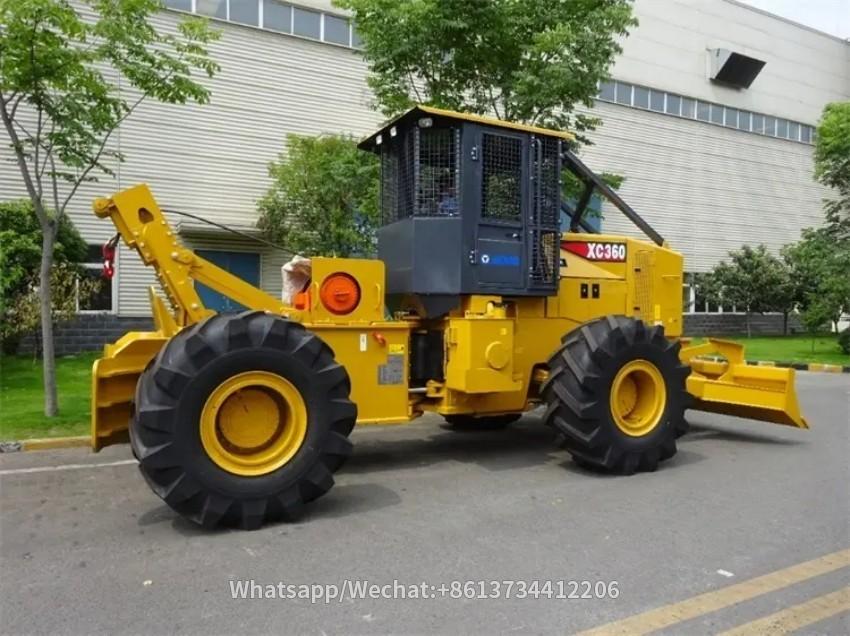

1. Main properties and characteristics of XC360 material machine
engine system:
The engine adopts weichai 4 valve WD10G240E201 engine, turbocharged, electric start, electric flameout, strong power, large power reserve, convenient and reliable operation. The all-round elastic suspension greatly reduces the vibration of the whole machine and the fatigue damage caused by resonance, reduces the fatigue strength of the driver, improves the drivers operating comfort, has the advantages of high reliability, high adaptability, low fuel consumption and low emission, and the emissions meet the Chinese stage standards.
The air filter adopts 93 dust filter to improve the intake environment of the air filter and improve the engine life.
The water tank adopts copper tube piece type water tank, strong corrosion resistance, double variable oil scattered rotation open, easy to clean.
drive system
With xugong independent intellectual property rights of parallel shaft power shift gearbox, electro-hydraulic control, with automatic gear switch (KD function), gear before four after four, advanced performance, provide smooth shift, can simplify the driver operation, can effectively reduce the driver work intensity, adapt to meet the requirements of various conditions of the loader.
Adopt the maintenance-free multi-piece wet drive axle with XCMG core technology, and the lubrication circulation system structure with brake maintenance-free system and forced internal lubrication function. The front axle is equipped with a limited-slip differential to avoid tire skid.
Using low pressure wide base herringbone pattern tire, with good off-road performance, adapt to driving on the rugged road.
The frame system
Both front and rear frames adopt box structure, with good overall stiffness and strong bearing capacity.
The key structure adopts finite element analysis, and the whole flexible welding process is made, with stronger impact resistance, pay attention to the overall structural strength, reduce the stress concentration part, eliminate the local weakness, to ensure that all kinds of dangerous and heavy working conditions are met.
hydraulic pressure system
The working hydraulic system and the steering hydraulic system adopt single pump shunt technology: the two systems use the same gear oil pump, the output flow of the oil pump first meets the requirements of the steering system, the excess oil enters the working system through the shunt valve; when not steering, the flow of the oil pump flows into the working hydraulic system. This technology can reduce the system cost, reduce the heat generation of the hydraulic system, and play a role in energy saving.
The working hydraulic system adopts the pilot control technology, using the low pressure small flow hydraulic oil of the pilot valve to control the opening and closing of the high pressure large flow main valve core, so as to achieve the function of lifting, lifting and landing. The operation force of the pilot handle is small and natural, which greatly reduces the labor intensity of the driver.
The steering hydraulic system adopts flow amplification technology: through the low pressure and low flow hydraulic oil of the steering device, control the movement of high pressure and high flow steering core, and the steering control is the mechanical double limit, to reduce the steering impact. This steering system, the drivers operation comfort and reliability of the high.
The hydraulic hose adopts two seals in line with the DIN standard to effectively prevent leakage;
brake assembly
The service braking system adopts air-top oil wet braking mode, emergency brake and parking brake two in one, which has the advantages of stable braking, safety and reliable, simple structure, convenient maintenance and strong braking effect.
Hydraulic winch system
Manual rope pulling mechanism makes the shutdown state to ensure the rope pulling function and improve the convenience of maintenance.
Cab system
Integrated reinforced skeleton cab, steering wheel front and rear adjustable, seat two-way shock absorption, steel wire grid protection, the operation is more safe and reliable.
Electrical system
The electrical system adopts international famous brand VDO combined instrument to display and monitor the vehicle brake pressure, generator power generation, engine water temperature, torque converter oil temperature, reliable quality, beautiful and generous; the parallel centralized safety box, each electrical equipment equipped with independent insurance, reliable performance and more convenient inspection and maintenance; the vehicle wiring harness adopts fully imported sealed connector, dust and waterproof, improve the reliability of the electrical system
Machine cover system
The upper side door is turned up, and the side door is made of V-shaped structure. The drivers vision is wider, the lower side door is opened to both sides, and the maintenance is more convenient.
2. Main technical parameters:
|
project |
Xugong XC360 |
|
|
Operating weight (Kg) |
19700 |
|
|
engine type |
Weichai, WD10G240E201 |
|
|
engine power |
178KW/2200rpm |
|
|
displacement |
10L |
|
|
gear |
The first four and the last four |
|
|
velocity (Km/h)
|
The first / the last |
6/6 |
|
The first two / the last two |
11/11 |
|
|
The first three / the last three |
22/22 |
|
|
The first four / the last four |
34/34 |
|
|
steering angle (°) |
38 |
|
|
Tyre model |
23.5-25 |
|
|
decorative pattern |
herringbone |
|
|
Front bridge swing angle (°) |
±12 |
|
|
Wch driven type type |
Hydraulic motor drive |
|
|
Maximum wire rope traction force |
204KN |
|
|
Maximum wire speed |
10m/min |
|
|
Drum capacity (diameter mmX length m) |
Φ22mmX33m |
|
|
Chistan drum diameter: mm (cable type) |
273 |
|
|
Chistan drum width of mm |
230 |
|
|
Push board lifting height mm |
1381 |
|
|
Push board soil cutting depth mm |
456 |
|
|
Turning radius (outside of the tire) mm |
6370 |
|
|
Machine width (outside of tire) mm |
3220 |
|
|
Overall height (cab) mm |
3550 |
|
|
Tire radius of mm |
760 |
|
|
Ground to the top of the guide frame height mm |
27 0 0 |
|
|
wheel base mm |
3680 |
|
|
tread mm |
2622 |
|
Configuration of the main components of the XC360 material collector
|
order number |
name |
specifications |
manufacturer |
|
|
engine |
WD10G240E201 |
Weichai Power Co., LTD |
|
2 |
gear-box torque converter |
MYF-200 |
Xu gong box |
|
3 |
banjo axle |
WA1210(III)/2210 |
Xugong wet bridge |
|
4 |
priority valve |
DJS2-UX/UU |
Zhejiang Gaoyu Hydraulic & Electromechanical Co., LTD |
|
5 |
multiple unit valve |
DL20YX0-00(X1) |
Zhejiang Gaoyu Hydraulic & Electromechanical Co., LTD |
|
6 |
gear pump |
JHPg3080/02010R-XF |
Jinan Hydraulic Pump Co., LTD |
|
7 |
Flow magnification valve |
ZLF25A1(Z6G) |
Zhejiang Gaoyu Hydraulic & Electromechanical Co., LTD |
