A full analysis from construction to application The structure of tipper truck
date:2025-03-25
Dump trucks sinotruck Secrets: A full analysis from construction to application The structure of tipper truck
Sinotruck dump truck, also known as howo tipper, is a vehicle that unloads its cargo by itself through hydraulic or mechanical lifting mechanism. It mainly consists of the following parts:
1. Car chassis: dump trucks sinotruck's chassis is the same as that of general heavy-duty cars, including engine, transmission, drive axle and other components, which provide power and driving stability for vehicles.
2. Hydraulic lifting mechanism: This is the core component of the sinotruck dump truck, consisting of a fuel tank, hydraulic pump, distribution valve, lifting hydraulic cylinder, control valve, and oil pipes. The dumper truck engine drives the hydraulic pump through a transmission and power take-off device. High-pressure oil flows through the distribution valve and oil pipes into the lifting hydraulic cylinder, pushing the piston rod to tilt the vehicle.
3. Cargo Box: The cargo box is the part of the dumper truck that carries goods. Depending on its purpose, the structure and material of the cargo box can vary. For example, a mining bucket truck is suitable for transporting large stones and other coarser materials, while a standard rectangular box is used for bulk cargo transportation.
4. Power taking device: The power taking device is the power source of sino dump truck hydraulic system, which is usually installed on the transmission to transfer the power of the engine to the hydraulic pump through the power taking device. In addition, howo dump truck 8x4 also includes large components such as cab safety panels and locking mechanism assemblies to ensure the safety of drivers and stable transportation of goods. Type of sino dump truck
Howo dump truck price According to different classification criteria, it can be divided into many types:
1. Classified by the direction of carriage flipping:
o Backward rollover tipper trucks for sale: The car is rolled backward to unload, which is the most common type.
o Lateral tipping tipper trucks for sale: The car is tilted to one side for unloading, which is suitable for narrow sites.
o Two-way tipping tipper trucks for sale: The car can be tipped backward or to one side, which is more flexible.

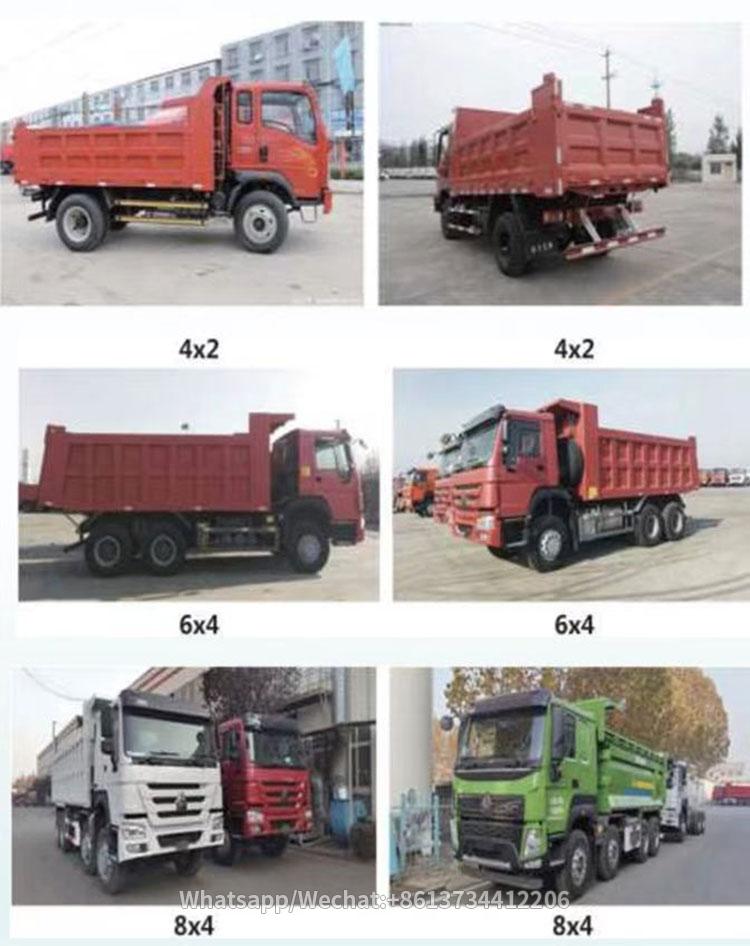

2. Classification by driving form:
o 4x2trucks dump: Single bridge drive, suitable for light load or medium and short distance transportation.
o 6x4trucks dump: The front four and rear four drive has a stronger carrying capacity, which is suitable for heavy load or long distance transportation.
o 8x4trucks dump: The front four and rear eight drive has a stronger carrying capacity and is suitable for super overload or special working conditions.

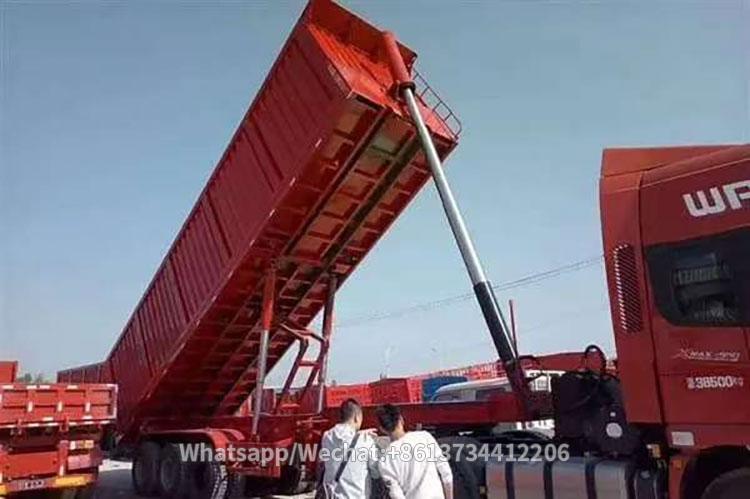

Howo truck dumper works The principle of operation for sinotruck howo dump truck 2021 price is relatively simple: the engine drives a hydraulic pump through a transmission and power take-off device. High-pressure oil then flows into the lifting cylinder via distribution valves and tubing, pushing the piston rod to tip the vehicle over. The tipping angle can be controlled by the control system to stop the vehicle at any required tilt position. After unloading is complete, the vehicle uses its own weight and hydraulic control to reset itself. sino
Dump truck Applications The application scope of 40 ton howo dump truck is very wide, mainly including the following aspects:
1. Construction engineering: dump truck howo 8x4 It is widely used in construction sites and is often used for earthwork. It can quickly transport soil, sand, gravel, concrete and other building materials to the designated position.
2. Mining engineering: In the mining industry, dump truk is used to transport heavy materials such as ore and coal, which usually require large-scale transportation and unloading.
3. Agriculture: dump truk can be used to transport agricultural materials such as crops and feed, and the quick unloading function enables these materials to be quickly transferred from farmland to storage or market.
4.Waste disposal: dump trucks 33 ton plays an important role in the waste disposal industry by collecting and transporting waste and dumping it into waste disposal facilities.
5. Road cleaning: In urban environment, tipper truck dumper is often used for road cleaning work, such as cleaning up waste materials, residual building materials and other wastes. In addition, sinotruk dumper is widely used in oil fields, petroleum industry, environmental protection and renewable energy.
In summary, tipper sinotruck, as an efficient means of transportation, plays a significant role in various fields. Understanding its structure, types, working principles, and application scope, along with the correct operating procedures, is crucial for improving transport efficiency and ensuring vehicle safety.
