Description
3 Axles 60 ton Excavator Lowbed Trailers Function and Introduction:
3 Axles 60 ton Excavator Lowbed Trailers
Lowbed Trailers are usually used to transport heavy trucks (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-loaded goods. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport extra-high goods and pass overhead obstacles.
Structure and loading of Lowbed Trailers
Lowbed Trailers usually use a concave beam (or well-shaped) frame, that is, the front section of the frame is a gooseneck (the traction pin at the front section of the gooseneck is connected to the traction saddle on the tractor, and the rear end of the gooseneck is connected to the semi-trailer frame), the middle section is the cargo platform (the lowest part of the frame), and the rear end is the wheel frame (including wheels).
When loading mechanical equipment on a Lowbed Trailers, it is usually loaded from the rear end of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi-trailer.
Features
1. The Lowbed Trailers series has flat, concave beam and tire exposed structures, and the longitudinal beam adopts straight or gooseneck type. Its frame is ladder-shaped, and the longitudinal beam section is I-shaped, with high rigidity and high strength.
2. The main plane of the frame cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.
3. The three-axis balanced, two-axis balanced or rigid suspension is adopted, and a mass balance block is installed between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs change by the same amount, so that the front and rear axles are balanced.
4. The Lowbed Trailers series products are suitable for the transportation of various mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment and various steel materials. It has a wide range of uses and is efficient and fast. The whole vehicle adopts advanced computer-aided design software for flexible and diverse optimization design. The frame load-bearing surface is designed according to user requirements to meet the transportation of various special goods.
3 Axles 60 ton Excavator Lowbed Trailers Specifications
|
Dimension and Weight |
|
|
Overall Dimension（mm） |
13000x3000x1650mm |
|
Working Deck Dimension（mm） |
9000x3000x1000mm |
|
Platform thickness（mm） |
5mm diamond plate |
|
Main Beam |
“H”main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
|
Side beam |
25mm Q345B |
|
Wheelbase |
7,650mm+1,310mm+1,310mm |
|
Payload |
60,000kg |
|
Tare weight |
9,000kg |
|
G.V.W.R. |
69,000kg |
|
Function |
To transport bulk goods or heavy equipment like loader or excavator |
|
Running System |
|
|
Axle |
13Ton, ZY brand one hundred fifty thousand Kilometers no need maintenance |
|
Axle Number |
Three |
|
Tire |
1100R20, 12 pcs triangle brand |
|
Rim |
8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
|
Suspension system |
Common Mechanical Suspension |
|
Steel Spring |
10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
|
Electrical System |
Chinese standard 24V lighting system |
|
Brake system: |
Dual line pneumatic brake, SAE hose and connector,optional ABS |
|
Brake air chamber |
6 units T30/30 spring brake chambers |
|
Emergency relay valve |
Wabco relay valve |
|
Traction/King Pin |
2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
|
Landing Gear |
Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
|
Accessories: |
|
|
Tool box |
1pcs, One crank and one shaft head wrench |
|
Ramp |
Heavy duty trailer ramp |
|
Spare wheel carriers |
2 pcs |
|
bumper |
Rear bumper |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core electric cable protected by PVC conduit on main frame |
|
|
Paint |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |
|
Packing |
Nude, Polish with wax before shipping |

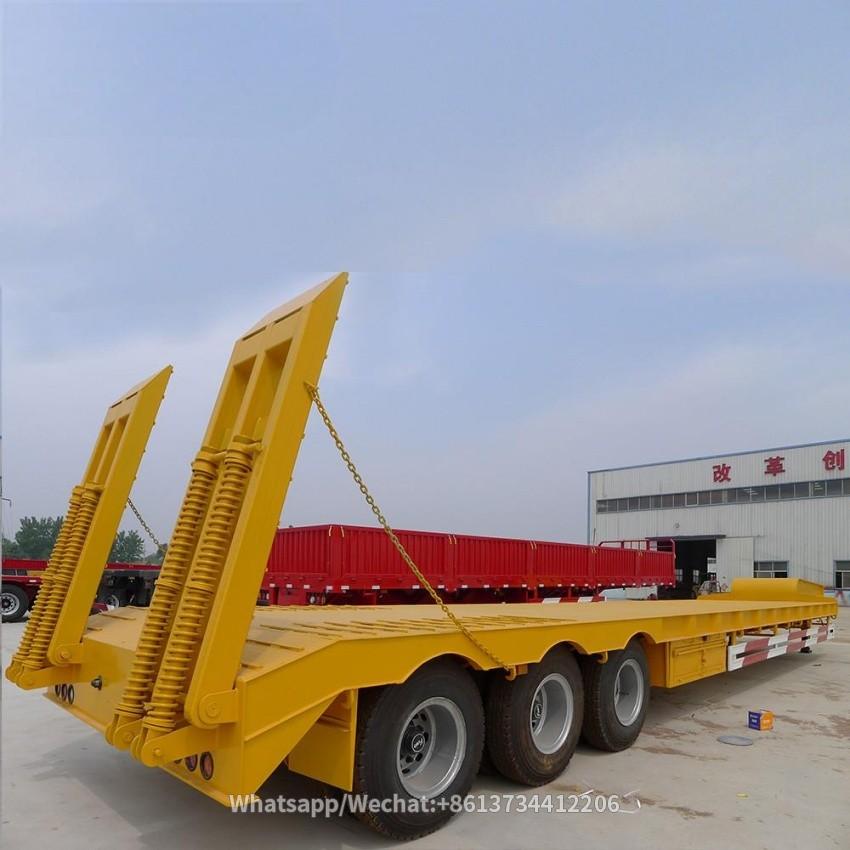

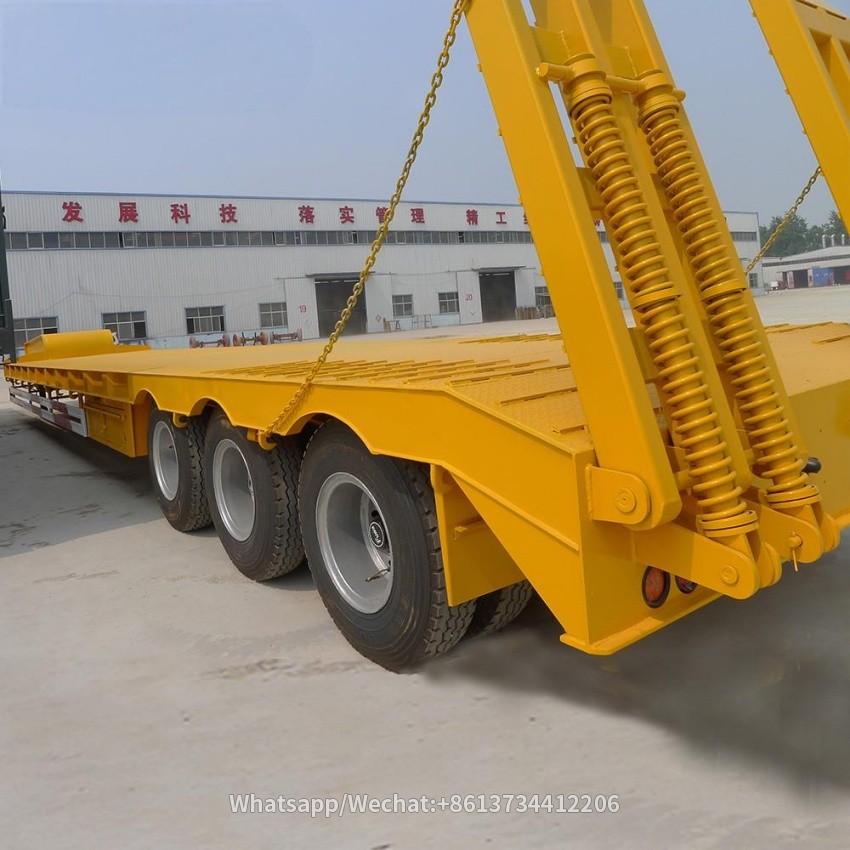

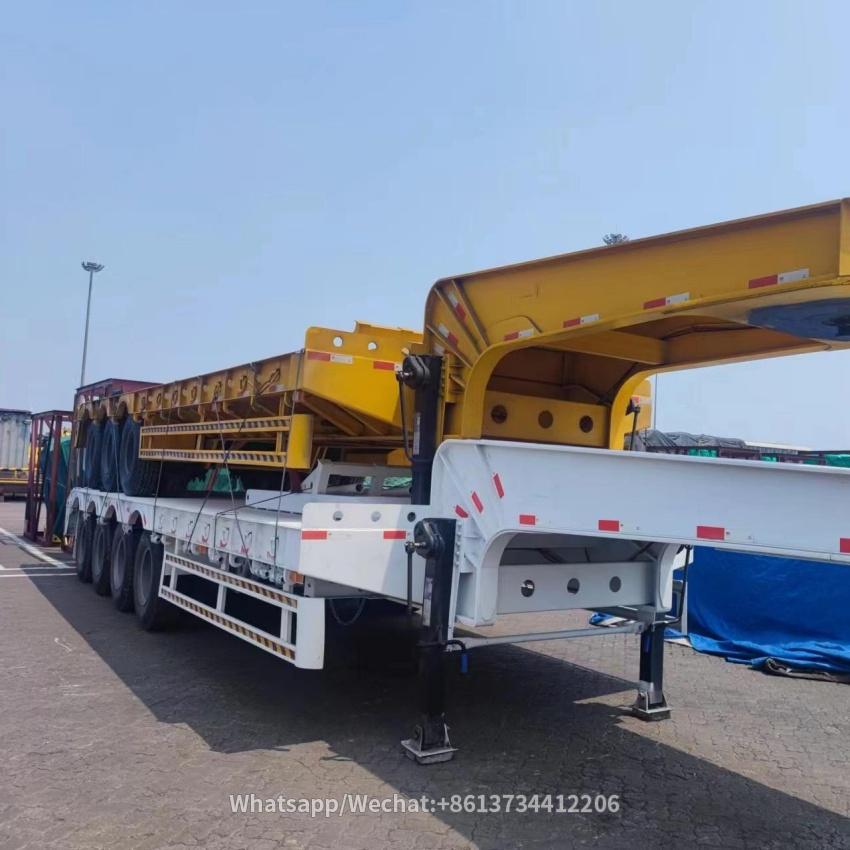

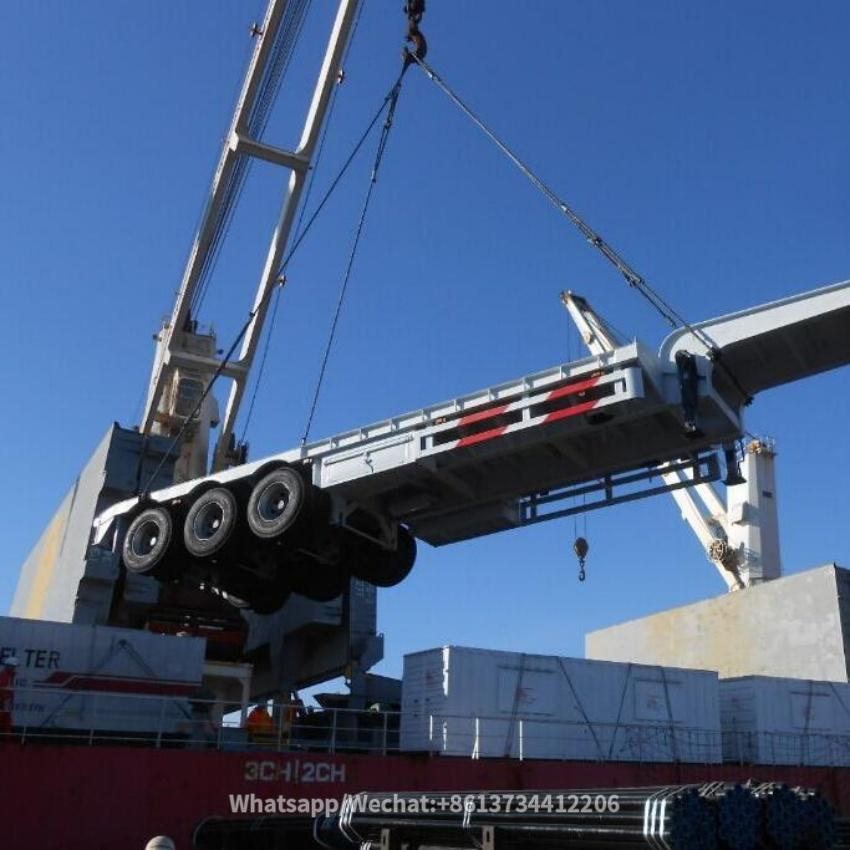

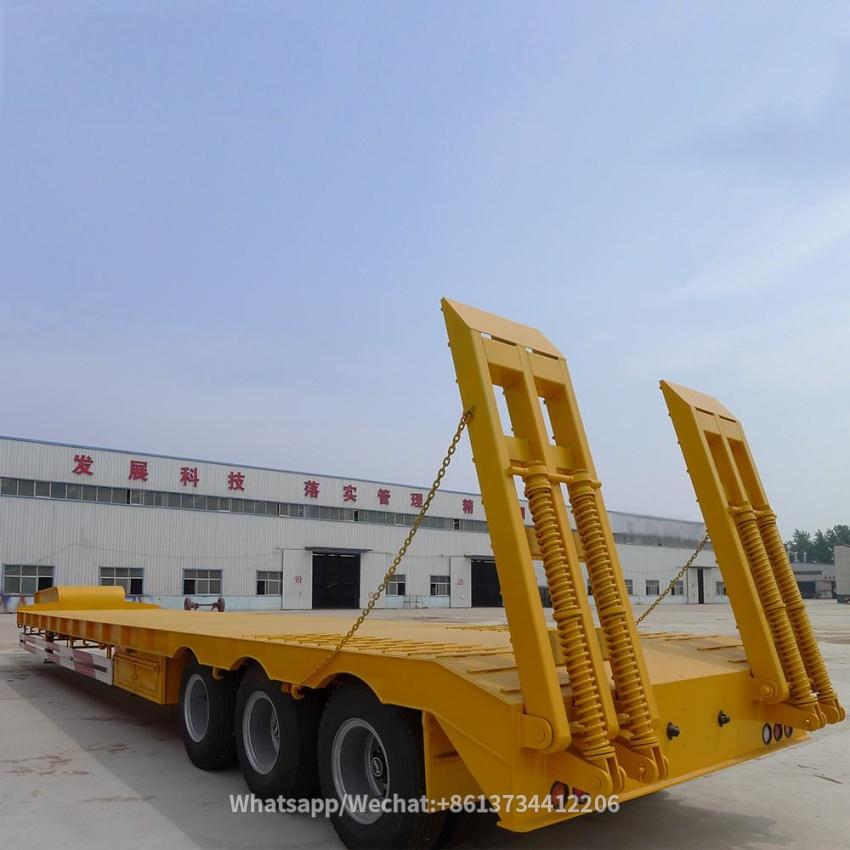

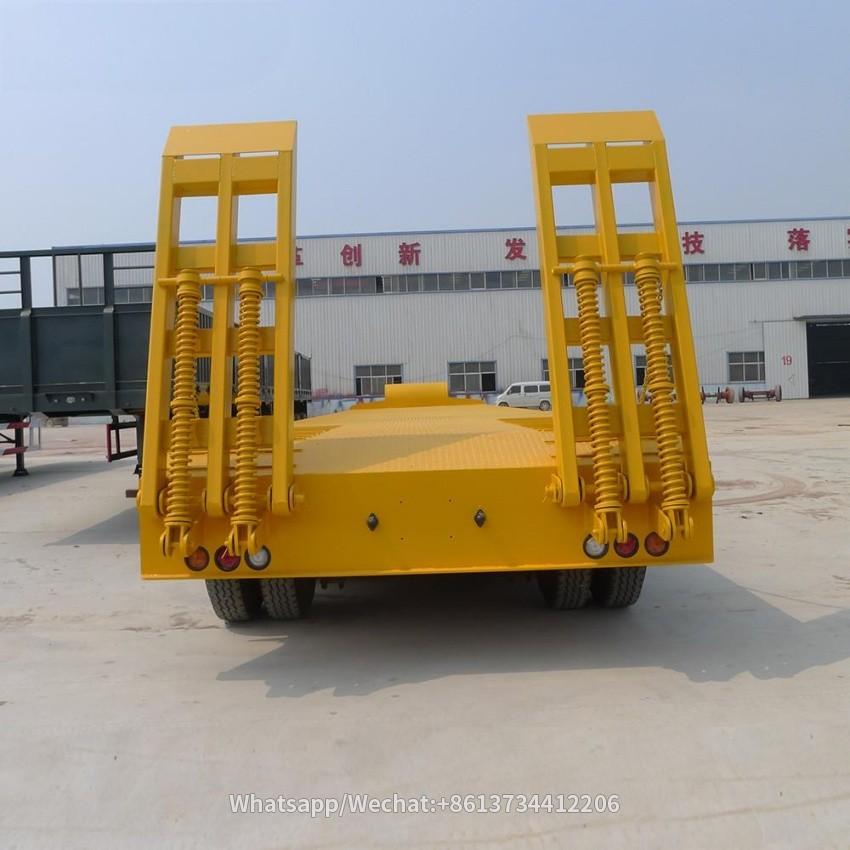

3 Axles 60 ton Excavator Lowbed Trailers Pictures and Delivery
FAQ for 3 Axles 60 ton Excavator Lowbed Trailers
Q: Are you Dealer or Factory for 3 Axles 60 ton Excavator Lowbed Trailers?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the 3 Axles 60 ton Excavator Lowbed Trailers?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the 3 Axles 60 ton Excavator Lowbed Trailers by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your 3 Axles 60 ton Excavator Lowbed Trailers quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for 3 Axles 60 ton Excavator Lowbed Trailers. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for 3 Axles 60 ton Excavator Lowbed Trailers, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for 3 Axles 60 ton Excavator Lowbed Trailers?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for 3 Axles 60 ton Excavator Lowbed Trailers?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for 3 Axles 60 ton Excavator Lowbed Trailers?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for 3 Axles 60 ton Excavator Lowbed Trailers:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for 3 Axles 60 ton Excavator Lowbed Trailers:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the 3 Axles 60 ton Excavator Lowbed Trailersand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the 3 Axles 60 ton Excavator Lowbed Trailersin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
3 Axles 60 ton Excavator Lowbed Trailersmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for 3 Axles 60 ton Excavator Lowbed Trailers:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for 3 Axles 60 ton Excavator Lowbed Trailers:
“ Howo Truck Export can provide timely service, the 3 Axles 60 ton Excavator Lowbed Trailerstrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order 3 Axles 60 ton Excavator Lowbed Trailersand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in 3 Axles 60 ton Excavator Lowbed Trailers of our company, don’t hesitate to contact me, the best service is waiting for you !
