3 Axles Hydraulic Detached Gooseneck Lowbed Trailer Function and Introduction:
3 Axles Hydraulic Detached Gooseneck Lowbed Trailer
Lowbed Trailer are usually used to transport heavy trucks (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-loaded goods. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport extra-high goods and pass overhead obstacles.
Structure and loading of Lowbed Trailer
Lowbed Trailer usually use a concave beam (or well-shaped) frame, that is, the front section of the frame is a gooseneck (the traction pin at the front section of the gooseneck is connected to the traction saddle on the tractor, and the rear end of the gooseneck is connected to the semi-trailer frame), the middle section is the cargo platform (the lowest part of the frame), and the rear end is the wheel frame (including wheels).
When loading mechanical equipment on a Lowbed Trailer, it is usually loaded from the rear end of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi-trailer.
Features
1. The Lowbed Trailer series has flat, concave beam and tire exposed structures, and the longitudinal beam adopts straight or gooseneck type. Its frame is ladder-shaped, and the longitudinal beam section is I-shaped, with high rigidity and high strength.
2. The main plane of the frame cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.
3. The three-axis balanced, two-axis balanced or rigid suspension is adopted, and a mass balance block is installed between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs change by the same amount, so that the front and rear axles are balanced.
4. The Lowbed Trailer series products are suitable for the transportation of various mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment and various steel materials. It has a wide range of uses and is efficient and fast. The whole vehicle adopts advanced computer-aided design software for flexible and diverse optimization design. The frame load-bearing surface is designed according to user requirements to meet the transportation of various special goods.
3 Axles Hydraulic Detached Gooseneck Lowbed Trailer Specifications
|
Trailer Model |
3 Axles Hydraulic Detached Gooseneck Lowbed Trailer |
|
Total size |
17150*3100*2500mm with extensions to 3700mm |
|
Working size(Lx W x H)(mm) |
8500*3100*800mm width with extensions to 3700mm |
|
Curb Weight(KG) |
15900 |
|
Loading Weight(KG) |
120000 |
|
Departure Angle |
16 |
|
Axle Brand |
18TON Axle anqiao Brand |
|
Axle Number |
3 |
|
Wheelbase(mm) |
1310+1310+1310 |
|
Suspension system |
Leaf spring suspension |
|
Steel Spring |
10/10/10 leaf spring suspension |
|
The material of Main beam |
Material HG60 The height of the beam is 500 mm, upper plate is 20mm,down plate is 25mm, middle plate is 16 mm. |
|
Side beam |
300mm |
|
Platform plate |
5mm Diamond plate |
|
Tire Type and quantity |
1200R20 12units |
|
Power station |
With 12kw Jianghuai power diesel engine |
|
gooseneck |
Hydraulic detachable gooseneck |
|
Traction Pin |
90MM or 50MM |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
2 Standard |
|
Brake system |
Dual Line braking system, |
|
Brake air chamber |
8 chambers |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core standard Cable. |
|
|
Side Guard |
According to customer’s requirement |
|
Painting |
Color as customer’s requirement |
|
Packing |
NUDE, Polish with wax before shipping |
|
Delivery way |
Transfer to Tianjin Port, and carry bulk shipment. |

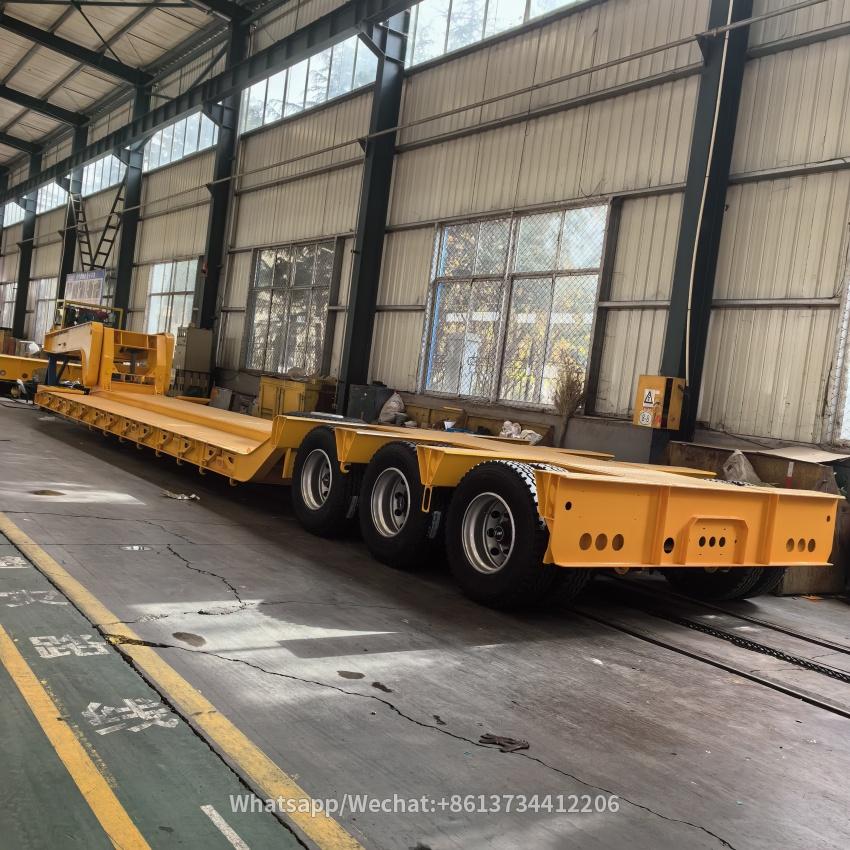

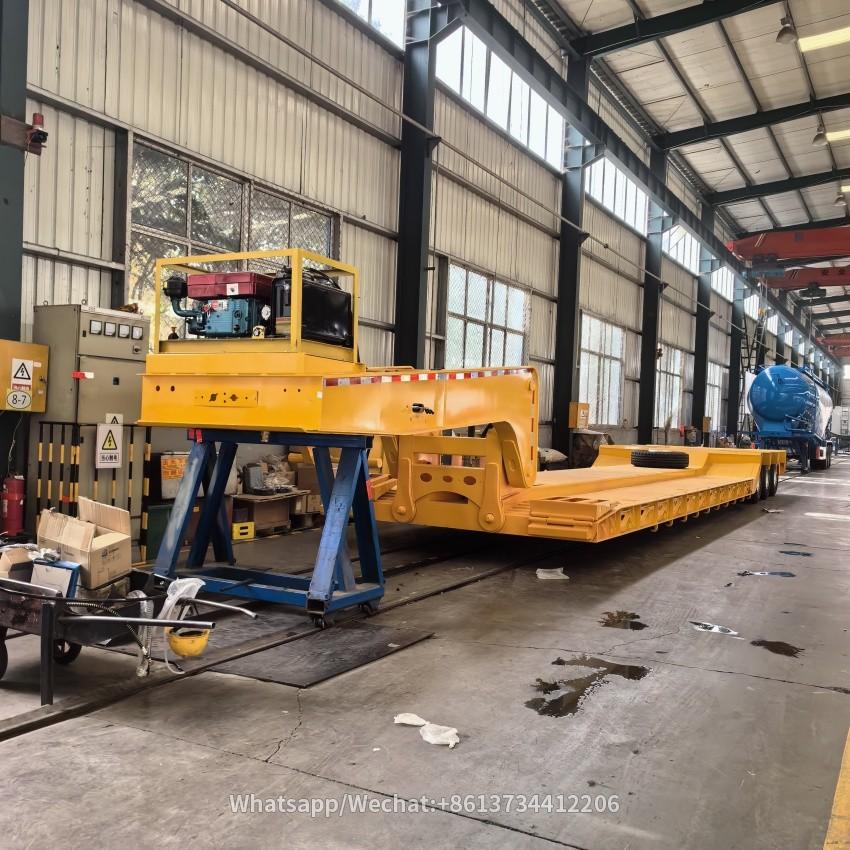

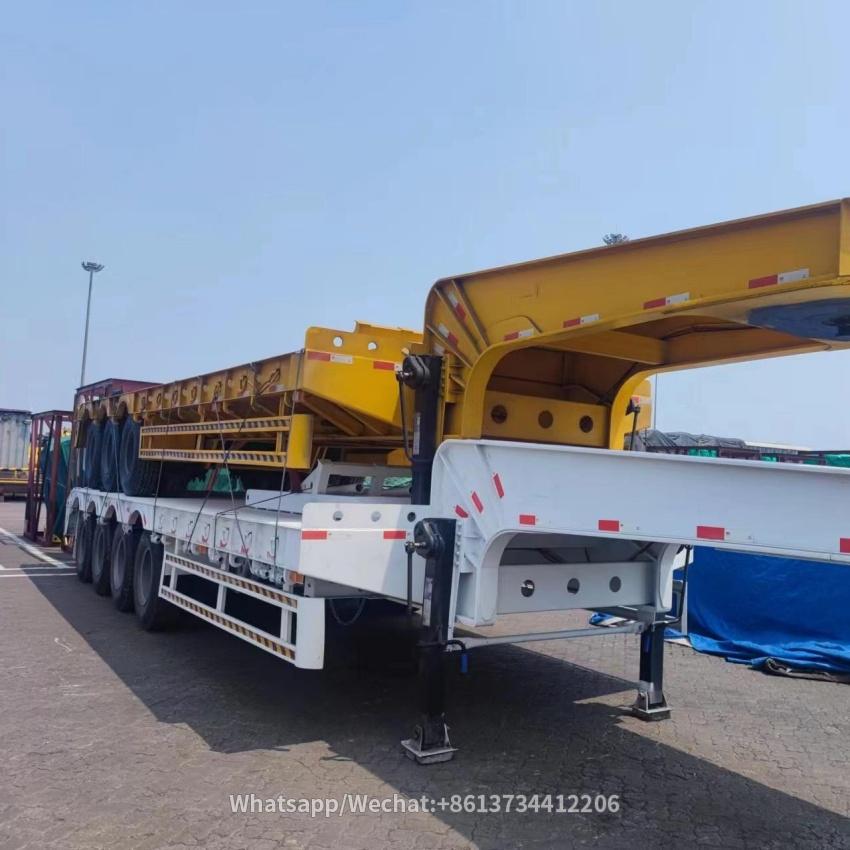

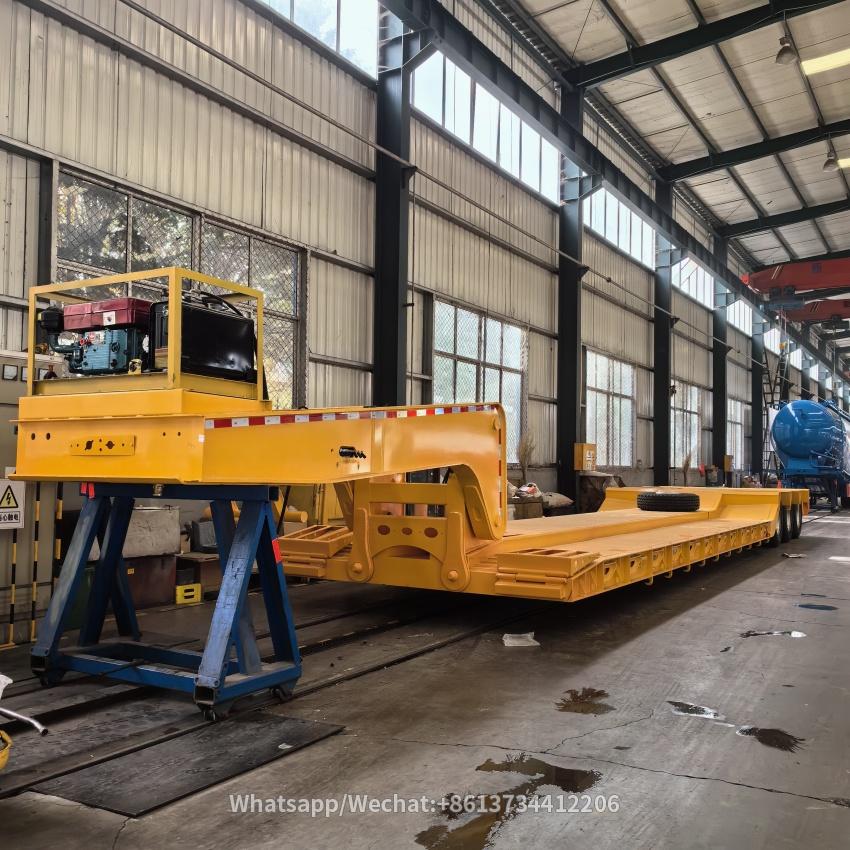

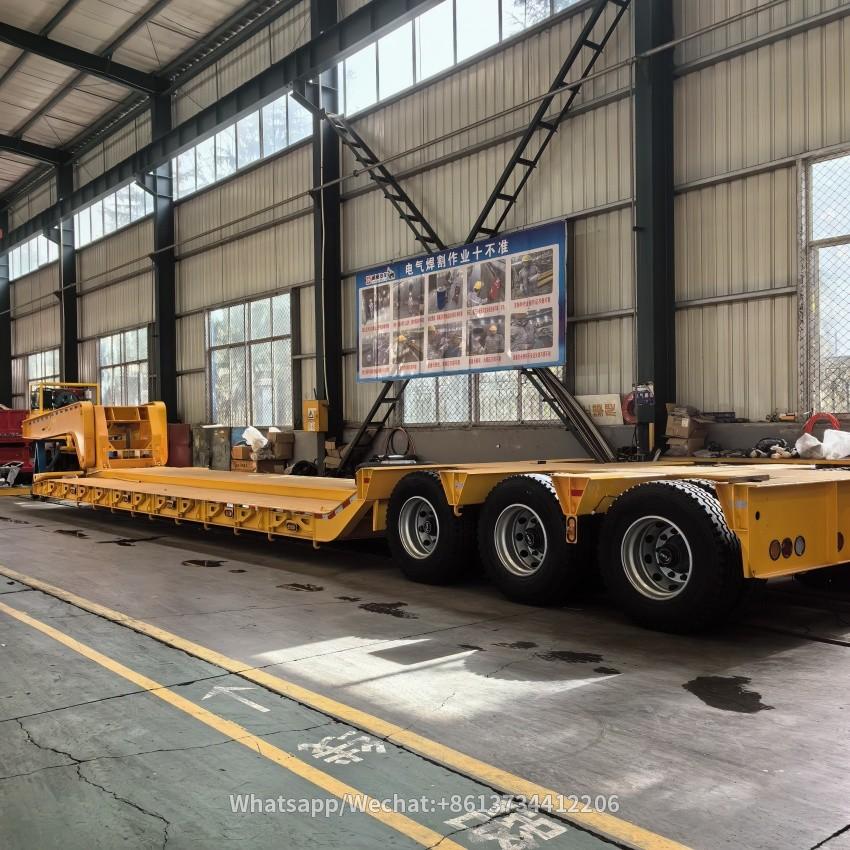

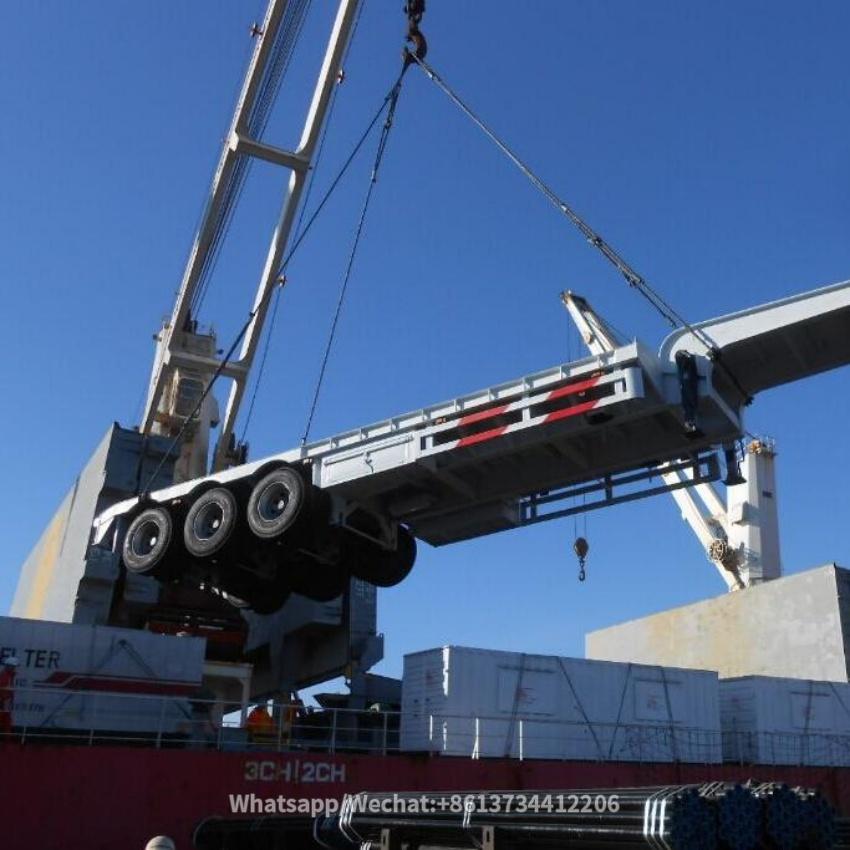

3 Axles Hydraulic Detached Gooseneck Lowbed Trailer Pictures and Delivery
FAQ for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer
Q: Are you Dealer or Factory for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for 3 Axles Hydraulic Detached Gooseneck Lowbed Trailer:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the 3 Axles Hydraulic Detached Gooseneck Lowbed Trailerand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the 3 Axles Hydraulic Detached Gooseneck Lowbed Trailerin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
3 Axles Hydraulic Detached Gooseneck Lowbed Trailermileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
