Description
4x2 Dump Truck Function and Introduction:
4x2 Dump Truck ( also called 4x2 Dump HOWO Truck, Sinotruk HOWO, howo Truck, Howo Dump Truck, Howo Price, Howo Dumper Truck, howo Tipper, 6 wheeler Truck, HOWO Tipper Truck, 4x2 Dumper Truck) is flexible for short-distance transportation and suitable for narrow areas. Best choice for small tonnage and rural construction.
4x2 Dump Truckis one of the brand for SINOTRUK, and SINOTRUK mainly organizes the development, production and sale of various dump trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
4x2 Dump Truck Specifications
4x2 Dump Truck
Model
ZZ3161M4311 LHD & RHD
Dimension(Lx W xH)（mm）
7500x2490x3250
Cargo body size (LxWxH) (mm)
4800x2300x1500 16.56M3
bottom:8mm, side:4mm
Hydraulic Lift System
Middle Lift
Approaching angle/Departure angle（°）
20.5/24
Overhang(front/rear) (mm)
1320/1880
Wheel base (mm)
4300
Max speed（km/h）
75
Curb weight（kg）
7720
Engine
(Steyr technology)
Model
D10.34,water-cooled, four strokes, 6 cylinders in line with water cooling，turbocharged and intercooling, directly injection
Fuel type
Diesel
Horse Power
340HP
Emission
EURO II
Fuel tanker capacity（L）
300
Transmission
Model
HW15710,10 forward gears,2 reverse
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
Steering system
Model
ZF8118
Front axle
HF7
Rear axle
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Color
White, Red,Yellow, Optional
Tyre
11.00R20
Electrical system
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Cab
HOWO70 cab, one sleeper, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
4x2 Dump Truck is used to transport sand, pebbles, soil, building materials, coal, ore, crops, agricultural products and other loose materials. 4x2 Dump Truck usually have a Hydraulically driven box bed articulation. The front of the open box can be lifted to unload material onto the ground behind the truck.

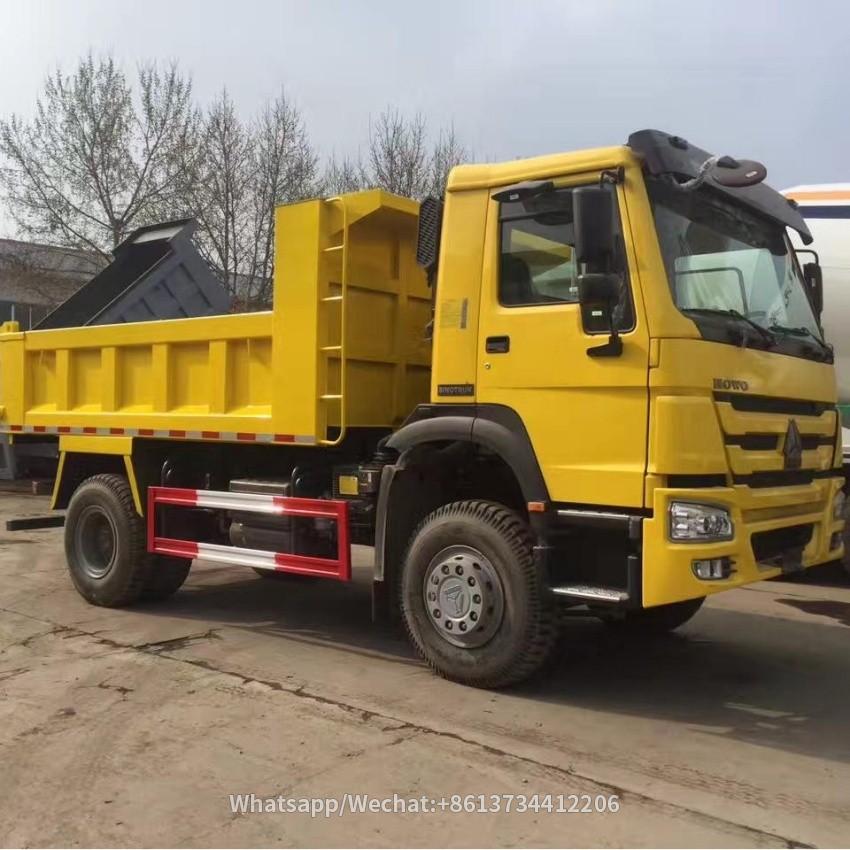

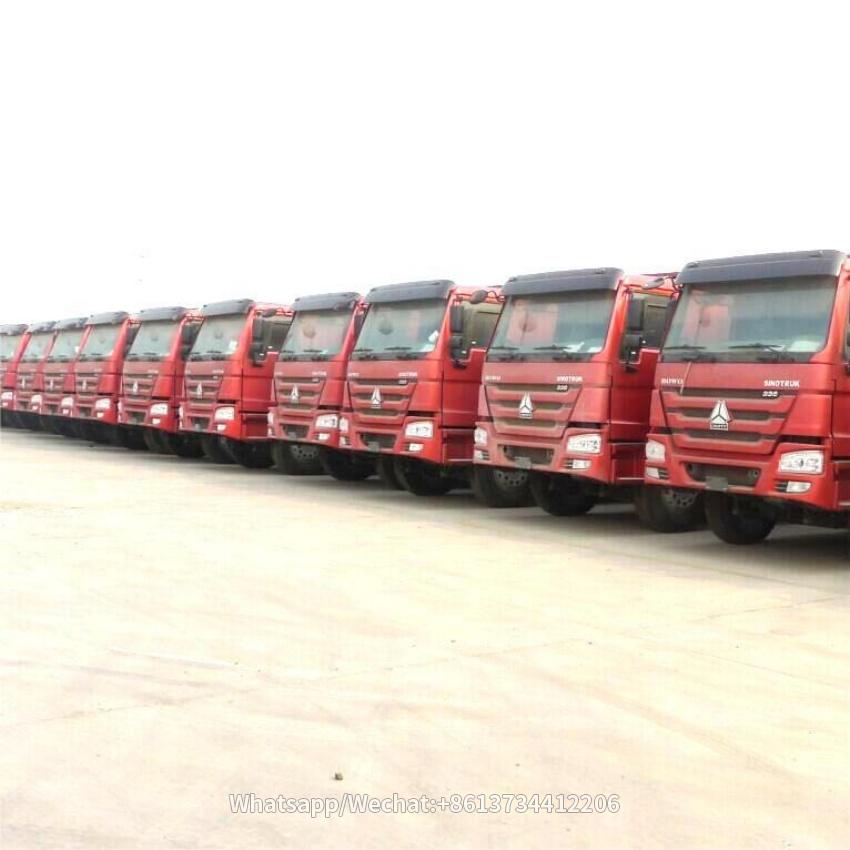

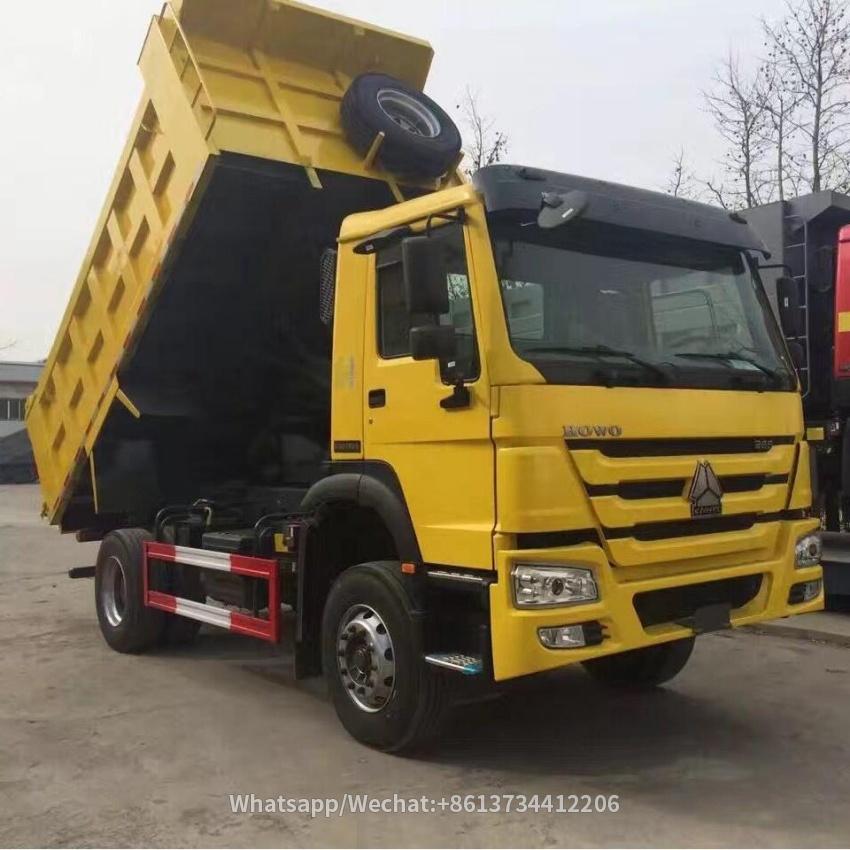

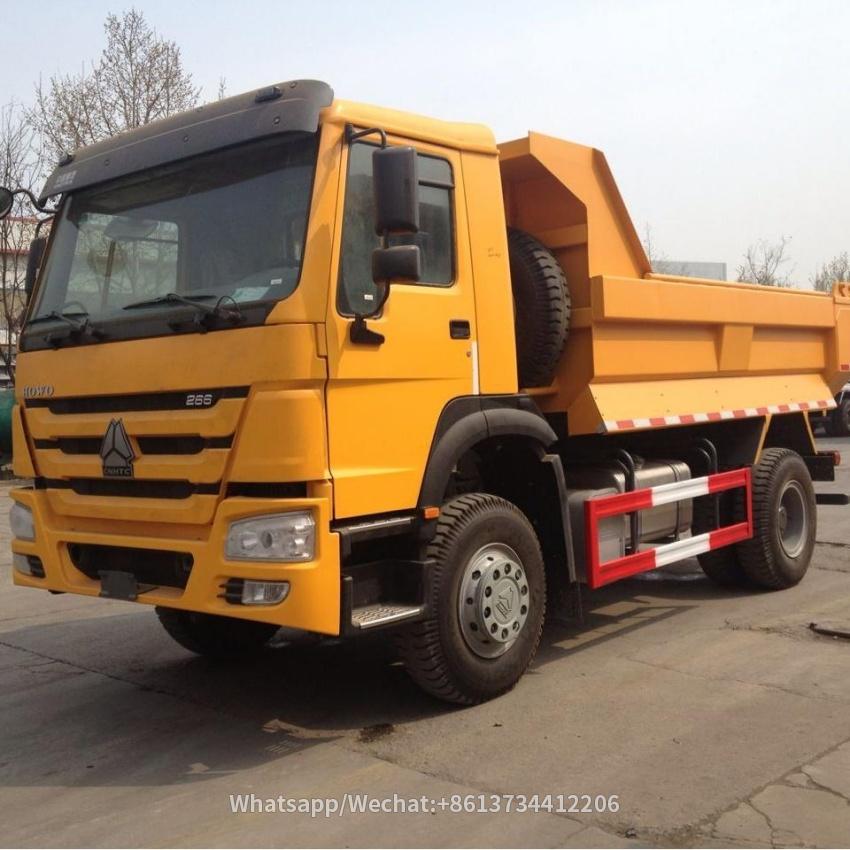

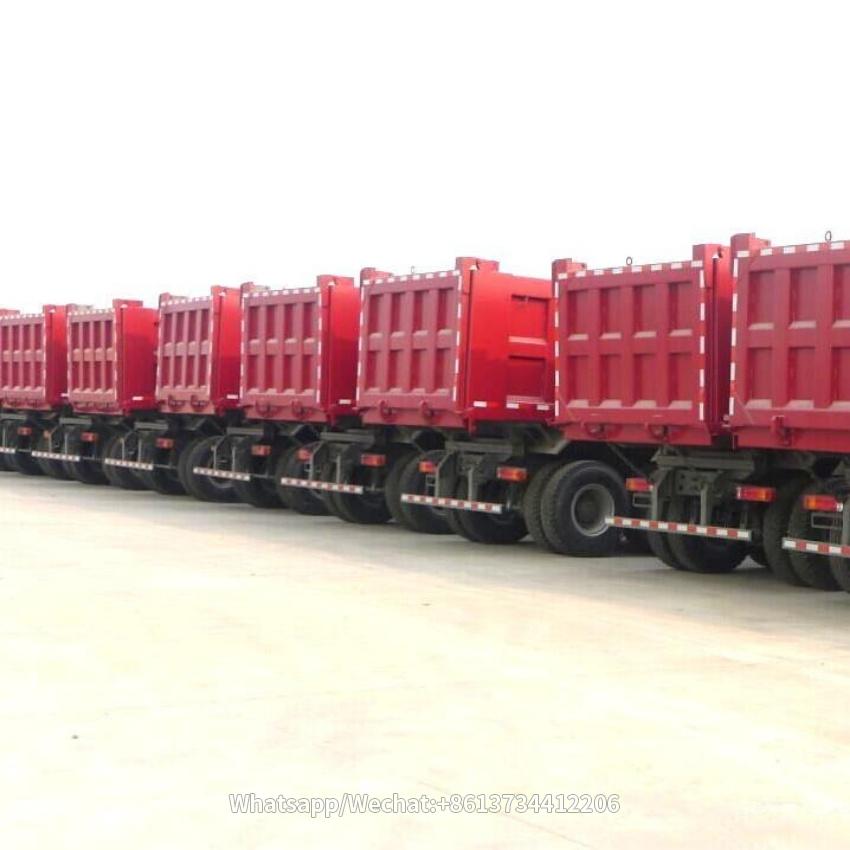

4x2 Dump Truck Pictures and Delivery
FAQ for 4x2 Dump Truck
Q: Are you Dealer or Factory for 4x2 Dump Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the 4x2 Dump Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the 4x2 Dump Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your 4x2 Dump Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for 4x2 Dump Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for 4x2 Dump Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for 4x2 Dump Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for 4x2 Dump Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for 4x2 Dump Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for 4x2 Dump Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for 4x2 Dump Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the 4x2 Dump Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the 4x2 Dump Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
4x2 Dump Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for 4x2 Dump Truck:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for 4x2 Dump Truck:
“ Howo Truck Export can provide timely service, the 4x2 Dump Trucktrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order 4x2 Dump Truckand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in 4x2 Dump Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
