Description
Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis Function and Introduction:
Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis are various vehicles built for special needs. Refers to vehicles that are mainly used to transport goods, and sometimes also refers to vehicles that can tow other vehicles, belonging to the category of commercial vehicles. Generally, they can be divided into heavy and light according to the weight of the vehicle. Most trucks use diesel engines as their power source, but some light trucks use gasoline, LPG or natural gas.
Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis usage cautions:
1) When optimizing with power performance as the target, on the basis of ensuring that the vehicle's fuel economy does not deteriorate, the vehicle's continuous shifting (0~80km/h) acceleration time is reduced by 3.2% when starting from the same place, and the direct gearing (0~80km/h) /h) The overtaking acceleration time is reduced by 13.7%, the climbing performance is also significantly improved, and the power of the entire vehicle is greatly improved;
2) When optimizing with fuel economy as the goal, on the basis of ensuring that the power of the car does not deteriorate, the car's speed is increased to 105km/h, and the fuel consumption per 100 kilometers at a constant speed of 40km/h is reduced by 17.64%, which is more than The fuel consumption per 100 kilometers under working conditions is reduced by 10.85%, and the fuel economy of the vehicle is significantly improved;
3) When weighing the optimization of power and fuel economy, on the basis of ensuring good vehicle power, the fuel economy of the vehicle is improved as much as possible. After optimization, the power of the vehicle has slightly decreased. The time for continuous shifting (0~80km/h) when starting from the same place is increased by 1.4%, and the time for overtaking acceleration in direct gear (30~80km/h) is increased by 3.8%. The fuel consumption per 100 kilometers at a constant speed has been reduced to varying degrees. The fuel consumption per 100 kilometers at a constant speed of 40km/h in the middle gear is reduced by 9.63%. The fuel consumption per 100 kilometers under multiple operating conditions of the vehicle is reduced by 7.12%. The fuel economy of the vehicle Significant improvement.
Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis Specifications
|
Truck Model |
ZZ1317N4667(LHD/RHD) |
||||
|
Truck Brand |
SINOTRUK –HOWO |
||||
|
Dimension |
11500*2496*3490mm |
||||
|
Driving Style |
Right/Left Hand Driving |
||||
|
Approaching angle/Departure angle（°） |
19/26 |
||||
|
Overhang(front/rear) (mm) |
1500/1739 |
||||
|
Wheel base (mm) |
WHEEL BASE: 1800 + 4600 + 1350MM |
||||
|
Max speed（km/h） |
75 |
||||
|
Maximum gradeability (%) |
40 |
||||
|
Minimum ground clearance(mm) |
314 |
||||
|
Minimum turning circle (m) |
20 |
||||
|
Curb weight（kg） |
13290 |
||||
|
Loading Weight（kg） |
25000 |
||||
|
Fuel tanker capacity（L） |
400 |
||||
|
Fuel consumption(L/km) |
28L/100 km |
||||
|
Clutch |
Single-plate dry clutch Φ430mm |
||||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
|||
|
Horse Power, max（kw/rpm） |
380HP，247/2200 |
||||
|
Emission |
EURO II |
||||
|
Model |
WP10.380E22 (EURO II) 4 Stroke Direct Injection Diesel RATED POWER:336 HP NO OF CYLINDER: 6 Cylinder in-line with water cooling, turbo intercooler. |
||||
|
Bore |
126mm |
||||
|
Stroke |
130mm |
||||
|
Compression ratio |
29.8hp/l |
||||
|
Specific fuel consumption |
195g/kwh |
||||
|
Transmission |
Model |
HW19710 10 forwarder 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake |
||||
|
Steering system
|
Model |
ZF8098 Hydraulic Steering with power assistance. |
|||
|
Front axle |
VGD95 |
||||
|
Rear axle |
MCX16ZG Ratio 4.8 |
||||
|
Tyre |
315/80 R22.5 |
||||
|
COLOR |
RED,WHITE ,YELLOW ETC OPTIONAL |
||||
|
Electrical system
|
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HOWO76 1 Sleeper all Steel forward control; 2 arm windscreen wiper system with 3 speed. |
||||
Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis can make the cargo body size as per customer want, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

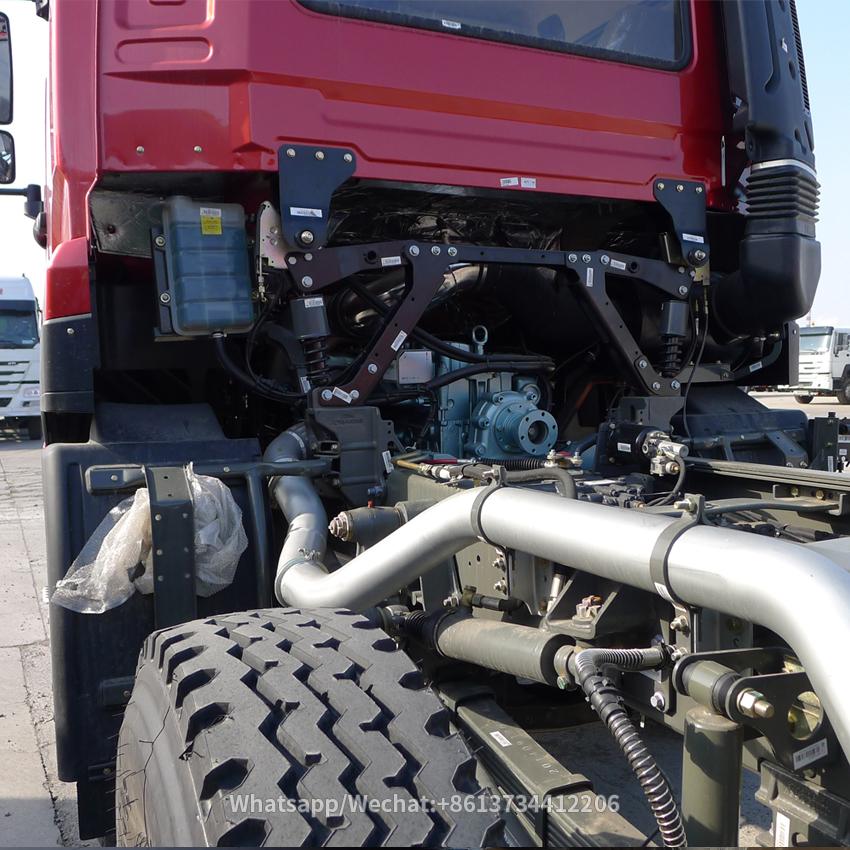

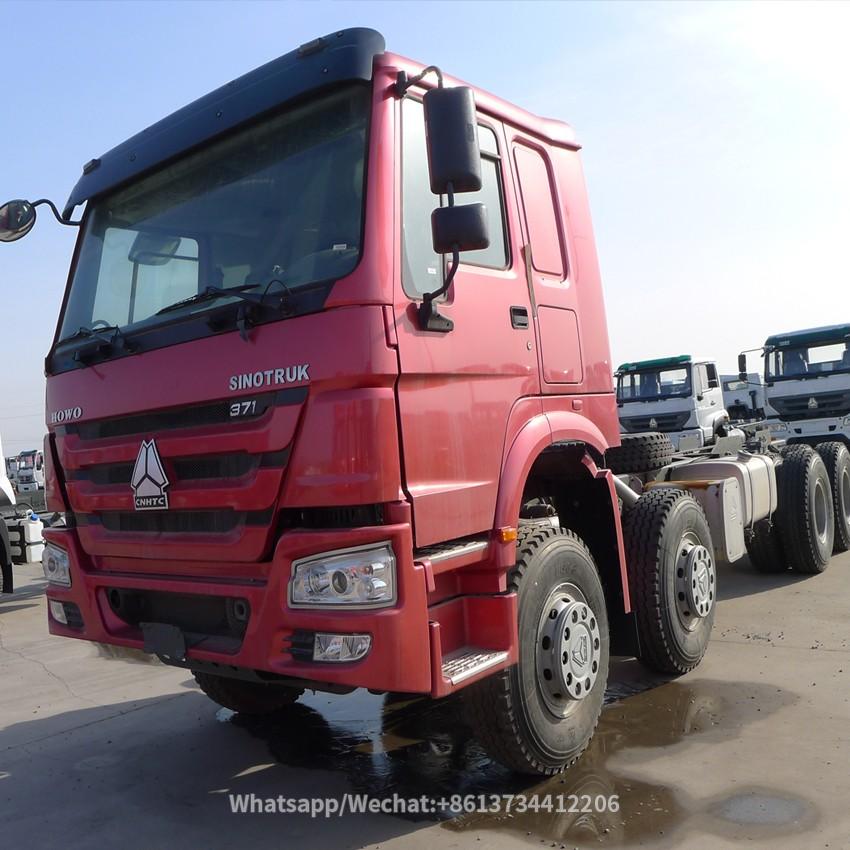

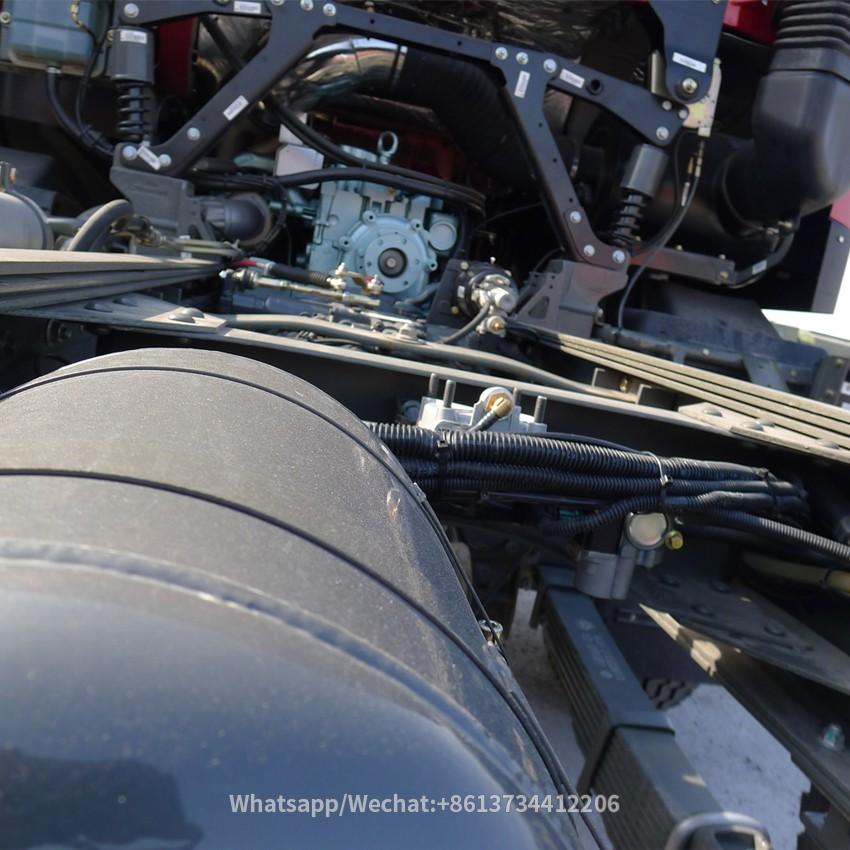

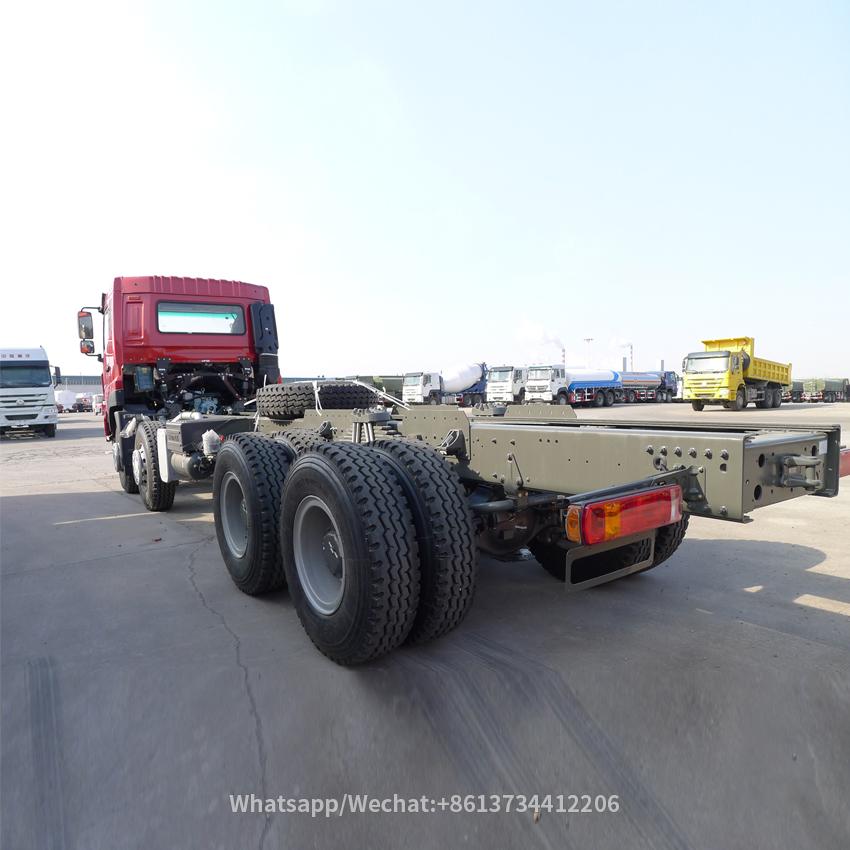

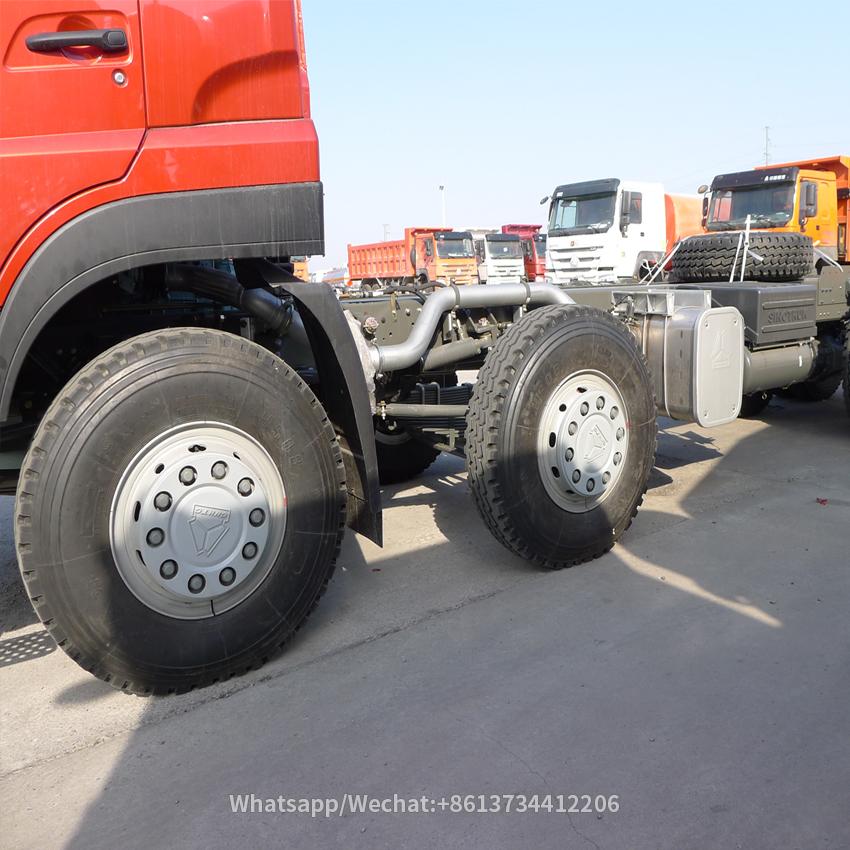

Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis Pictures and Delivery
FAQ for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis
Q: Are you Dealer or Factory for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassisand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassisin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassismileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis:
After the compulsory maintenance of the truck, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis:
“ Howo Truck Export can provide timely service, the Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis trucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”
--Mr.Sady
“ I order Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis from HOWO Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”
--Mr.Aman
If you are interested in Sinotruck 371 8x4 12 Wheeler Howo Cargo Truck Chassis of our company, don’t hesitate to contact me, the best service is waiting for you !
