Sinotruk Howo Nx Cargo Truck Chassis

Description

Sinotruk Howo Nx Cargo Truck Chassis Function and Introduction:

Sinotruk Howo Nx Cargo Truck Chassis is a vehicle used for watering urban streets and mining site. The water tanker truck is equipped with front flushing (spraying) and rear sprinkling, with side spraying, a working platform behind the tank, and a greening sprinkler cannon installed on the platform. The sprinkler cannon can rotate 360° and can be continuously adjusted to straight flushing, columnar or mist. The range is 15-30 meters, the water sprinkling width is ≧14 meters, with safety guardrails, equipped with Hangzhou Weilong sprinkler pump or Suizhou sprinkler pump, the pump can be self-priming and self-draining, installed with a filter, with a fire interface, can be fed through a fire hydrant, with a self-flow valve, and an optional 20-meter greening reel can be installed on the vehicle. Pesticides can be sprayed, and the tank is sprayed with metallic paint.

Sinotruk Howo Nx Cargo Truck Chassis is consist of a tank truck mainly includes the following parts:

1. Tank body

The tank body structure of the water sprinkler truck is elliptical or square, made of steel plate. The water tank of the whole vehicle tank body is 2-3 chambers, and there is a through hole at the lower end of the middle partition. The partition inside the tank has a wave-proof function. To reduce the impact of the liquid in the tank when the car is driving. An anti-rotation plate is installed at the water outlet to prevent the vortex from affecting the water pressure when sprinkling water. The surface is painted with anti-rust paint and decorative paint.

2. Tank mouth

Tank mouth assembly: The large cover is fastened to the tank door neck plate by bolts, connected by a support pin and a guard plate small cover. Turning the handle on the small cover clockwise can tighten the small cover. Reverse, after disengaging the ear plate, the small cover can be opened. There is a 30 hole on the large cover so that the pressure in the tank is basically consistent with the atmospheric pressure during the water addition process.

3. Power take-off

Special power take-off that matches the gearbox of each model, pneumatically or manually operated, pull the operating switch backward, the power take-off gear enters the meshing position, drives the water pump to work through the transmission shaft, and the switch returns forward, and the water pump stops working.

4. Water pump

The self-priming impeller pump is a special pump for water sprinkler trucks.

5. Ball valve

The water sprinkler truck is equipped with 7 Φ50mm stainless steel ball valves, 7, 8, 9, and 10 in Figure 1 are used to adjust the water spraying. One Φ50mm aluminum tank ball valve, 4 in Figure 1, is used to control pumping or water spraying. It is opened when pumping and closed when spraying. One Φ65mm fire ball valve can be connected to the fire hose for emergency fire extinguishing.

6. Sprinkler

The water sprinkler truck has a duckbill nozzle or a round-headed flushing nozzle in front, a cylindrical sprinkler weight at the back, and a side-spraying lotus head. An anti-aircraft spray gun is installed at the rear of the car.

Sprinklers are generally used to wash streets, remove dust and cool down. The spray direction and angle of the sprinkler can be changed by adjusting the nozzle thread. The high-altitude spray gun can be used for urban and rural landscaping and emergency fire trucks. The puff nozzle can wash away the dust stirred up by the sprinkler in the middle of the road, playing a role in cleaning the air.

Sinotruk Howo Nx Cargo Truck Chassis Specifications

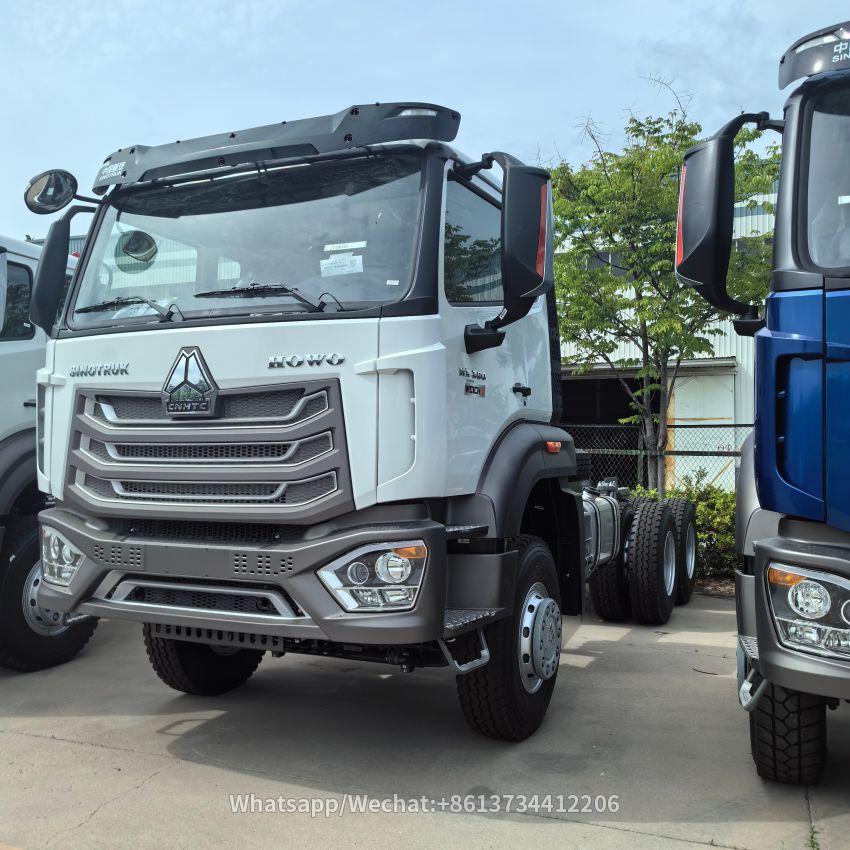

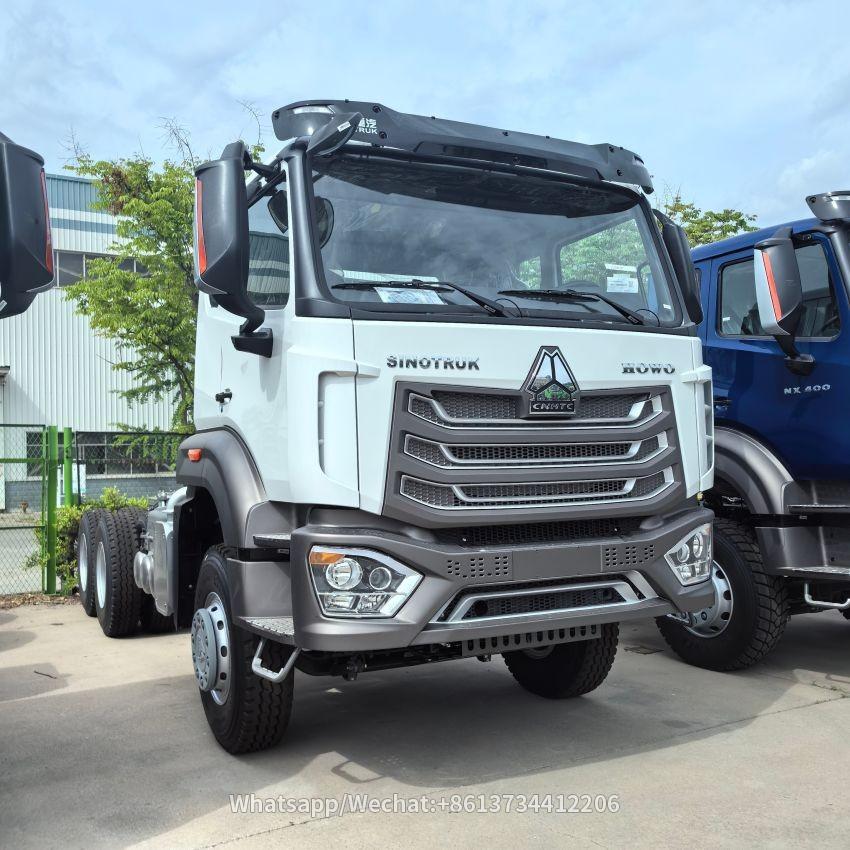

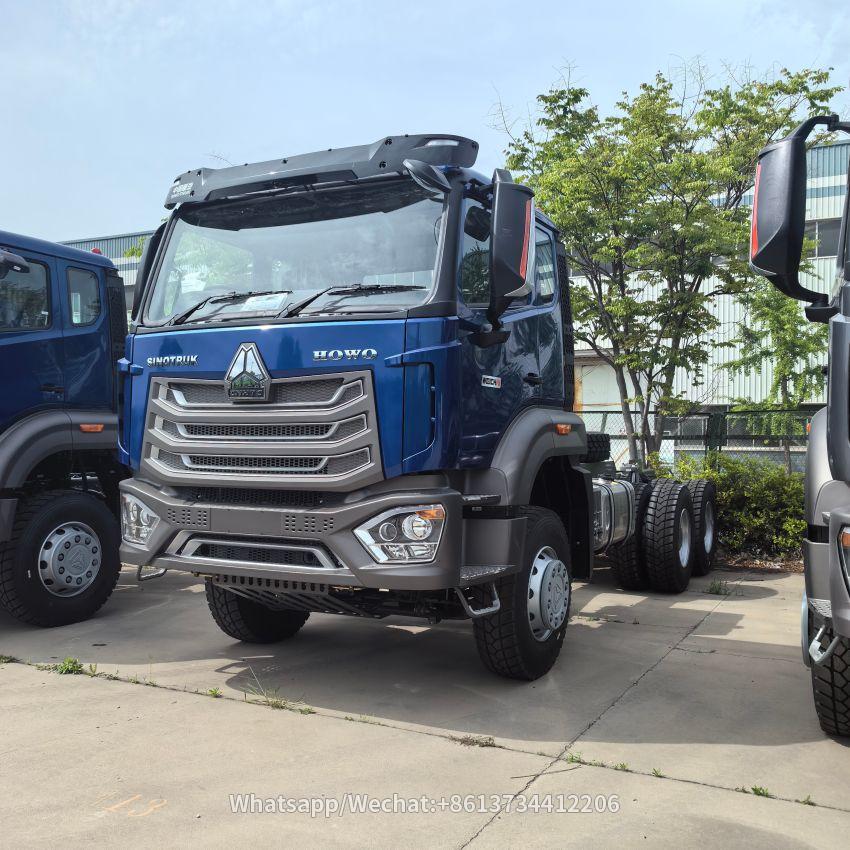

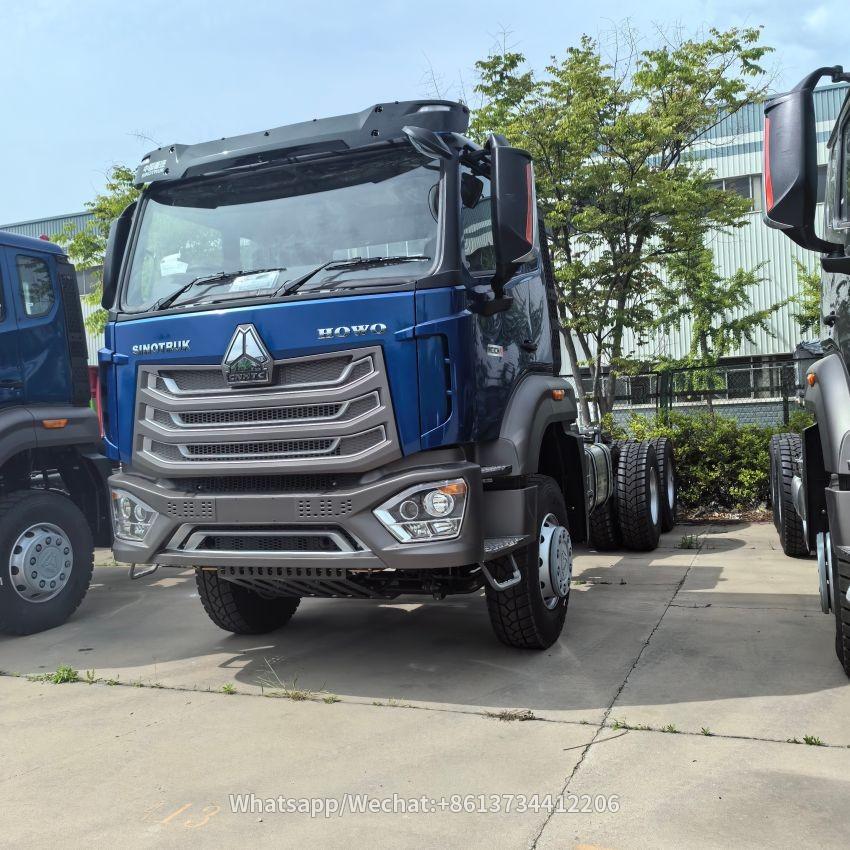

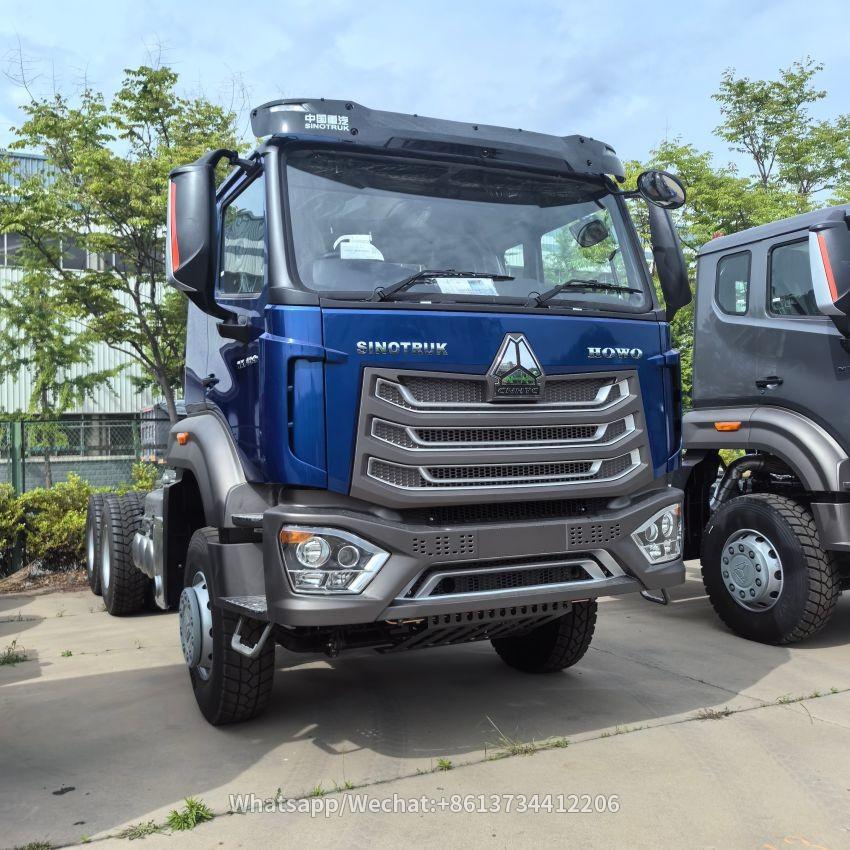

Sinotruk Howo Nx Cargo Truck Chassis Pictures and Delivery

FAQ for Sinotruk Howo Nx Cargo Truck Chassis

Q: Are you Dealer or Factory for Sinotruk Howo Nx Cargo Truck Chassis?

A: We are the factory, and we produce more than 20 years already.

Q: What is shipping method of the Sinotruk Howo Nx Cargo Truck Chassis?

A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.

Q: I want to transport the Sinotruk Howo Nx Cargo Truck Chassis by container, is it ok?

A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.

Q: How about your Sinotruk Howo Nx Cargo Truck Chassis quality?

A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.

Q: I want to be your agent in my country for Sinotruk Howo Nx Cargo Truck Chassis. is that ok?

A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.

Q: How about your company's service for Sinotruk Howo Nx Cargo Truck Chassis, especially after-sale service?

A: SINOTRUK/SHACMAN has many after sales service station over the world,  we can also provide spare parts from China for you to guarantee the Vehicles works well.

Q: What is your payment terms for Sinotruk Howo Nx Cargo Truck Chassis?

A: TT Payment, Normally its 30% prepaid and 70% balance before delivery

Q：what is the production time for Sinotruk Howo Nx Cargo Truck Chassis?

A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.

Q：What is your company after sales Service for Sinotruk Howo Nx Cargo Truck Chassis?

A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.

Our Advantages for Sinotruk Howo Nx Cargo Truck Chassis:

20 Years Of Production Experience

Advanced Production Line

Strong Scientific Research Strength

Reliable Quality

Professional And Timely Service

Compulsory maintenance for Sinotruk Howo Nx Cargo Truck Chassis:

In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruk Howo Nx Cargo Truck Chassisand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruk Howo Nx Cargo Truck Chassisin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.

Sinotruk Howo Nx Cargo Truck Chassismileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.

Regular maintenance for Sinotruk Howo Nx Cargo Truck Chassis:

After the compulsory maintenance of the truck, the vehicle will be maintained at  service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.

Customer Feedback for Sinotruk Howo Nx Cargo Truck Chassis:

“ Howo Truck Export can provide timely service, the Sinotruk Howo Nx Cargo Truck Chassis trucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”

--Mr.Sady

“ I order Sinotruk Howo Nx Cargo Truck Chassis from HOWO Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”

--Mr.Aman

If you are interested in Sinotruk Howo Nx Cargo Truck Chassis of our company, don’t hesitate to contact me, the best service is waiting for you !
