Description
Standard Specification
|
|
|
ITEM |
UNIT |
DATA |
|
General |
1 |
Model |
|
CDCD70F |
|
2 |
Rated Capacity |
kg |
7000 |
|
|
3 |
Load Center |
mm |
500 |
|
|
4 |
Power Type |
|
Diesel |
|
|
5 |
Transmission |
|
Hydraulic |
|
|
Dimensions |
6 |
Lifting Height |
mm |
3000 |
|
7 |
Free Lifting Height |
mm |
210 |
|
|
8 |
Turning Radius |
mm |
3450 |
|
|
9 |
Overall Length |
mm |
4800 |
|
|
10 |
Overall Width |
mm |
1995 |
|
|
11 |
Overall Height(mast lowered) |
mm |
2500 |
|
|
12 |
Overall Height (mast raised) |
mm |
4420 |
|
|
13 |
Overall Height (overhead guard) |
mm |
2420 |
|
|
14 |
Fork Length |
mm |
1220 |
|
|
15 |
Fork Width |
mm |
150 |
|
|
16 |
Fork Thickness |
mm |
65 |
|
|
Performance |
17 |
Max. Driving Speed (with/without load) |
Km/h |
22/26 |
|
18 |
Max. Lifting Speed (with load) |
Mm/s |
440 |
|
|
19 |
Max. Traction |
kn |
52 |
|
|
20 |
Gradeability (with/without load) |
% |
20/25 |
|
|
21 |
Tilting Angles (forward/backward) |
° |
6/12 |
|
|
22 |
Service Weight |
kg |
9500 |
|
|

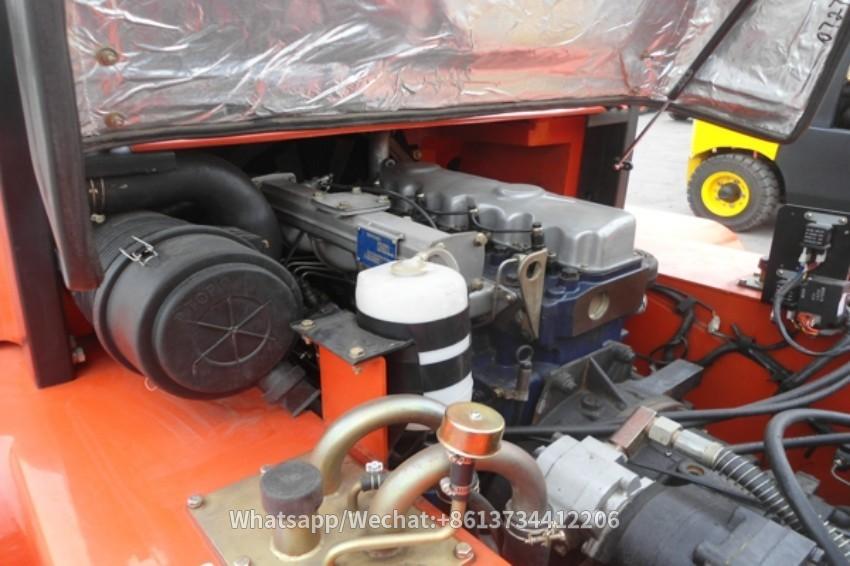

Engine |
23 |
Engine Model |
|
CHAOCHAI6102- BG/QC4115G |
|
24 |
Power |
kw |
80.9/85 |
|
|
25 |
Rated Speed |
rpm |
2500/2300 |
|
|
26 |
Displacement |
L |
5.785/5.61 |
|
|
27 |
No. Of Cylinder |
|
6 |
|
|
Wheel |
28 |
Front Overhang |
mm |
632 |
|
29 |
Wheel base |
mm |
2250 |
|
|
30 |
Front Tread |
mm |
1470 |
|
|
31 |
Rear Tread |
mm |
1700 |
|
|
32 |
Front Tire |
|
8.25-15.14 |
|
|
33 |
Rear tire |
|
8.25-15.14 |
Optional Equipment:
Optional Engine:EUR II ISUZU 4JG2PE-01 Made in Japan 45KW
EUR III ISUZU C240 34.5KW Made in Japan
EPA/EURIII YANMAR 4TNE98 42KW
ISUZU 4JB1 39KW
A490BPG CHINA ENGINE
EPA/EUR II C490BPG CHINA ENGINE
EUR III ENGINE C490BPG
EUR III ENGINE A498BT1
DEUTZ DACHAI 498-97 42.5(45)KW
Tire:Solid tire
Dual pneumatic front wheel
Side Shifter
Electric Shift
Cab:Fan,Heat
Seat:Good Seat(Toyota)/TOYOTA DAMPING SEAT
Mast:Full-free Lift mast
2-Stage Mast 3.3/3.5/4/5M
3-Stage Mast 7.3/6/5.5/5/4.8/4.5M
Special forks:Length 1220/1370/1520/1820/2000/2200/2500mm
Fork special for Handling stone
Fork cover 1.8/2/2.4M
