Description
Howo Tipper Truck Function and Introduction:
Howo Tipper Truck ( also called 6x4 Dump HOWO Truck, Sinotruk HOWO, howo Tipper Truck, Howo Dump Truck, Howo Truck Price, Howo Dumper Truck, howo Tipper, 10 wheeler Truck, 10 Wheeler Tipper Truck, 6X4 Dumper Truck, mining dump truck, 30 tons dump truck), has a dump truck cargo box controlled by a hydraulic lifting mechanism, which can be moved or tilted at a certain angle to facilitate unloading by itself or horizontally.
Howo Tipper Truck is one of the brand for SINOTRUK, and SINOTRUK mainly organizes the development, production and sale of various dump trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
Howo Tipper Truck Specifications
Howo Tipper Truck
Truck Model
ZZ3257V3647B1
Truck Brand
SINOTRUK –HOWO
Driving Style
LHD/RHD
Curb weight
12290KGS
Loading capacity
25tons to 35tons
Dimension(Lx W x H)（unloaded）（mm）
8214x2496x3450
Cargo body size (L*W*H, mm) (mm)
5600x2300x1500 19.3m3
Cargo thickness(mm)
Bottom:8mm, Side:6mm
Lift type of Carriage
Middle side
Approaching angle/Departure angle（°）
19/26
Overhang(front/rear) (mm)
1500/1739
Wheel base (mm)
3625+1350
Max speed（km/h）
75
Maximum gradeability (%)
40
Minimum ground clearance(mm)
314
Minimum turning circle (m)
20
Curb weight（kg）
12290
Loading Weight（kg）
25000
Fuel tanker capacity（L）
300
Fuel consumption(L/km)
28L/100 km
Clutch
Single-plate dry clutch Φ430mm
Engine Model
(Steyr technology, made in China)
Fuel type
Diesel
Horse Power, max（kw/rpm）
380HP，247/2200
Emission
EURO II
Model
WP10.380，water-cooled，four strokes，6 cylinders in line with water cooling , directly injection
Bore
126mm
Stroke
130mm
Compression ratio
29.8hp/l
Specific fuel consumption
195g/kwh
Transmission
Model
HW19710, 10 forwards and 2 reverse
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
Auxiliary brake
Engine exhaust brake
Steering system
Model
ZF8118 hydraulic steering with power assistance
Front axle
VGD95 , Steering with double T-cross section beam
Rear axle
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Color
Optional (White ,Red ,yellow )
Tyre
12.00R20 11pcs
Electrical system
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Cab
HOWO76 cab, single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Howo Tipper Truck is mainly used to transport bulk materials (such as sand, soil, ore, etc.) or overall materials. It is mainly used in mines, construction sites, etc. It can be divided into special dump truck, ordinary tipper truck and mining tipper truck.
Howo Tipper Truck is the most popular dump trucks used a lot in Africa bad road condition.

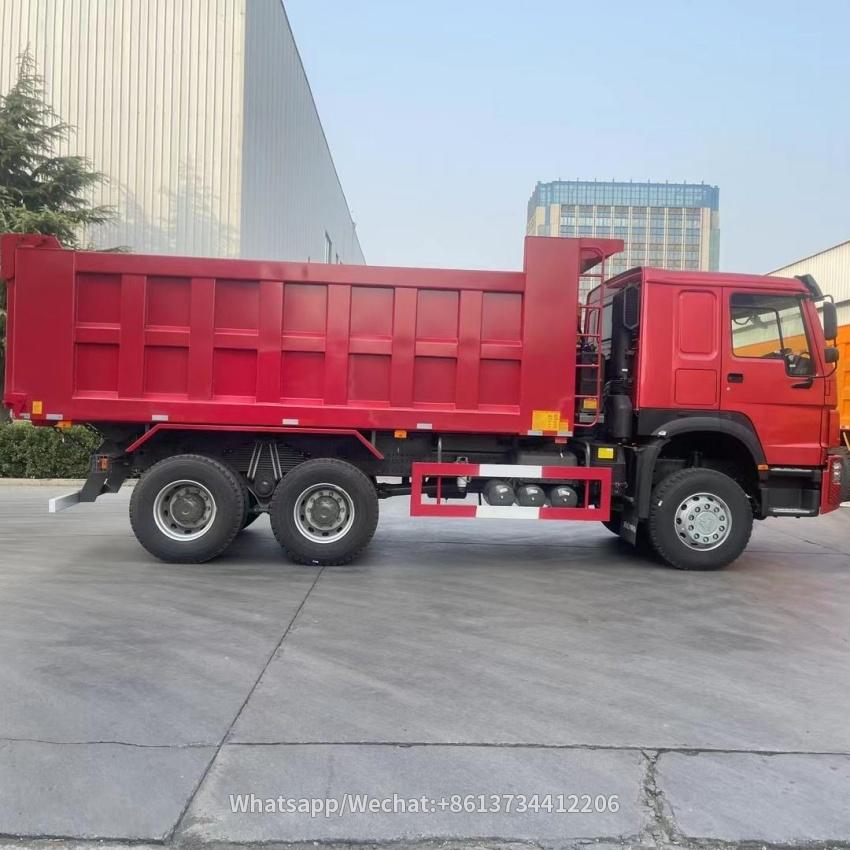

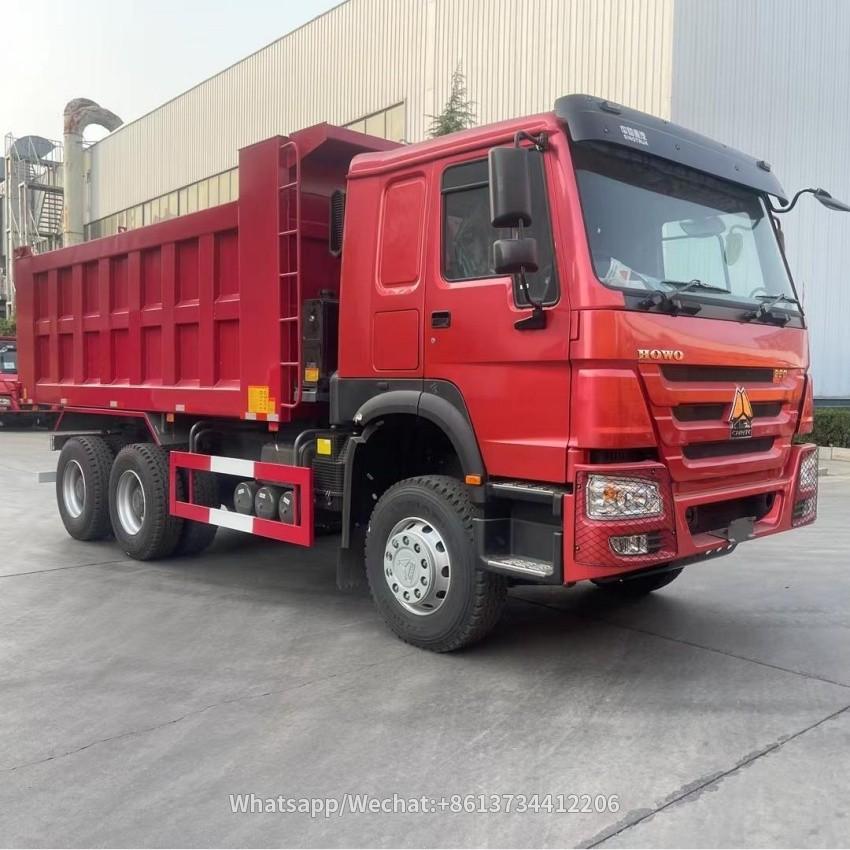

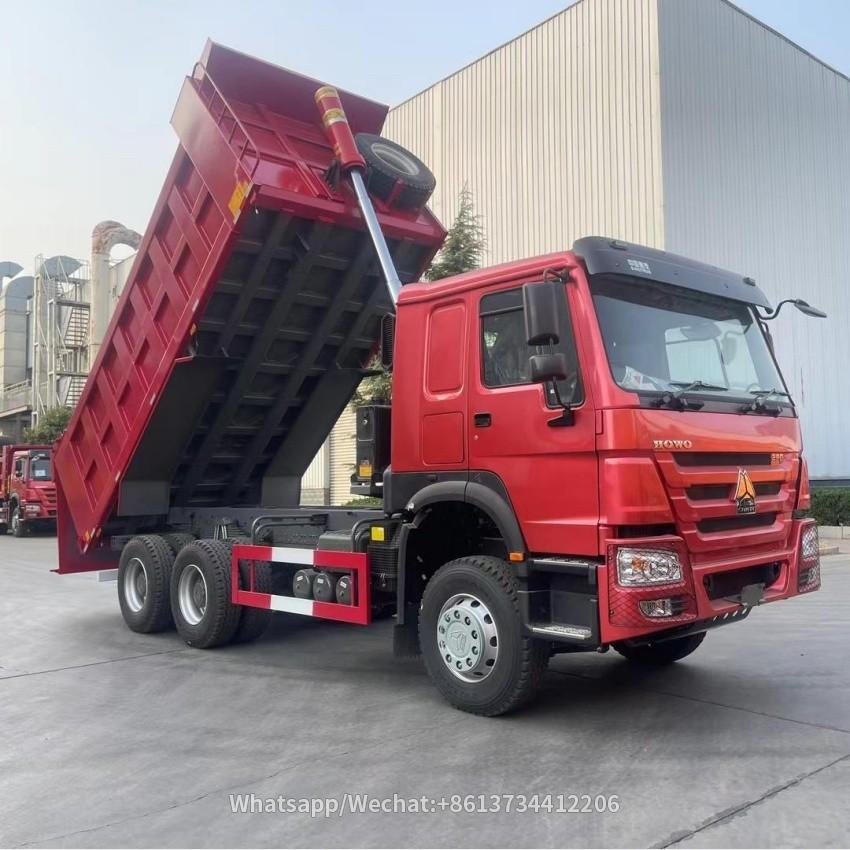

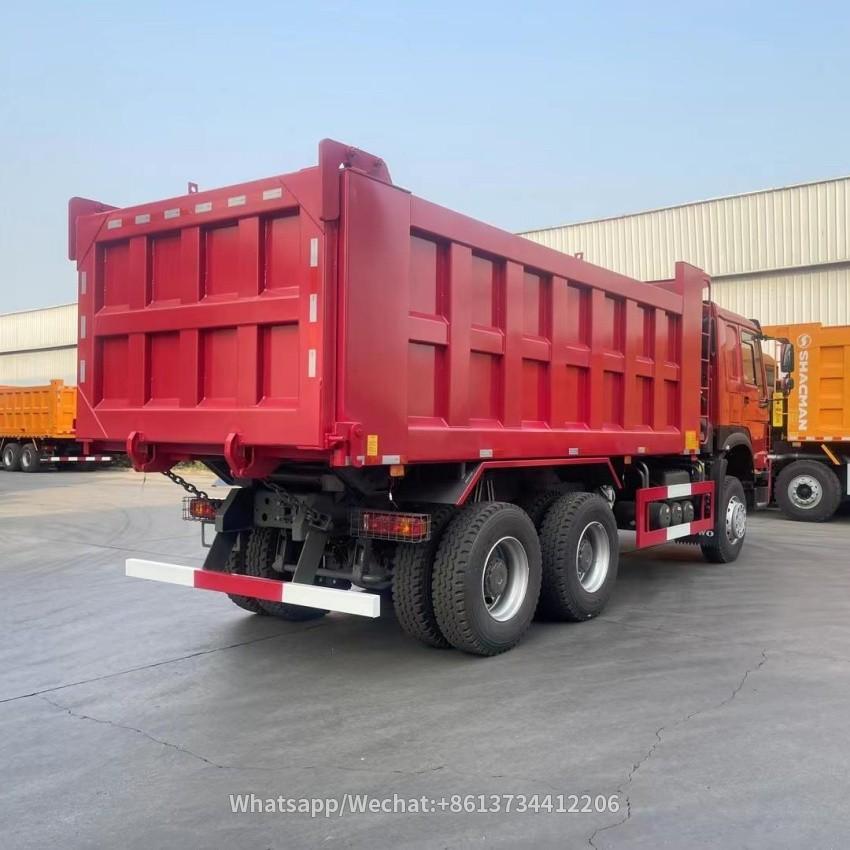

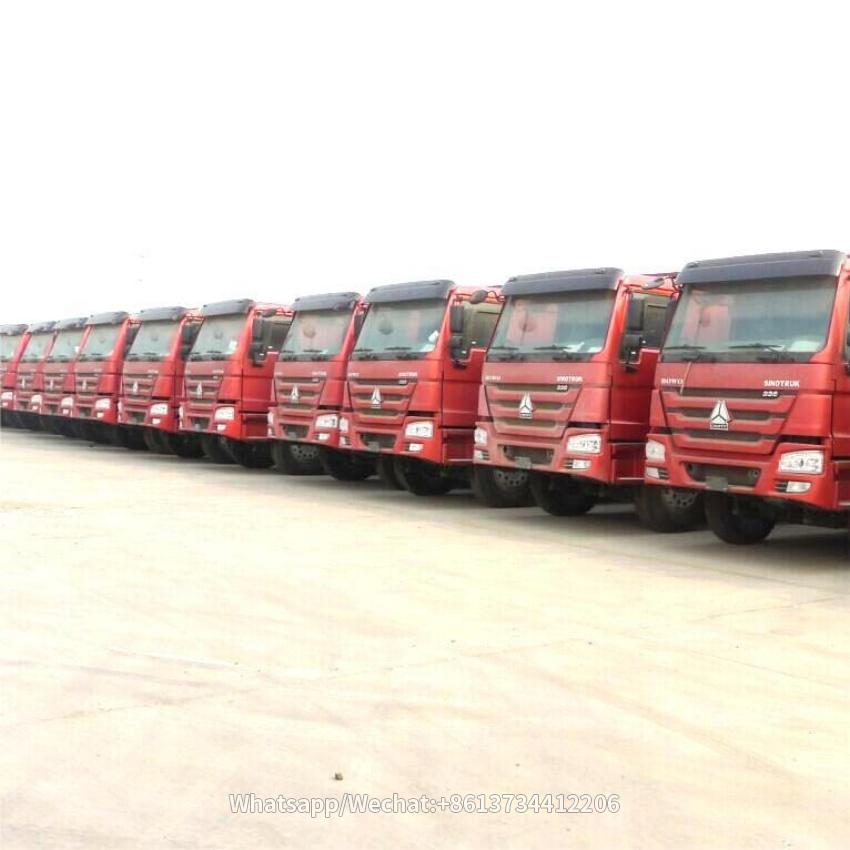

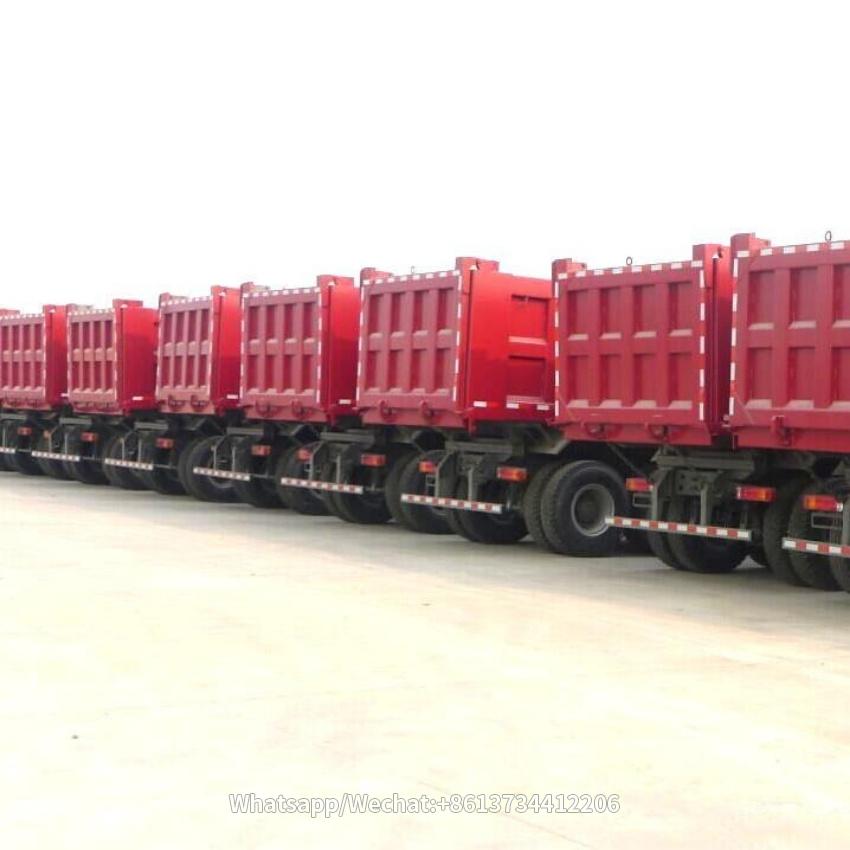

Howo Tipper Truck Pictures and Delivery
FAQ for Howo Tipper Truck
Q: Are you Dealer or Factory for Howo Tipper Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Howo Tipper Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Howo Tipper Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Howo Tipper Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Howo Tipper Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Howo Tipper Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Howo Tipper Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Howo Tipper Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Howo Tipper Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Howo Tipper Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Howo Tipper Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Howo Tipper Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Howo Tipper Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Howo Tipper Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Howo Tipper Truck:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Howo Tipper Truck:
“ Howo Truck Export can provide timely service, the Howo Tipper Trucktrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order Howo Tipper Truckand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in Howo Tipper Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
