Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck Function and Introduction:
Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck is Street wrecker power engineering vehicle, also known as a tow truck, is composed of a chassis, a lifting device, a lifting and traction device, a hydraulic system, an electronic control system, a vehicle body and a tool box. It has multiple functions such as lifting, pulling and lifting and traction, and is suitable for clearing obstacles on highways and urban roads.
Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck Structure:
How to choose a road tow truck depends on the actual use environment. Different working environments determine the selected tow truck. For example, if you need to lift a broken car that has overturned in a ditch during rescue, you need a flatbed tow truck with a car sling. When choosing a road tow truck, you should also pay attention to the following two points:
Choose the type of tow truck, one-to-one flatbed tow truck, one-to-two flatbed tow truck, towed joint tow truck, towed separated tow truck, full-floor tow truck, semi-floor tow truck, multi-function tow truck, etc.
Choose the size of the tow truck, 3 tons, 4 tons, 8 tons, 16 tons, 20 tons, 30 tons, 50 tons, etc.
Different towoperation environments have different configuration requirements for tow trucks. On the same highway, some sections have more medium-sized trucks and long-distance buses, while others have more medium- and heavy-duty trucks. In this regard, the configuration of tow trucks should be different. The former should be equipped with more medium- and heavy-duty tow trucks with devices that can clear large buses, while the latter should be equipped with super-heavy tow trucks. In the same urban traffic police department, some places need to clear more illegal motorcycles, while others need to clear more illegal cars. In this regard, the former should be equipped with a tow truck with a motorcycle lifting platform, while the latter should be equipped with a clamp-type tow truck.
Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck Specifications
|
Product |
SINOTRUK HOWO 30Ton towing wrecker truck |
|
|
Chassis Model |
ZZ1317N4667W,left hand drive |
|
|
Color of truck |
White ,Red,or as customer’s requirement |
|
|
Parameters |
Overall dimension length/width/height (mm) |
11460×2500×3460 |
|
Total Mass(kg) |
31,000 |
|
|
Fuel Type |
diesel |
|
|
Max Speed（km/h) |
102 |
|
|
Engine |
Type |
WP10.380E22 ;6-cylinder in Line; Water Cooling Direct Injection diesel engine; Turbo charged & inter-cooler; |
|
Emission standard |
Euro 2 |
|
|
Displacement(ml)/Power(HP) |
9726/371 |
|
|
Manufacturer |
China National Heavy Duty Truck Group Co.,Ltd |
|
|
Chassis |
Drive type |
8×4 |
|
Wheelbase(mm) |
1800+4600+1350 |
|
|
Transmission |
HW19710, 10 Forwards & 1 Reverse |
|
|
Steering wheel |
Has power steering |
|
|
Cab |
Non-longheaded,single row with a bed,whole metal-enclosed |
|
|
Clutch |
420mm, Single Dry Plate, |
|
|
Suspension spring: Number of spring (front/rear) |
11/11/12 |
|
|
Tire Type |
12units+1 spare tires, 12R22.5 |
|
|
Maximum Gradeability |
30% |
|
|
Air-condition |
YES |
|
|
Lifting organ |
Max Lifting Capacity |
30,000 Kg |
|
Boom full back ,lifting angle 30°, lifting capacity |
18,000kg |
|
|
Boom Fully extended,lifting angle 30°,lifting capacity |
7800kg |
|
|
Boom basic length |
5880mm |
|
|
Lift-boom telescope length |
6,000 mm |
|
|
Boom Lifting Height |
12,300 mm |
|
|
Rotary Angle of Boom |
360°all rotation |
|
|
Boom Elevation Angle |
0~60° |
|
|
Winch |
Winch Rated Pulling Force |
2 Winches; 150KN each; |
|
Winch Rope |
Length 45m; Diameter 18mm |
|
|
Hoisting organ |
Towing Capacity |
30Ton |
|
Maximum Lift Capacity of Underlift |
25,000 Kg |
|
|
Fully extended max under-hoisting capacity |
8,300kg |
|
|
Max under-hoist useful length |
3650mm |
|
|
Under-hoist Extension Range |
1,750 mm |
|
|
Underlift Elevation angle in working condition |
-7°～16° |
|
|
Underlift Elevation angle |
-7°～92° |
|
|
Outrigger |
Outriggers Capacity |
4×147 KN |
|
Span of Front Outriggers |
H type, 6600 mm |
|
|
Span of Rear Outriggers |
L type, 4080 mm |
|
Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck can make the volume as per customer want, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

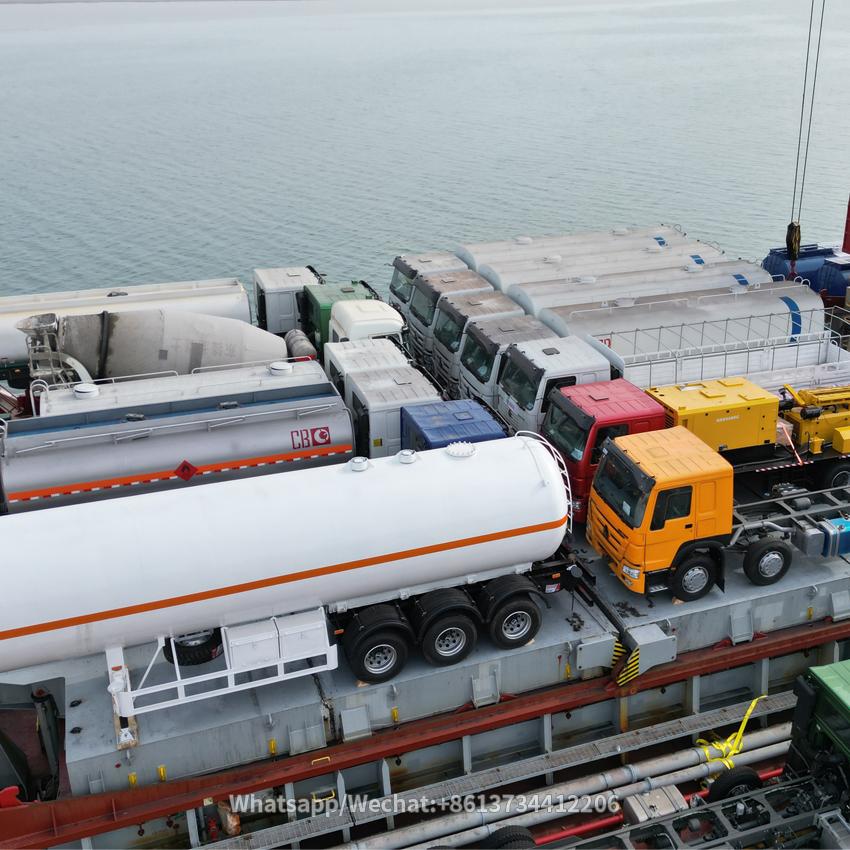

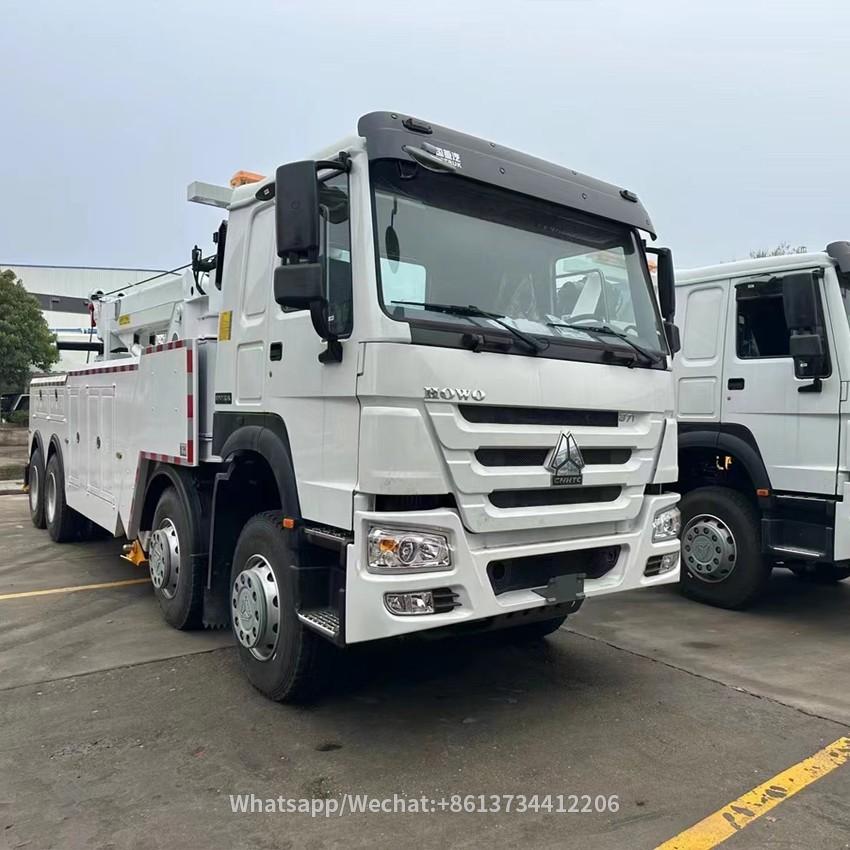

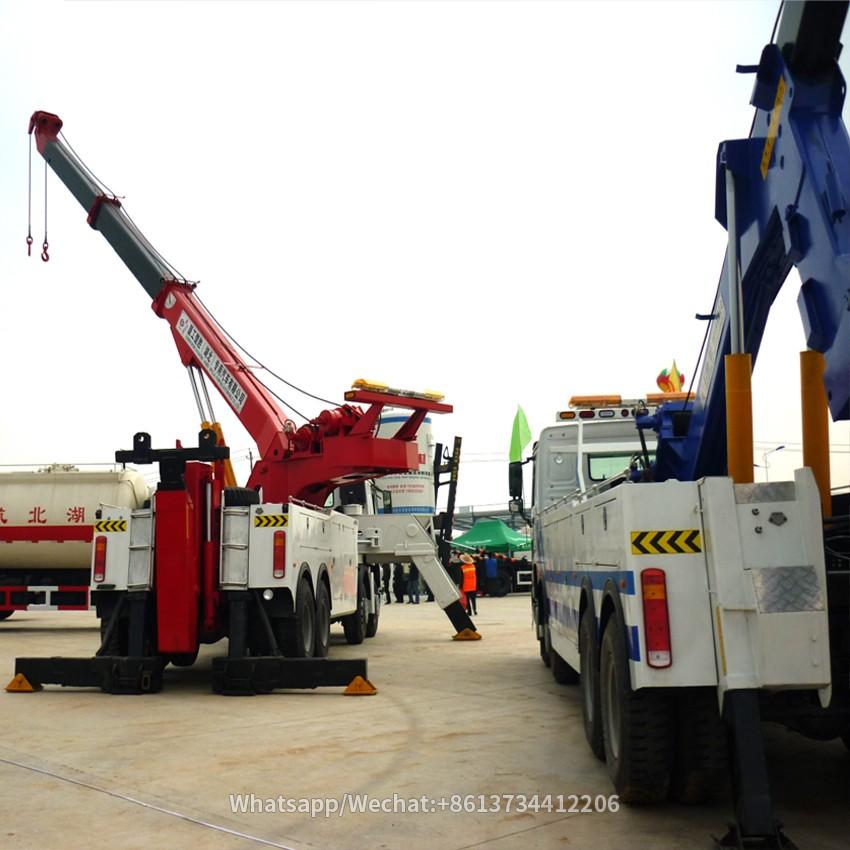

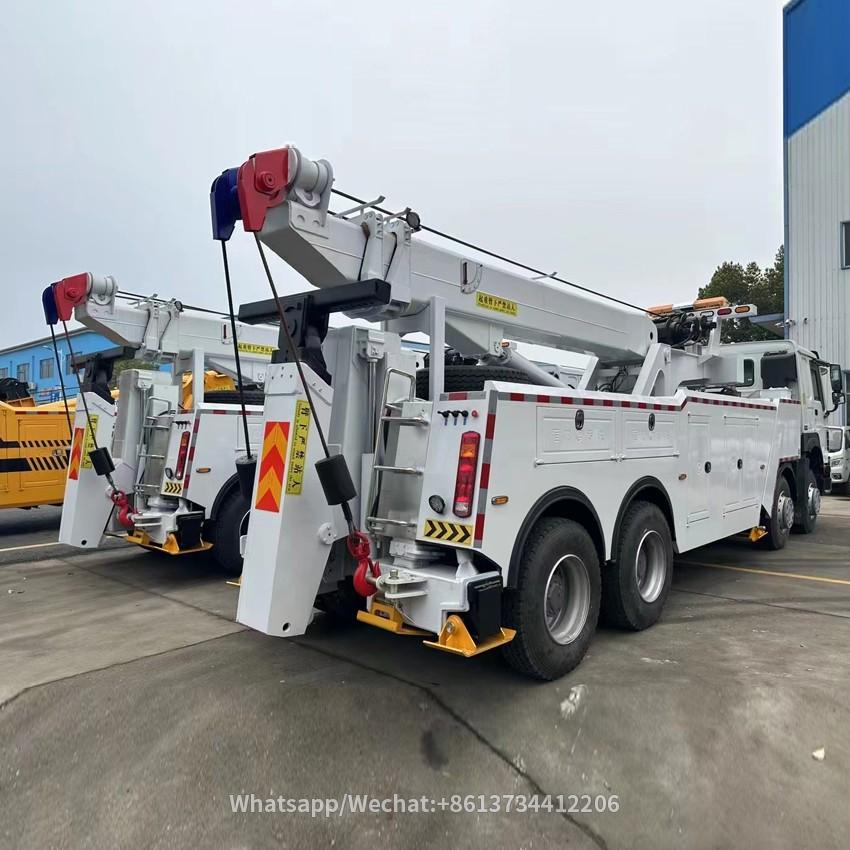

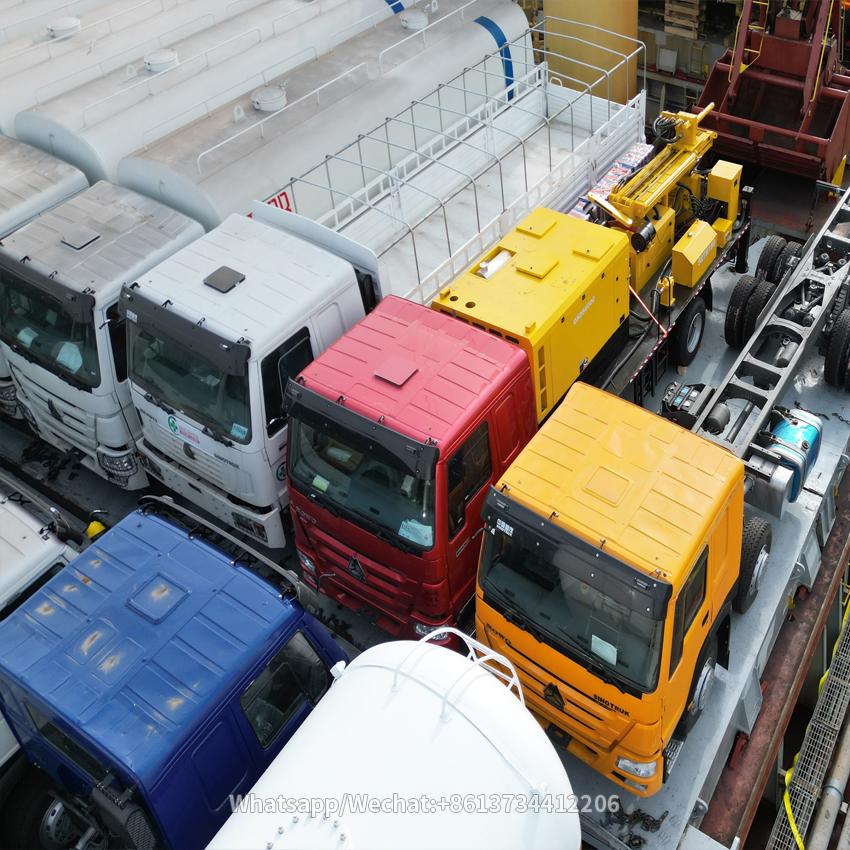

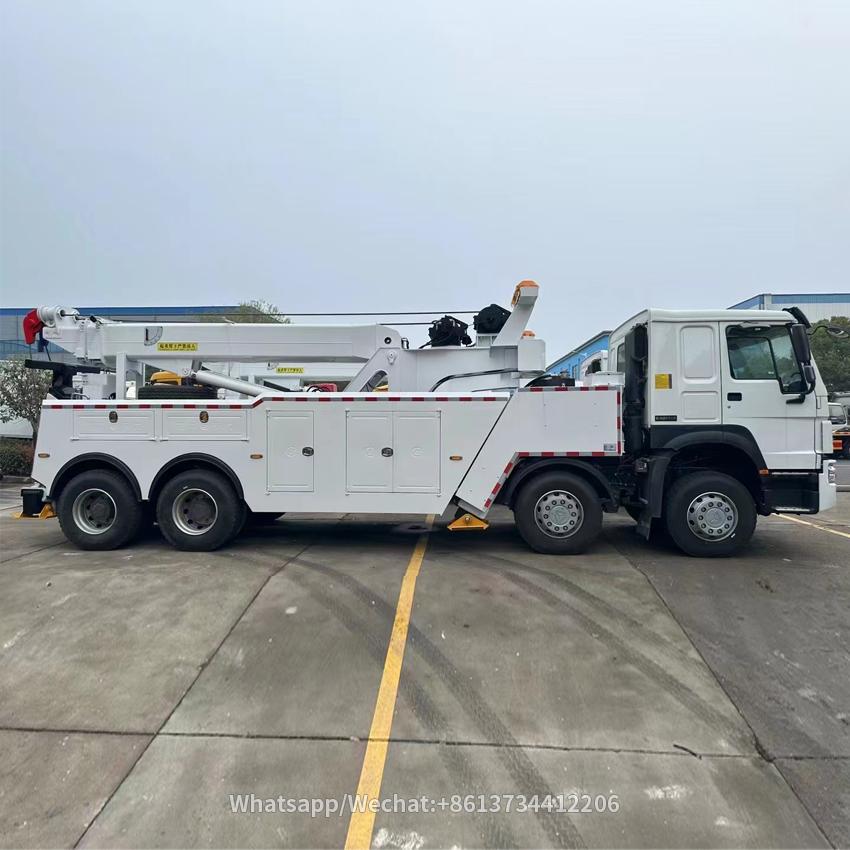

Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck Pictures and Delivery
FAQ for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck
Q: Are you Dealer or Factory for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck ?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck ?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck . is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck , especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck ?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck ?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck ?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck :
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck :
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck and the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck in the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck mileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck :
After the compulsory maintenance of the truck, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck :
“ Howo Truck Export can provide timely service, the Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck trucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”
--Mr.Sady
“ I order Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck from HOWO Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”
--Mr.Aman
If you are interested in Sinotruk Howo 371hp 12 Wheeler 30tons 50tons Tow Wrecker Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
