Description
Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck Function and Introduction:
Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck also known as insulated trucks, refer to closed van transport trucks used to maintain the temperature of frozen or fresh goods.
The body of the Howo refrigerated truck is equipped with insulation materials, and the interior is equipped with cooling devices, heating devices, temperature measuring devices and ventilation devices, etc., with three functions of refrigeration, insulation and heating. Refrigerated trucks include mechanical refrigerated trucks, cold plate refrigerated trucks, liquid nitrogen refrigerated trucks and dry ice refrigerated trucks, among which mechanical refrigerated trucks are the main ones. Their refrigeration system consists of a compressor, condenser, expansion valve and evaporator, and the working principle is steam compression refrigeration. Refrigerated trucks are often used to transport frozen foods, dairy products, vegetables and fruits, vaccines and medicines, etc., so that the health quality of various foods can be maintained.
Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck Structure:
HOWO refrigerated trucks are composed of the running part of a special automobile chassis, an insulated compartment (generally made of polyurethane materials, fiberglass, color steel plates, stainless steel, etc.), a refrigeration unit, a temperature recorder in the compartment and other components. For vehicles with special requirements, such as meat hook trucks, optional parts such as meat hooks, cargo troughs, aluminum alloy rails, and ventilation slots can be added.
Refrigerated truck body manufacturing technology:
1. "Sandwich" board bonding type assembled in pieces. Large domestic refrigerated truck manufacturers all use this technology. Refrigerated trucks produced using this technology have high thermal insulation performance.
2. Injection foaming type assembled in pieces.
3. Injection foaming type for the whole skeleton.
4. Vacuum adsorption type pasting
Classification of refrigerated units:
Refrigerated units are divided into non-independent refrigeration units and independent refrigeration units. Domestic units and imported units, etc. General models use external refrigeration units, and a few micro refrigerated trucks use built-in refrigeration units. For refrigerated trucks with lower temperature requirements, a cold plate (which functions like an evaporator) can be installed inside the truck body.
Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck Specifications
|
Truck Model |
ZZ1257V4647B1 Left/Right hand drive |
||||
|
Total Size |
9800*2496*3733mm |
||||
|
Size of the cargo box |
7000*2300*2000, German technology polyurethane molding in one go, C700 refrigeration machine (Carrier) 400 HP howo refrigerated truck cargo box 7x2.3x2m refrigerated engine C750 cooler tires with the independent engine |
||||
|
Power Take off |
HW50 |
||||
|
Import from Italian |
|||||
|
Approaching angle/Departure angle（°） |
16/18 |
||||
|
Overhang(front/rear) (mm) |
1500/2200 |
||||
|
Wheel base (mm) |
4600 |
||||
|
Max speed（km/h） |
90km |
||||
|
Curb weight（kg） |
9800 |
||||
|
Engine (Steyr technology, made in China) |
Model |
WP12.400E201, 400 horsepower, Euro II. Gearbox: HW19710+HW50 direct-coupled power take-off，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and intercooling, directly injection |
|||
|
Fuel type |
Diesel |
||||
|
Horse Power, max（kw/rpm） |
400HP |
||||
|
Emission |
EURO2 |
||||
|
Fuel tanker capacity（L） |
300 |
||||
|
Transmission |
Model |
HW19710 |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Steering system |
Model |
ZF8118 |
|||
|
Front axle |
VGD95 Drum, Steering with double T-cross section beam,
|
||||
|
Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels ratio 4.8 2*16000KG capacity |
||||
|
Tyre |
1200R20 11 pcs with one spare |
||||
|
Electrical system
|
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HOWO76cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
||||
Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck can make the volume as per customer want, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

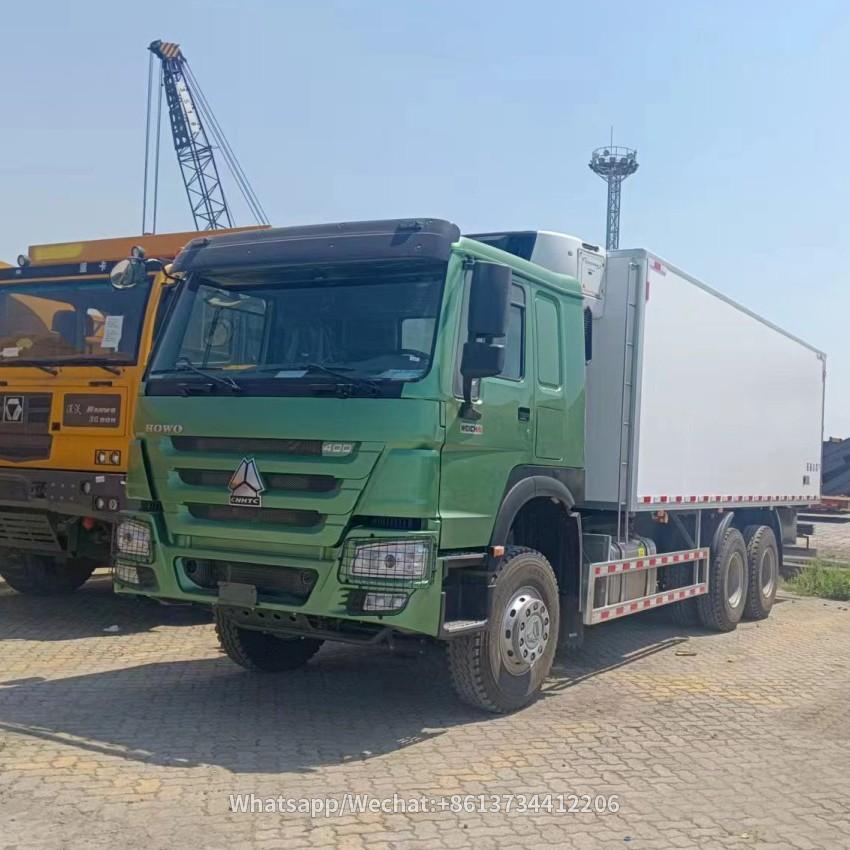

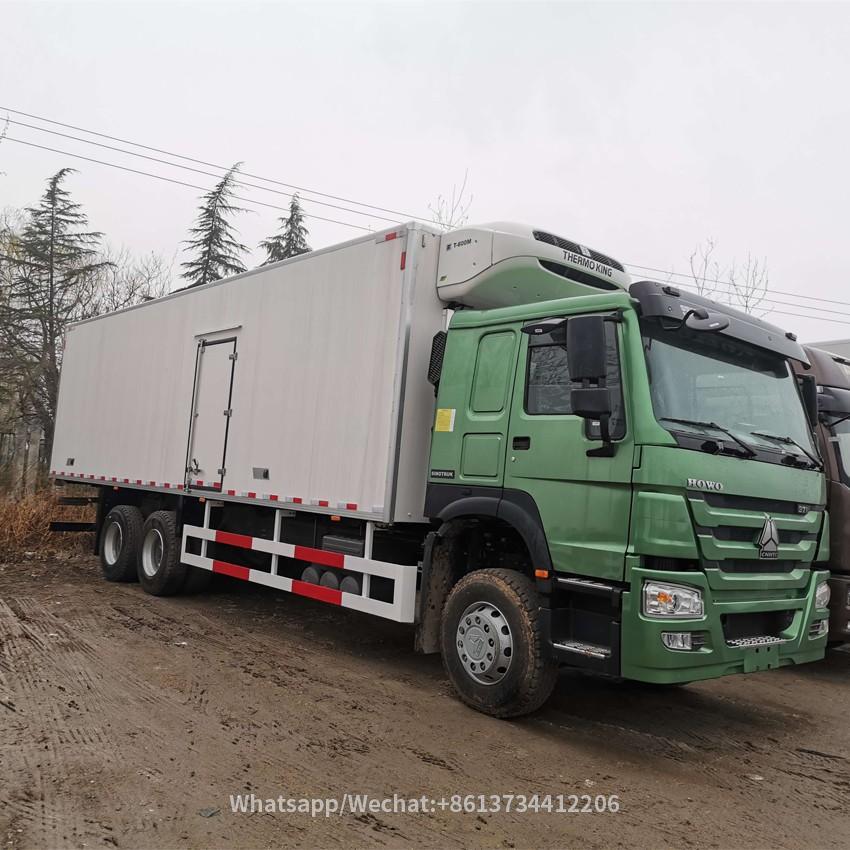

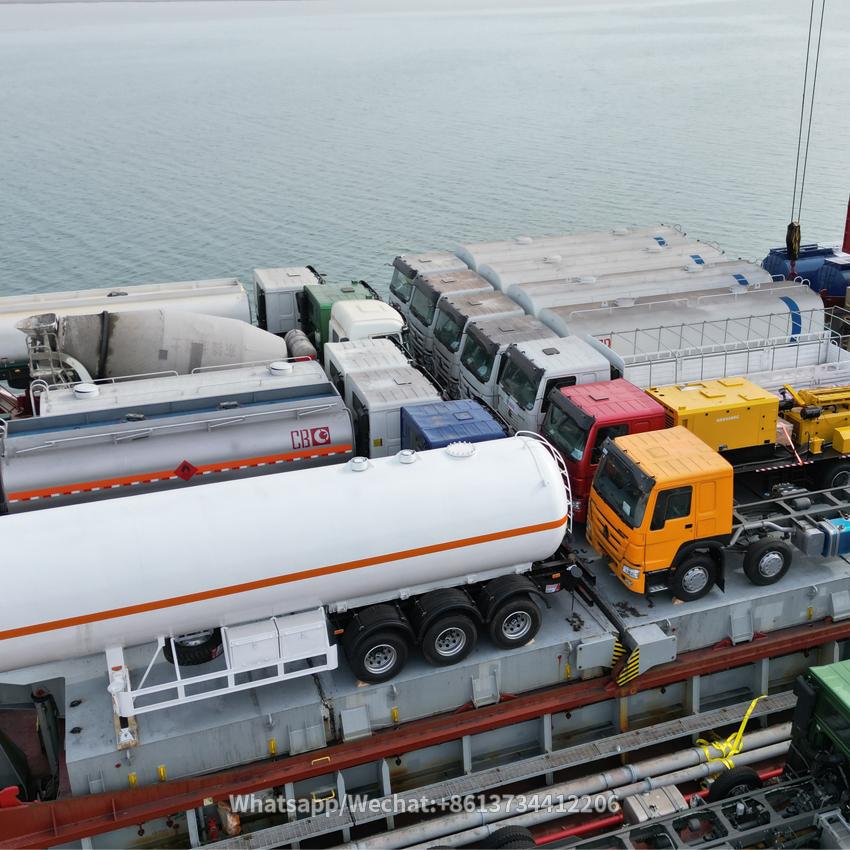

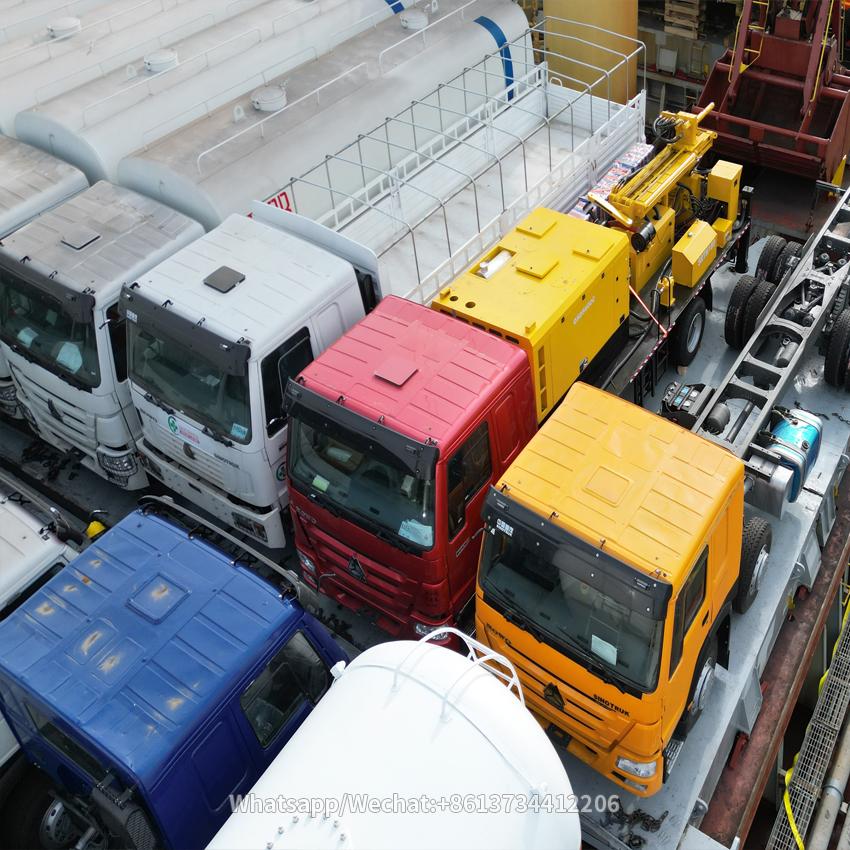

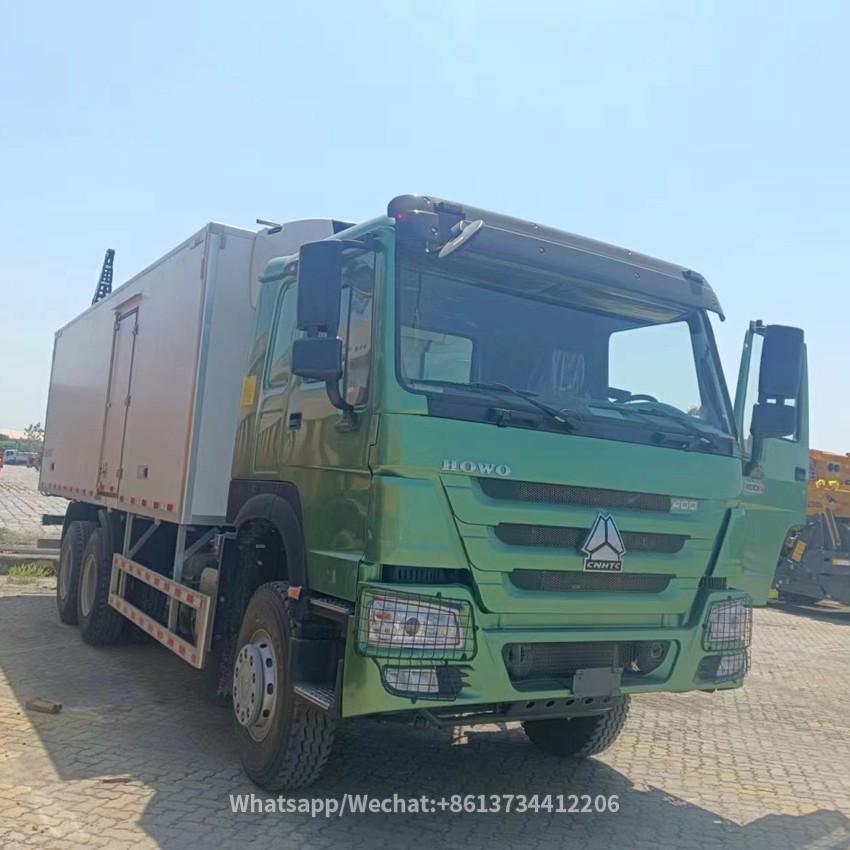

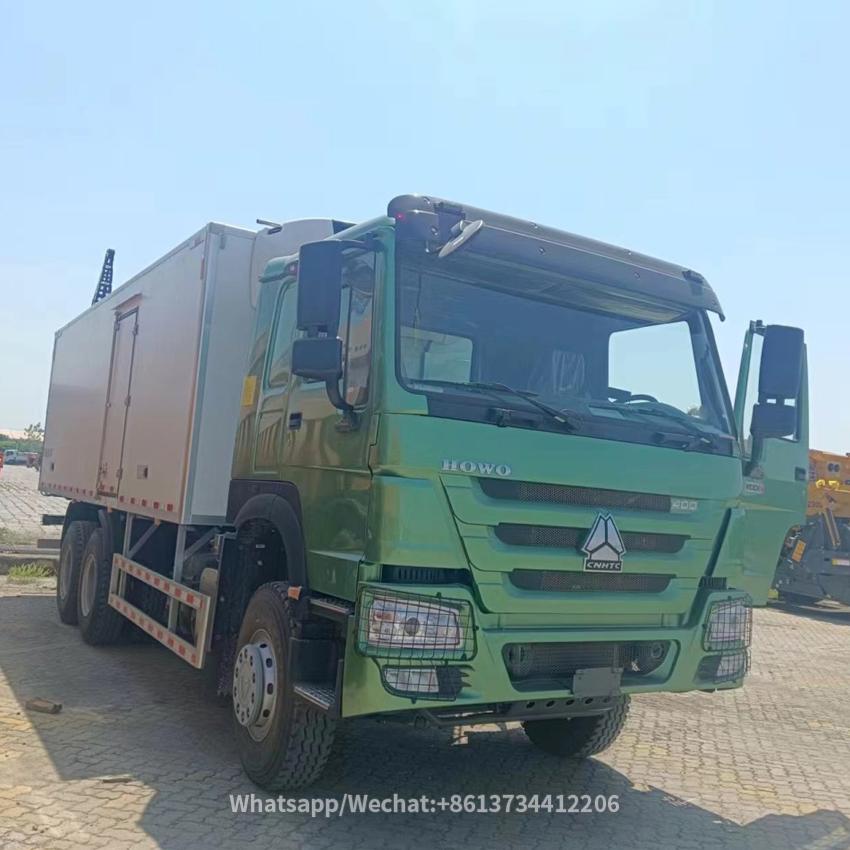

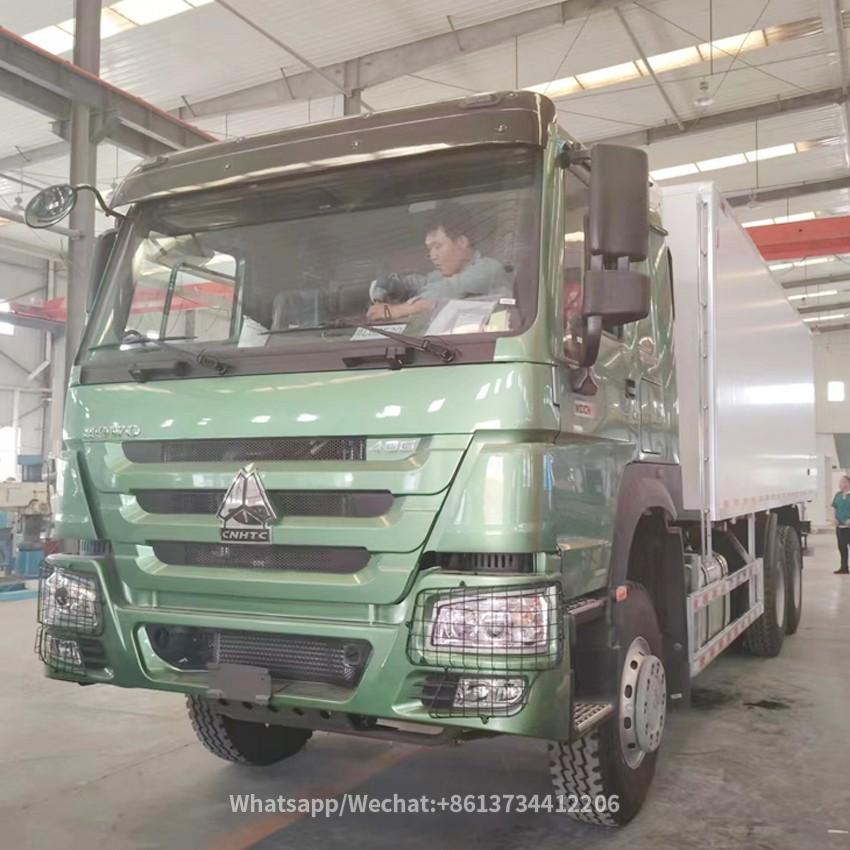

Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck Pictures and Delivery
FAQ for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck
Q: Are you Dealer or Factory for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck:
After the compulsory maintenance of the truck, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck:
“ Howo Truck Export can provide timely service, the Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck trucks already put into use, and all in good condition, i also buy their spare parts quality are good, I will recommend to my friends to buy. ”
--Mr.Sady
“ I order Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck from HOWO Truck Export, its the same one as per my request with top cover and light and rear alarm etc. Trucks good in quality”
--Mr.Aman
If you are interested in Sinotruk Howo 10 Wheeler 6x4 Refrigerator Refrigerated Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
