Description
Sinotruk Sinotruk Howo 371 6X4 dump truck with crane with crane Function and Introduction:
Sinotruk Howo 371 6X4 dump truck with crane ( also called 6x4 Dump HOWO Truck, Sinotruk HOWO, howo Tipper Truck, Howo Dump Truck, Howo Truck Price, Howo Dumper Truck, howo Tipper, 10 wheeler Truck, 10 Wheeler Tipper Truck, 6X4 Dumper Truck, mining dump truck, 30 tons dump truck), has a dump truck cargo box controlled by a hydraulic lifting mechanism, which can be moved or tilted at a certain angle to facilitate unloading by itself or horizontally.
Sinotruk Howo 371 6X4 dump truck with crane is one of the brand for SINOTRUK, and SINOTRUK mainly organizes the development, production and sale of various dump trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
Sinotruk Howo 371 6X4 dump truck with crane Specifications
|
Sinotruk Howo 371 6X4 dump truck with crane |
|||||
|
Truck Model |
ZZ3257N3847A / ZZ3257N3647A |
||||
|
Truck Brand |
SINOTRUK –HOWO |
||||
|
Driving Style |
LHD/RHD |
||||
|
Curb weight |
12290KGS |
||||
|
Loading capacity |
25tons to 35tons |
||||
|
Dimension(Lx W x H)（unloaded）（mm） |
8214x2496x3450 |
||||
|
Cargo body size (L*W*H, mm) (mm) |
4100x2300x1500 |
||||
|
Cargo thickness(mm) |
Bottom:8mm, Side:6mm |
||||
|
Lift type of Carriage |
Middle side |
||||
|
Approaching angle/Departure angle（°） |
19/26 |
||||
|
Overhang(front/rear) (mm) |
1500/1739 |
||||
|
Wheel base (mm) |
3625+1350 |
||||
|
Max speed（km/h） |
75 |
||||
|
Maximum gradeability (%) |
40 |
||||
|
Minimum ground clearance(mm) |
314 |
||||
|
Minimum turning circle (m) |
20 |
||||
|
Curb weight（kg） |
12290 |
||||
|
Loading Weight（kg） |
25000 |
||||
|
Fuel tanker capacity（L） |
300 |
||||
|
Fuel consumption(L/km) |
28L/100 km |
||||
|
Clutch |
Single-plate dry clutch Φ430mm |
||||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
|||
|
Horse Power, max（kw/rpm） |
371HP，247/2200 |
||||
|
Emission |
EURO II |
||||
|
Model |
WD615.47，water-cooled，four strokes，6 cylinders in line with water cooling , directly injection |
||||
|
Bore |
126mm |
||||
|
Stroke |
130mm |
||||
|
Compression ratio |
29.8hp/l |
||||
|
Specific fuel consumption |
195g/kwh |
||||
|
Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels
|
||||
|
Auxiliary brake |
Engine exhaust brake |
||||
|
Steering system
|
Model |
ZF8118 hydraulic steering with power assistance |
|||
|
Front axle |
VGD95 , Steering with double T-cross section beam |
||||
|
Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
||||
|
Color |
Optional (White ,Red ,yellow ) |
||||
|
Tyre |
12.00R20 11pcs |
||||
|
Electrical system
|
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HOWO76 cab, single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
||||
|
Articulated Crane |
SQ10ZK3Q XCMG 10-ton folding arm crane, three-section telescopic arm, arm length 9.75 meters, double-sided manual flip outriggers, hydraulic oil tank heightening bracket installed at the back of the crane |
||||
Sinotruk Howo 371 6X4 dump truck with crane is mainly used to transport bulk materials (such as sand, soil, ore, etc.) or overall materials. It is mainly used in mines, construction sites, etc. It can be divided into special dump truck, ordinary tipper truck and mining tipper truck.
Sinotruk Howo 371 6X4 dump truck with crane is the most popular dump trucks used a lot in Africa bad road condition.

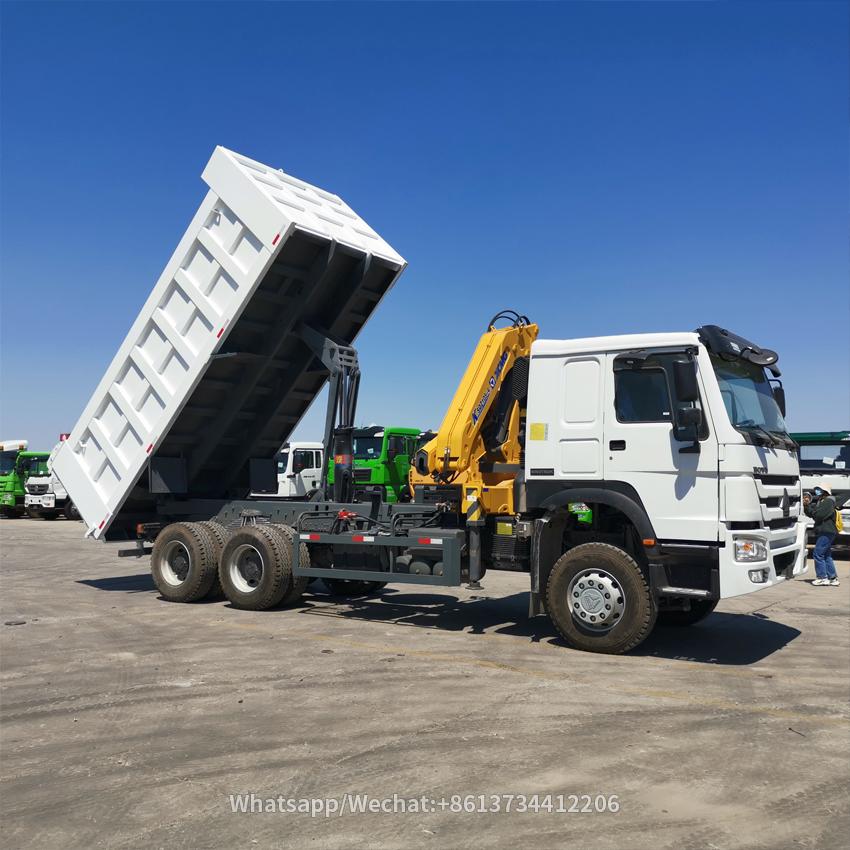

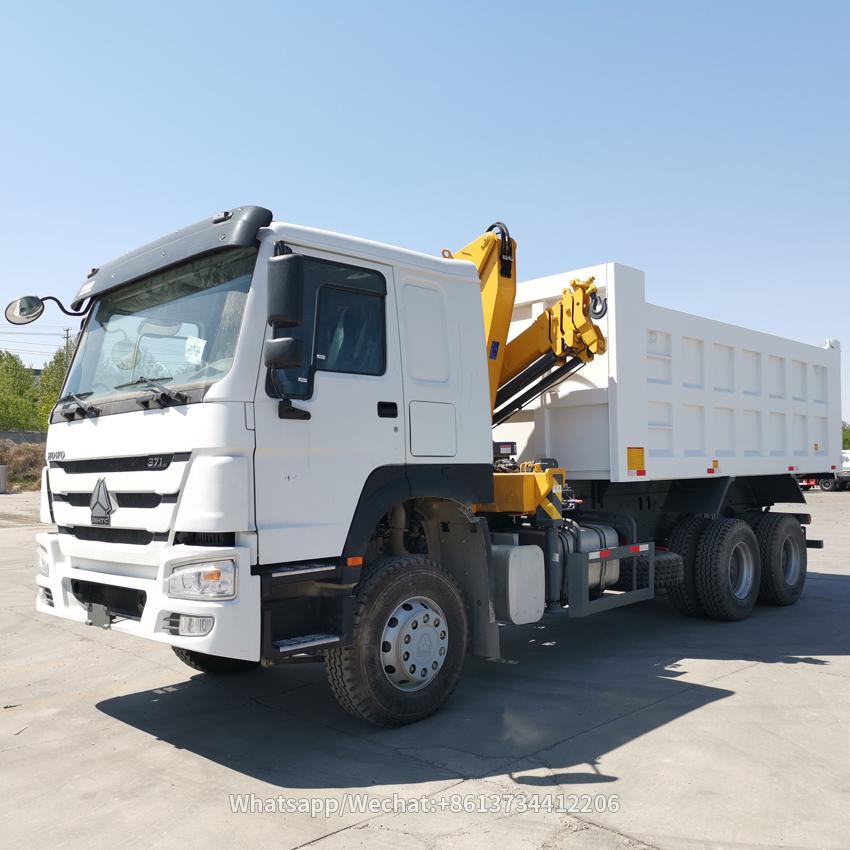

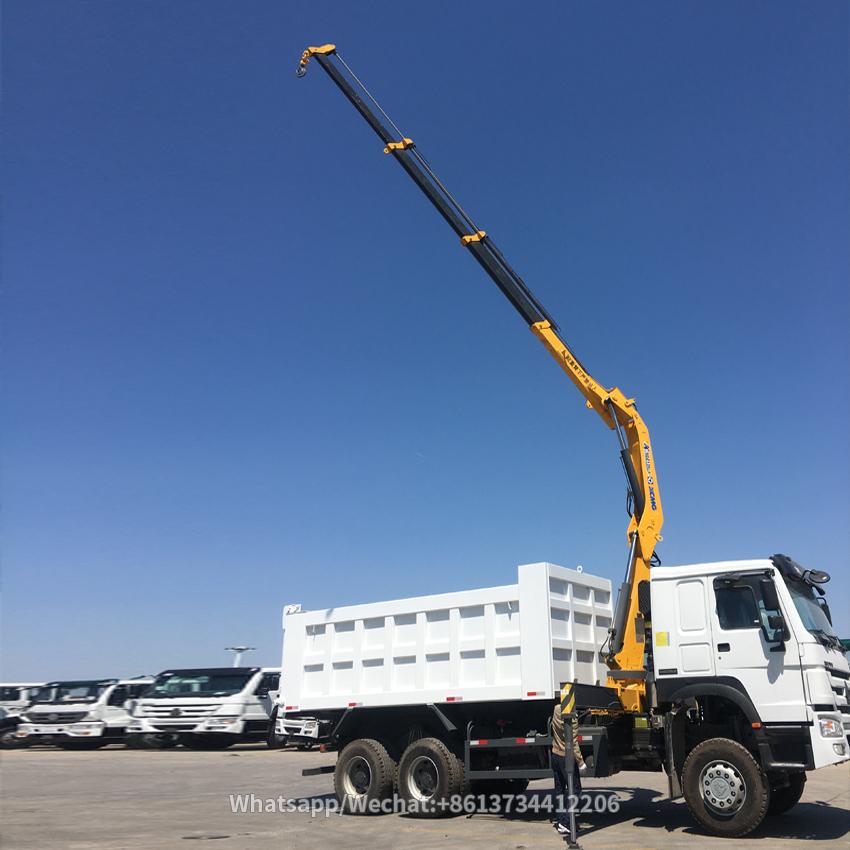

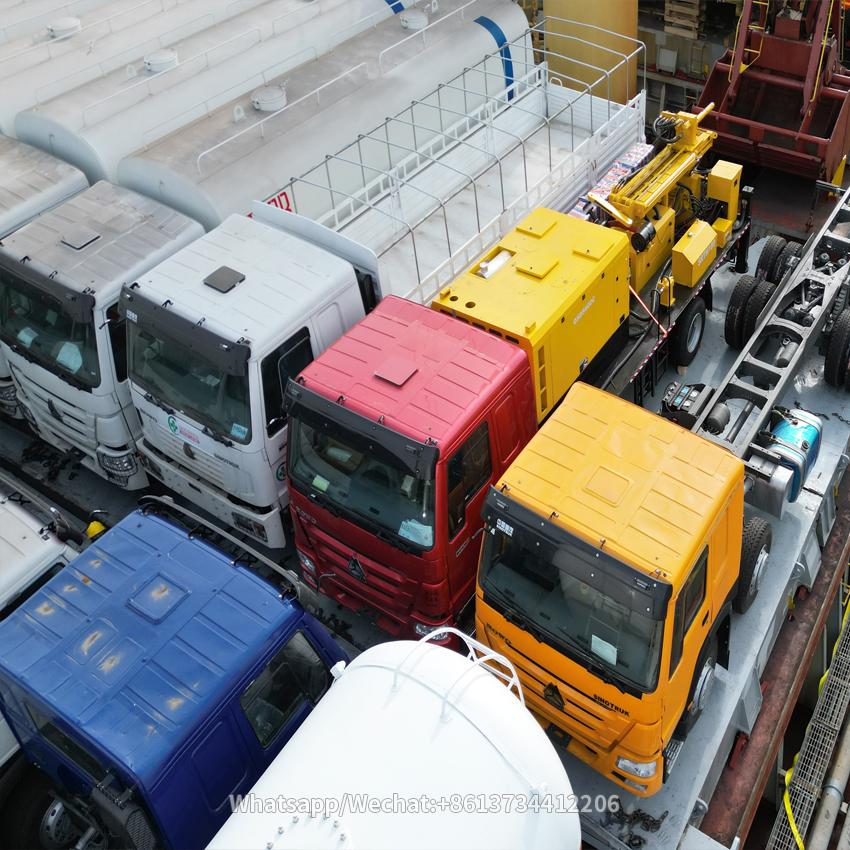

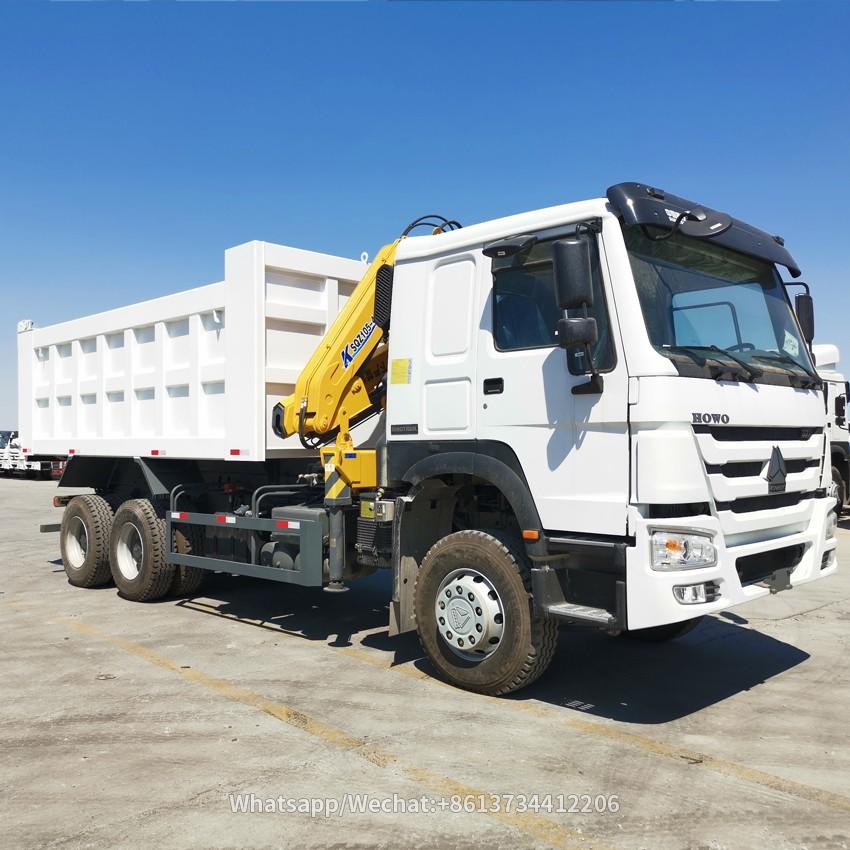

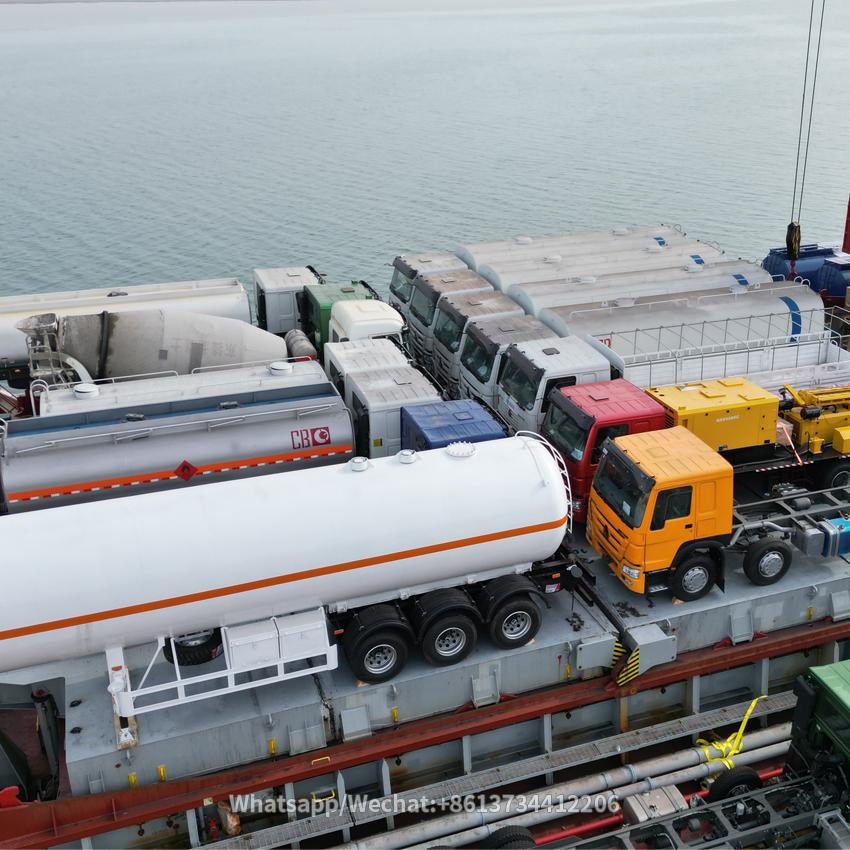

Sinotruk Howo 371 6X4 dump truck with crane Pictures and Delivery
FAQ for Sinotruk Howo 371 6X4 dump truck with crane
Q: Are you Dealer or Factory for Sinotruk Howo 371 6X4 dump truck with crane?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruk Howo 371 6X4 dump truck with crane?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruk Howo 371 6X4 dump truck with crane by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruk Howo 371 6X4 dump truck with crane quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruk Howo 371 6X4 dump truck with crane. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruk Howo 371 6X4 dump truck with crane, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruk Howo 371 6X4 dump truck with crane?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Sinotruk Howo 371 6X4 dump truck with crane?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Sinotruk Howo 371 6X4 dump truck with crane?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Sinotruk Howo 371 6X4 dump truck with crane:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Sinotruk Howo 371 6X4 dump truck with crane:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruk Howo 371 6X4 dump truck with craneand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruk Howo 371 6X4 dump truck with cranein the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Sinotruk Howo 371 6X4 dump truck with cranemileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Sinotruk Howo 371 6X4 dump truck with crane:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Sinotruk Howo 371 6X4 dump truck with crane:
“ Howo Truck Export can provide timely service, the Sinotruk Howo 371 6X4 dump truck with cranetrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order Sinotruk Howo 371 6X4 dump truck with craneand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in Sinotruk Howo 371 6X4 dump truck with crane of our company, don’t hesitate to contact me, the best service is waiting for you !
